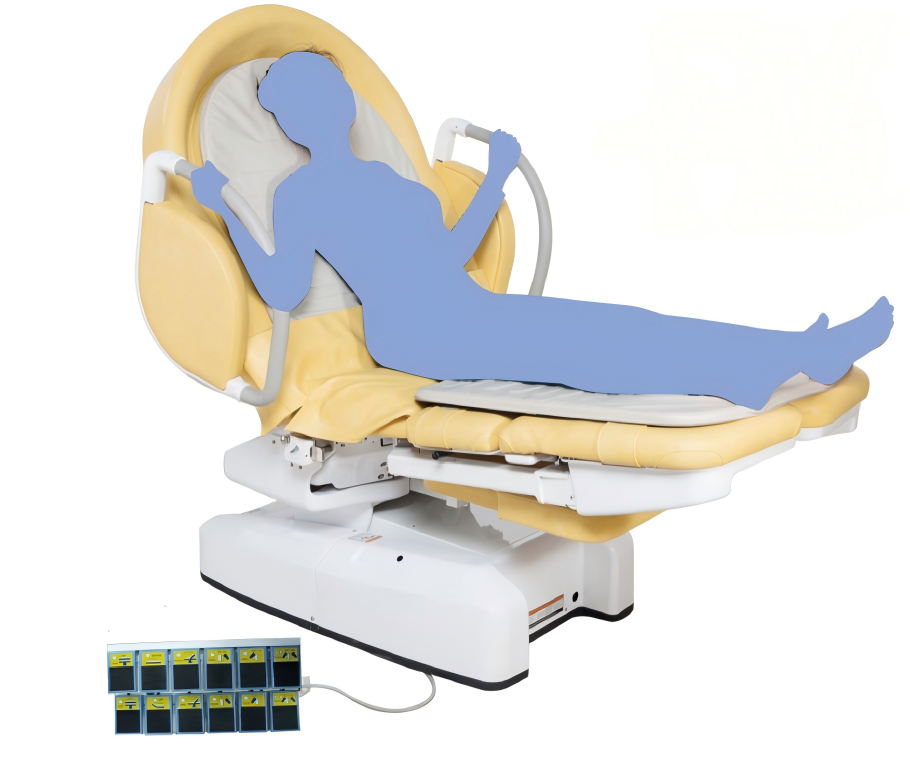

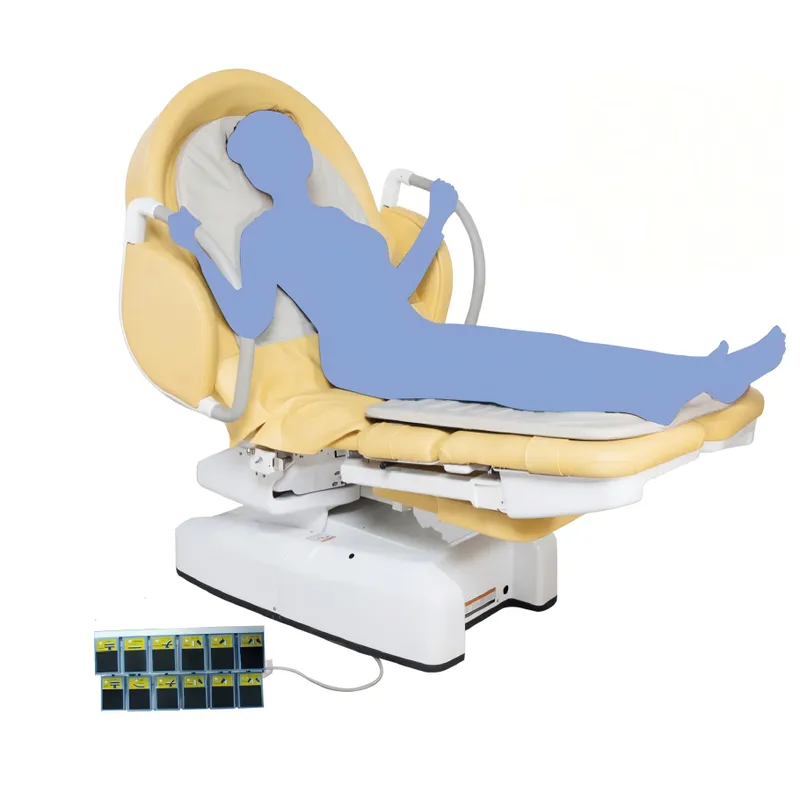

FY-3003 (Luxury) Electric Operating Table Obstetrics and Gynecology Table

FY-3003 (Luxury) Electric Operating Table Obstetrics and Gynecology Table

Description

Features:

  • The gynecological delivery bed has a variety of medical functions, including obstetrics and gynecology delivery, gynecological surgery, diagnosis and examination, including emergency caesarean section. It uses special materials, and every detail is humanized. It is a necessary equipment for obstetrics and gynecology, urology and other departments of the hospital to perform women's delivery, abortion, examination and other operations.
  • The table is divided into a backboard, a seat board, and a leg board. Through operation, the backboard can be turned up and down and the bed can be tilted back and forth, so that the doctor can get a more ideal surgical position and the patient can get a more comfortable sitting position.
  • The main body is made of 45# steel, the exterior parts are made of steel spraying, the base cover is made of high-quality ABS, and anti-glare treatment is done; the power system uses a linear motor, which has low noise, stable performance and high positioning accuracy.


Specification:

PROJECTPARAMETERS
Bed size2058×1080×550+10 mm
Minimum height550±10mm
Elevation range360±10 mm (electric)
Net weight305kg
Power supplyAC 230V 2.5A 50Hz
Backboard folding angleUpward fold: 60°±2° (electric)
Downward fold: 10°±2° (electric)
Seat board folding angleUpward fold: 25°±2° (electric)
Downward fold: 25°±2° (electric)
Foot support plate deflection angleRight: 0°~33°±3°(electric)
Left: 0°~33°±3°(electric)
Foot support plate folding angle0.~90°±2°(manual gas spring)
Leg plate folding angle75°±2°(manual)
Side armrest rotation angle180°(manual)
Pallet support plate translation stroke150±3 mm(manual)
Pallet support plate rotation angle90°±3°(manual)
Rotating pallet support plate translation stroke60+5 mm(manual)
