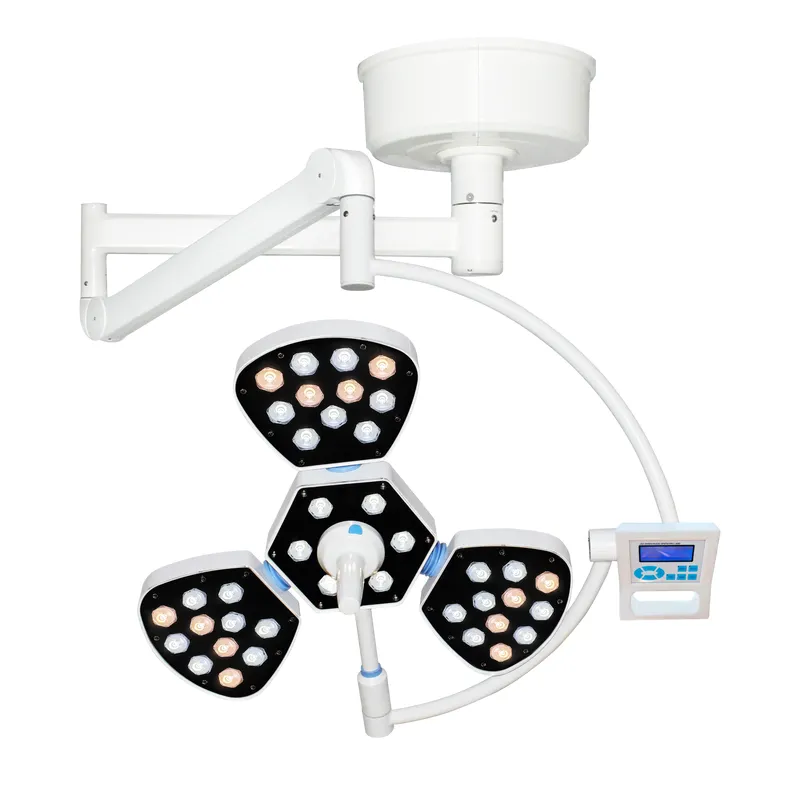

FY-3B Ceiling-mounted LED Surgical Light
Advanced LED Illumination for Precision Surgery
Key Features
1. True Cold Light Source
• Equipped with imported German OSRAM LED chips, energy-saving with service life ≥80,000hrs; surgeon head temperature rise＜1℃.• Free from infrared and ultraviolet radiation, prevents wound overheat & tissue damage caused by halogen lamps to accelerate wound healing without radiation pollution.• Constant color temperature with no luminous decay; soft natural sunlight-like lighting, anti-glare during long-time operation.
2. Excellent Shadowless Performance
• Unique petal multi-point lamp head ensures uniform spot illuminance, perfect shadowless effect even when partially blocked during surgery.• Arm rotation radius ≥182cm; lamp head can be lowered nearly vertical to ground for multi-angle flexible lighting.
3. Superior Deep Depth Illumination
• Computer-aided modular optical design concentrates LED beams for over 1200mm deep lighting, maximum central illuminance up to 160,000Lux. Adjustable 3700K~5000K color temperature restores real tissue color to meet all kinds of surgical lighting demands.
4. Advanced Intelligent Control System
• LCD button control for power on/off, brightness and color temperature adjustment to match varied clinical requirements.• Digital memory automatically saves preferred lighting parameters for direct use after restart.• Independent multi-circuit design ensures single damaged LED will not affect normal operation of the whole lamp.
5. Universal Alloy Suspension Arm System
• Rotatable main arm made of high-performance new alloy material.• Imported balance spring assembly enables lightweight operation, precise positioning and wide adjustable range.• Built-in fatigue correction and positioning fine-tuning device for easy calibration after long-term use.
6. Laminar Flow Optimized Ultra-thin Lamp Head
• Germany-designed petal slim structure with max thickness ≤10cm for excellent laminar airflow performance in clean operating rooms.• Detachable central handle withstands 134℃ high-temperature autoclave sterilization for convenient sterile adjustment.
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-D3, Ceiling-mounted Single Head |
| Illuminance | 30,000–160,000Lux Adjustable |
| LED Quantity | 39pcs |
| Light Source | Imported OSRAM LED |
| LED Lifespan | ≥80,000 Hours |
| Color Temperature | 3700K~5000K Adjustable |
| Ra Index | 85~98 Adjustable |
| Focus Depth | 50–180cm |
| Spot Diameter | 120–300mm Adjustable |
| Brightness Regulation | 1%~100% Stepless Adjustable |
| Power Consumption | 39W |
| Operator Head Temp Rise | ＜1℃ |
| Input Voltage | AC100-240V 50/60HZ |
| Warranty | 2 Years |
