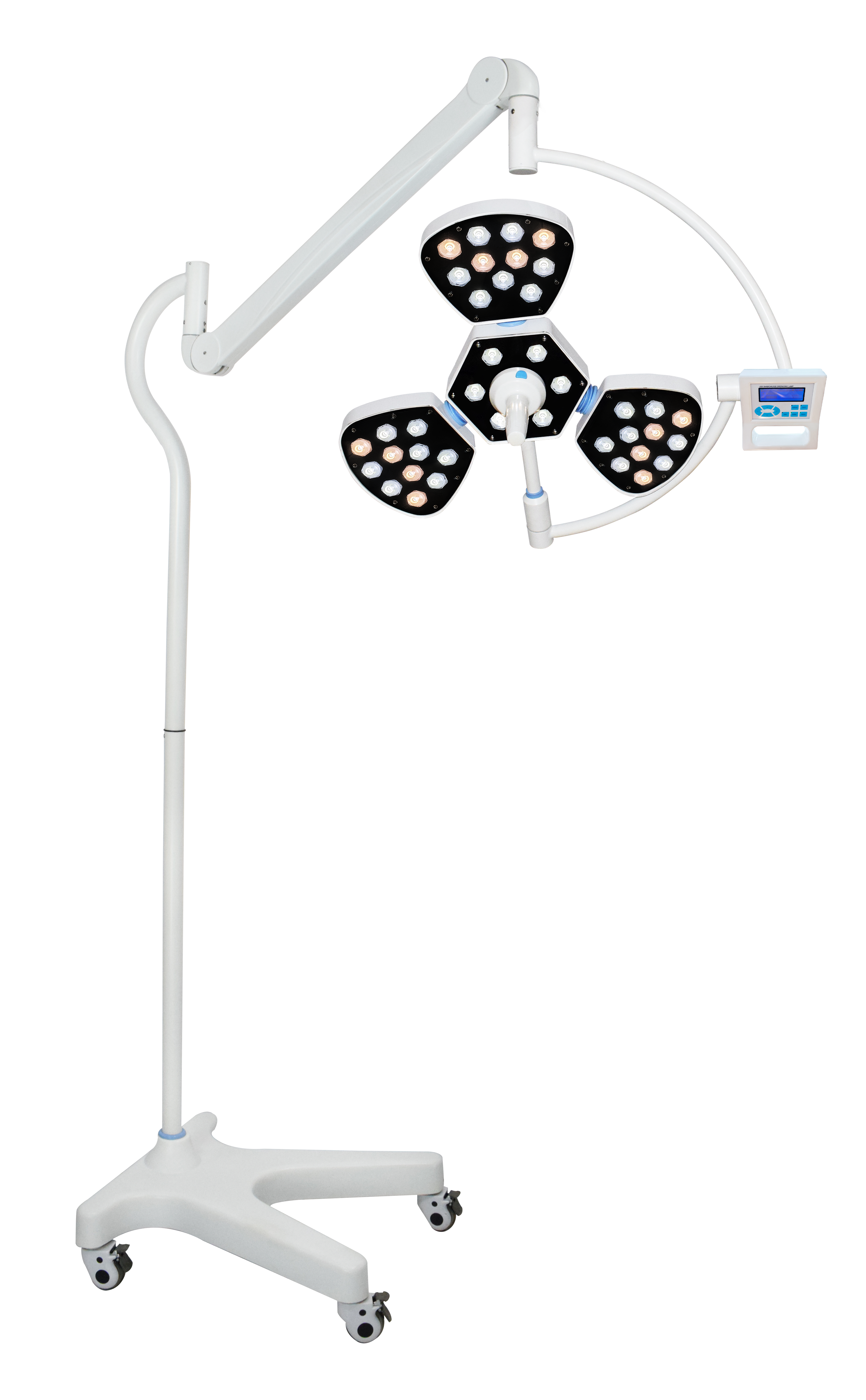

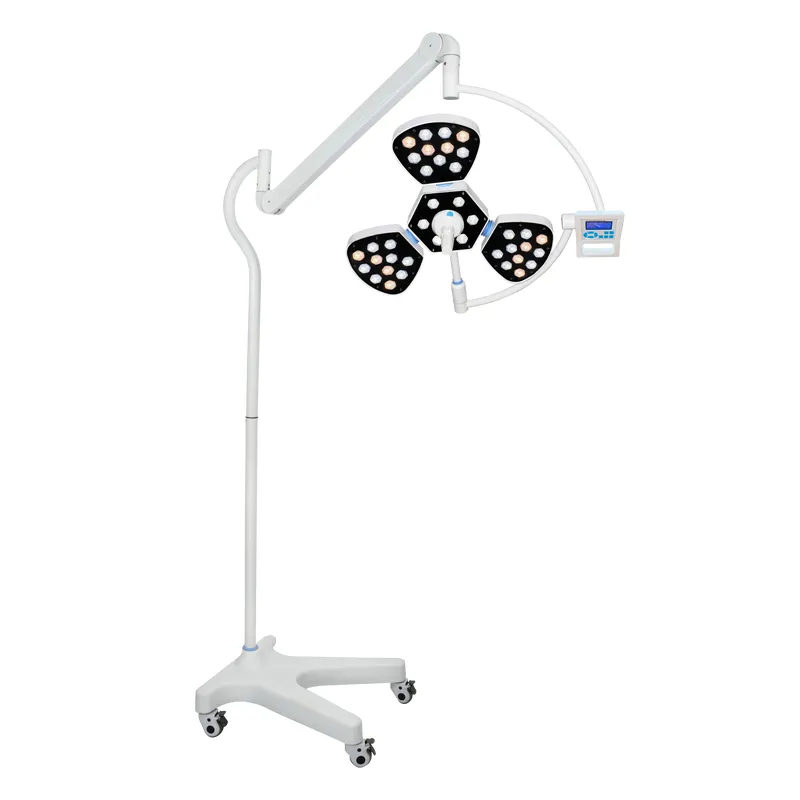

FY-3BS Mobile LED Surgical Light
Advanced LED Illumination for Precision Surgery
Key Features
1. True Cold Light Source
• Equipped with imported German OSRAM LED chips, energy-saving with service lifespan ≥80,000hrs; operator head temperature rise＜1℃.• Free of infrared and ultraviolet radiation, avoiding wound overheat and tissue damage from traditional halogen lamps to accelerate wound recovery with zero radiation pollution.• Stable constant color temperature without luminous attenuation; soft sunlight-like lighting, anti-glare for long-time operation.
2. Outstanding Shadowless Performance
• Unique petal multi-point lamp head ensures even spot illumination, maintaining perfect shadowless effect even with partial obstruction during surgery.• Arm rotating radius ≥182cm; lamp head can drop close to vertical ground to realize multi-angle flexible lighting.
3. Excellent Deep Illumination
• Computer-aided modular optical design concentrates LED beams to realize over 1200mm deep lighting; max central illuminance up to 160,000Lux. Adjustable 3700K~5000K color temperature restores real tissue color to fit all kinds of clinical operations.
4. Intelligent Control System
• LCD button control for power switch, brightness and color temperature adjustment to meet diversified surgical lighting demands.• Built-in memory function automatically saves customized lighting parameters for direct use on next startup.• Independent multi-circuit design: single broken LED will not affect overall lamp normal work.
5. Premium Balance Suspension Arm
• Imported spring balance assembly, lightweight structure for smooth operation & accurate positioning with wide moving range.• Equipped with fatigue correction and positioning fine-tuning device for easy calibration after long-term usage.
6. Mobile Base with Lockable Silent Casters
• Four-legged base fitted with high-grade silent universal casters with independent brake on each wheel; flexible moving, stable locking, quiet and safe positioning.
7. Laminar Flow Ultra-thin Petal Lamp Head
• German optimized petal slim design, maximum thickness ≤10cm for superior laminar airflow performance in clean operating rooms.• Detachable central handle resistant to 134℃ high-temperature autoclave sterilization for convenient sterile adjustment.
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-3BS, Mobile Floor-mounted |
| Adjustable Illuminance | 30,000–160,000Lux |
| LED Quantity | 39pcs |
| Light Source | Imported OSRAM LED |
| LED Lifespan | ≥80,000Hrs |
| Color Temperature | 3700K~5000K Adjustable |
| Ra Index | 85~98 Adjustable |
| Focus Depth | 50–180cm |
| Spot Diameter | 120–300mm Adjustable |
| Brightness Adjustment | 1%~100% Stepless Adjustable |
| Power Consumption | 39W |
| Operator Head Temp Rise | ＜1℃ |
| Power Input | AC100-240V 50/60HZ |
| Warranty | 2 Years |
