FY-500500A LED Double Dome Surgical Light
Premium Dual-Head LED Surgical Lamp for Clinical Applications

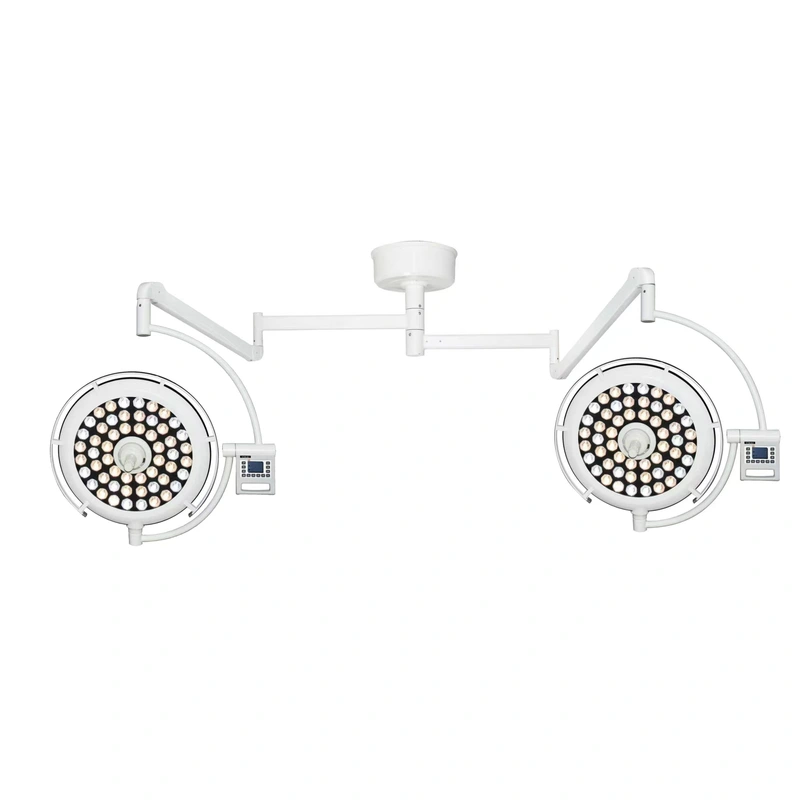

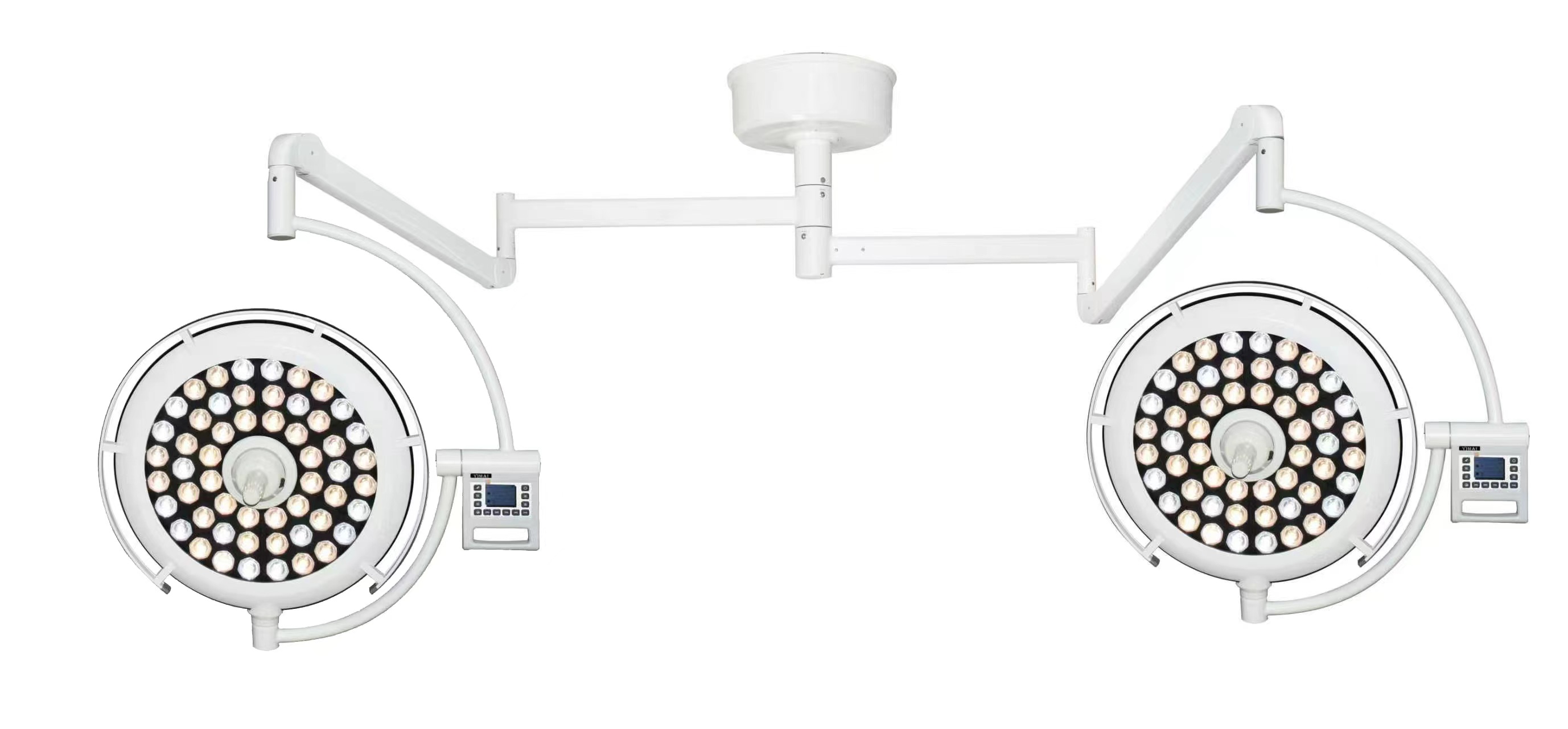

The FY-500500A dual-head LED surgical light features ultra-thin lamp heads made of durable aluminum alloy. Equipped with imported German Osram LEDs and dedicated dia-cut optical lenses for each bulb, it delivers even, high-quality illumination. The ergonomic grip-ring and optimized control system enable easy operation and flexible positioning, ideal for various surgical environments.
Key Features
Dual ultra-thin lamp heads with aluminum alloy housing, sturdy and lightweight
Dia-cut optical lens for every LED bulb, ensuring uniform light output
Practical grip-ring on lamp heads for convenient angle and position adjustment
Upgraded control system for simple and reliable operation
Manual focus adjustment via central rotating handle
Adjustable brightness and color temperature to meet clinical demands
Ultra-low temperature rise below 1℃, safe for patients and staff
Long LED service life over 80,000 hours, energy-saving and stable
Technical Specifications
| Parameter | Specification |
|---|
| Lamp Head Design | Dual Ultra-Thin Lamp Heads |
| Lamp Head Housing Material | Aluminum Alloy |
| Single Lamp Head Thickness | ≤8cm |
| Single Lamp Head Diameter | 500mm |
| Horizontal Lamp Head Reach | 800+900+500mm |
| Light Source | LED, Lifespan ≥80,000hrs |
| LED Bulbs | 54pcs per head, Imported German Osram |
| Optical Lens | Dia-cut design for each individual bulb |
| Brightness | 40,000-160,000Lux, adjustable |
| Lighting Focus Range | 120~300mm, manually adjustable |
| Color Temperature | 3700K ~ 5000K, adjustable |
| Ra Index | 85～97 |
| Lighting Depth | 500-1800mm |
| Area Temperature Rise | ＜1℃ |
| Single Head Power Consumption | 54W |
| Power Input | AC100-240V 50/60HZ, with switching power supply |
| Warranty | 2 Years |
