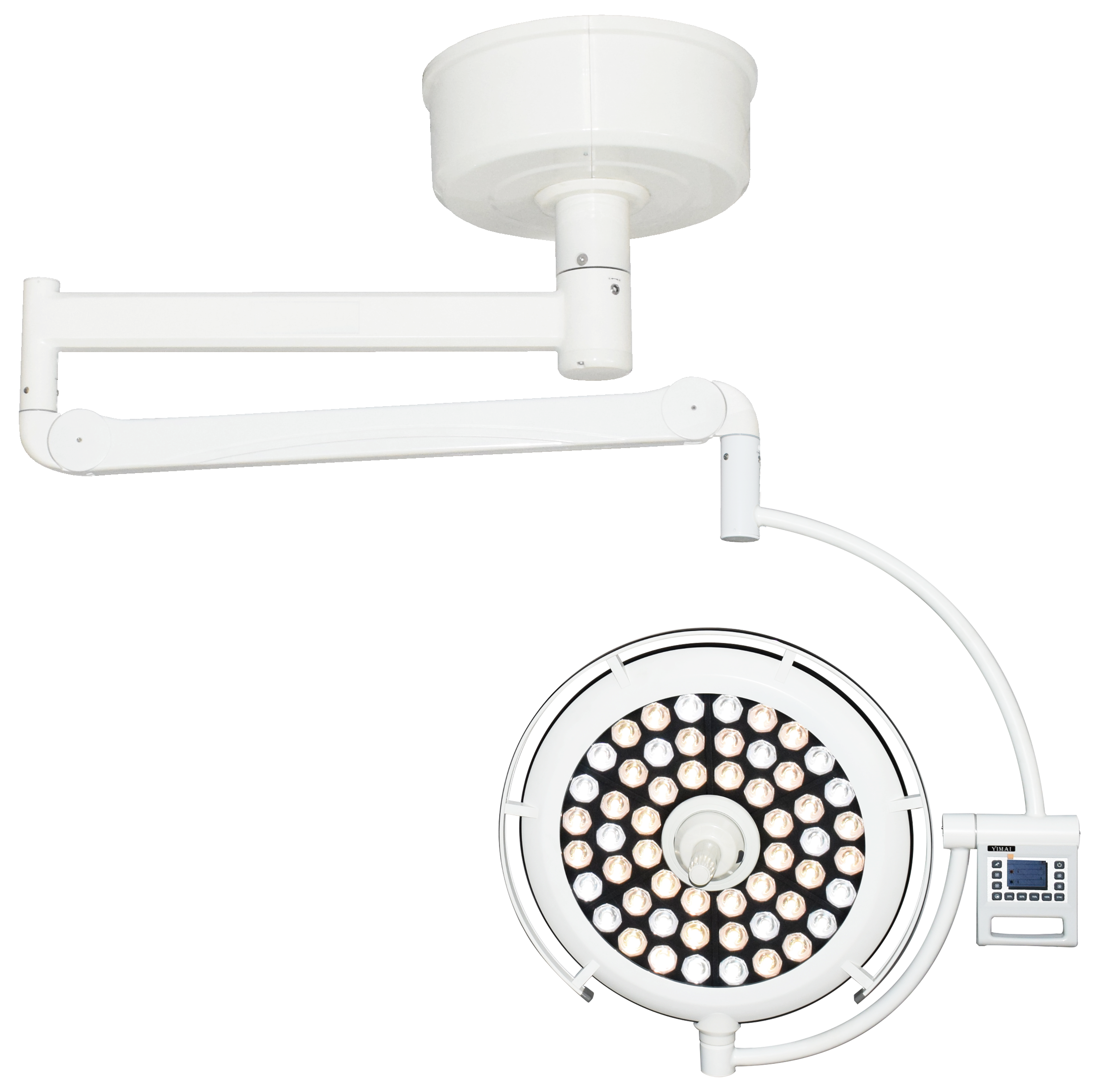

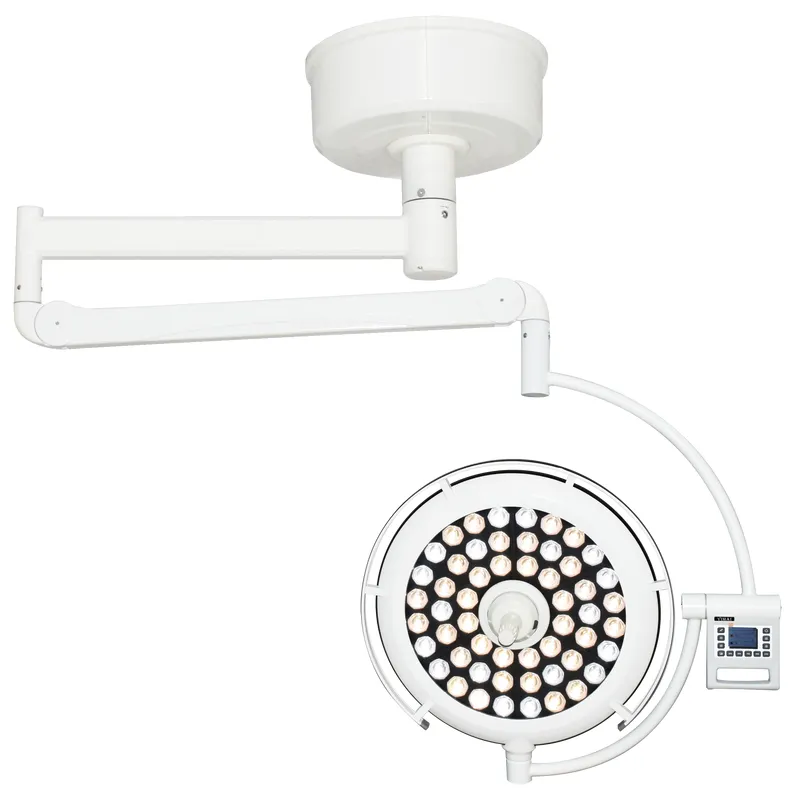

FY-500A LED Single Dome Surgical Light
Cost-effective Single Head LED Surgical Lamp for Operating Room
The FY-500A single-head LED surgical light is equipped with ultra-thin aluminum alloy lamp head and imported German Osram LED lamps. Independent dia-cut optical lens is configured for each lamp bead to realize uniform shadowless illumination. Ergonomic grip-ring and optimized control structure facilitate flexible position adjustment and manual focusing, perfectly matching general surgery, outpatient and minor operation lighting demands.
Key Features
Ultra-thin lamp head with high-strength aluminum alloy housing
Individual Dia-cut optical lens above every LED for even light distribution
Practical grip-ring on lamp head for easy angle shifting
Upgraded control layout for convenient daily operation
Central rotary handle to manually adjust focus range
Adjustable brightness and color temperature for diversified clinical scenes
Ultra-low local temperature rise＜1℃ to prevent wound dehydration
German Osram LED source, service life ≥80,000 hours, energy efficient
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-500A |
| Lamp Head Style | Single Ultra-Thin Lamp Head |
| Housing Material | Aluminum Alloy |
| Lamp Head Thickness | ≤8cm |
| Lamp Head Diameter | 500mm |
| Horizontal Arm Reach | 800+900+500mm |
| Light Source | LED, Lifespan ≥80,000hrs |
| LED Bulb | 54pcs, Imported German Osram |
| Optical Lens | Dia-cut design for each bulb |
| Brightness | 40,000-160,000Lux, adjustable |
| Focus Range | 120~300mm, manually adjustable |
| Color Temperature | 3700K ~ 5000K, adjustable |
| Ra Index | 85～97 |
| Lighting Depth | 500-1800mm |
| Area Temperature Rise | ＜1℃ |
| Power Consumption | 54W |
| Power Input | AC100-240V 50/60HZ, switching power supply |
| Warranty | 2 Years |
