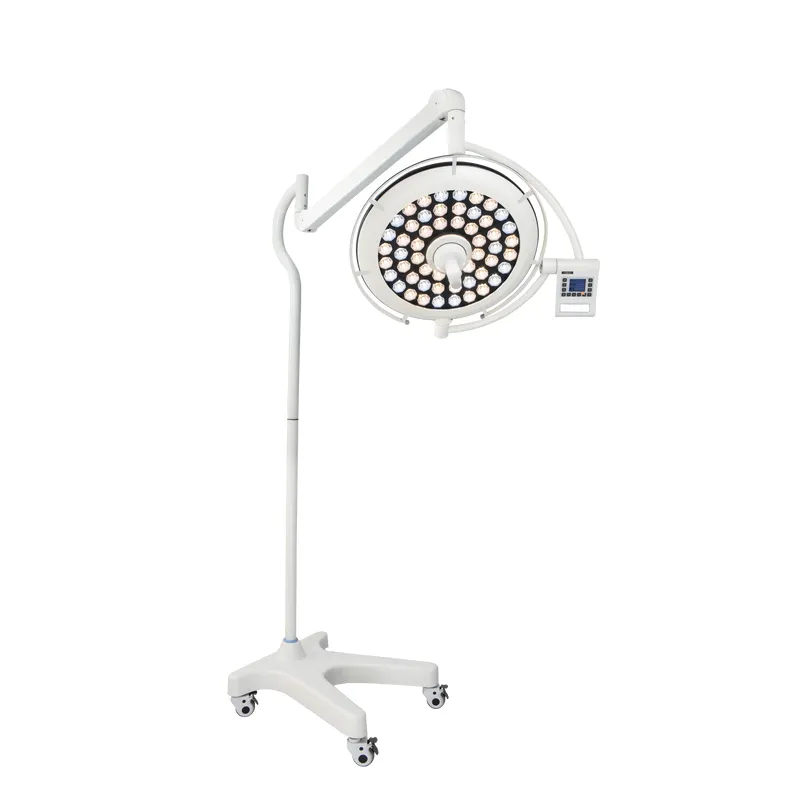

FY-500AS LED Single Dome Surgical Light
Compact & Efficient LED Surgical Lamp for Precision Illumination
The FY-500AS single‑head LED surgical light features an ultra‑thin aluminum alloy lamp head and premium German Osram LEDs. Equipped with dia‑cut optical lenses for each bulb, it delivers bright, uniform, and shadowless illumination. The ergonomic grip‑ring and optimized control system enable easy operation and flexible positioning, ideal for clinics, operating rooms, and outpatient settings.
Key Features
Ultra‑thin Lamp Head: Aluminum alloy housing, ≤8cm thickness, lightweight yet durable
Dia‑cut Optical Lens: Individual precision lens over each LED for uniform light distribution
Grip‑ring Design: Built‑in grip‑ring for quick, safe adjustment of lamp head angle and position
Optimized Control: User‑friendly control system for reliable daily use
Manual Focus: Central rotating handle for precise focus adjustment (120~300mm)
Adjustable Light: Stepless brightness (40,000–160,000Lux) and color temperature (3700K~5000K)
Low Heat Emission: Area temperature rise ＜1℃, protecting wounds and reducing fatigue
Long Lifespan: German Osram LEDs, lifespan ≥80,000 hours, energy‑saving and stable
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-500AS |
| Lamp Head Design | Single Ultra‑Thin Lamp Head |
| Housing Material | Aluminum Alloy |
| Lamp Head Thickness | ≤8cm |
| Lamp Head Diameter | 500mm |
| Horizontal Reach | 800+900+500mm |
| Light Source | LED, Lifespan ≥80,000hrs |
| LED Bulbs | 54pcs (Imported German Osram) |
| Optical Lens | Dia‑cut design per bulb |
| Brightness | 40,000–160,000Lux, adjustable |
| Focus Range | 120~300mm, manual adjustable |
| Color Temperature | 3700K~5000K, adjustable |
| Ra Index | 85～97 |
| Lighting Depth | 500–1800mm |
| Area Temp Rise | ＜1℃ |
| Power Consumption | 54W |
| Power Input | AC100–240V 50/60Hz, switching power supply |
| Warranty | 2 Years |
