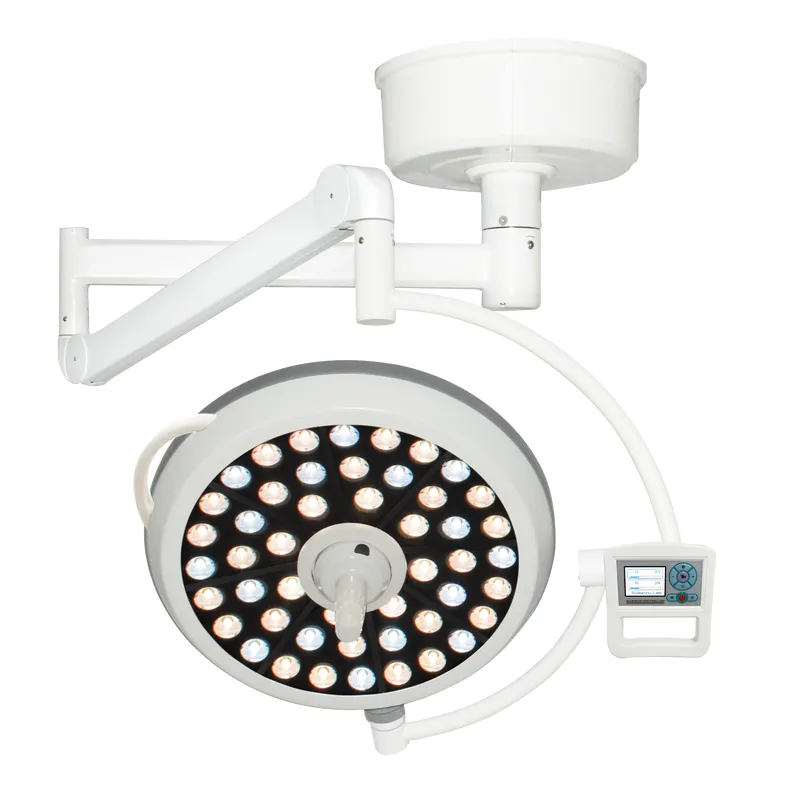

FY-500B Ceiling-mounted Single Head LED Surgical Light
Economical Ceiling Fixed Regular LED Operating Lamp for Outpatient & Minor Surgery
The FY-500B is a cost-effective ceiling-mounted single-head surgical light with regular structure and aluminum alloy housing. It provides reliable adjustable shadow-free lighting, ideal for outpatient clinics, minor operating rooms and examination departments.
Key Features
Ceiling-mounted installation to save ground space of operating room
Regular standard lamp head with aluminum alloy housing for good heat dissipation
Manual focus adjustment via central rotating handle
Stepless adjustable brightness and color temperature to match different clinical demands
Low operative field temperature rise＜1℃ to avoid wound overheating
Long-life LED source ≥80,000 working hours, energy-saving and stable performance
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-500B (Ceiling-mounted) |
| Mounting Type | Ceiling-mounted, Single Regular Lamp Head |
| Housing Material | Aluminum Alloy |
| Lamp Head Thickness | ≤15cm |
| Lamp Head Diameter | 500mm |
| Horizontal Lamp Head Reach | 800+900+500mm |
| Light Source | LED, Lifespan ≥80,000hrs |
| LED Bulb Quantity | 40pcs |
| Brightness | 40,000-160,000Lux, adjustable |
| Focus Range | 120~300mm, manually adjustable |
| Color Temperature | 3700K ~ 5000K, adjustable |
| Ra Index | 85～95 |
| Lighting Depth | 500-1800mm |
| Area Temperature Rise | ＜1℃ |
| Power Consumption | 40W |
| Power Input | AC100-240V 50/60HZ, with switching power supply |
| Warranty | 2 Years |
