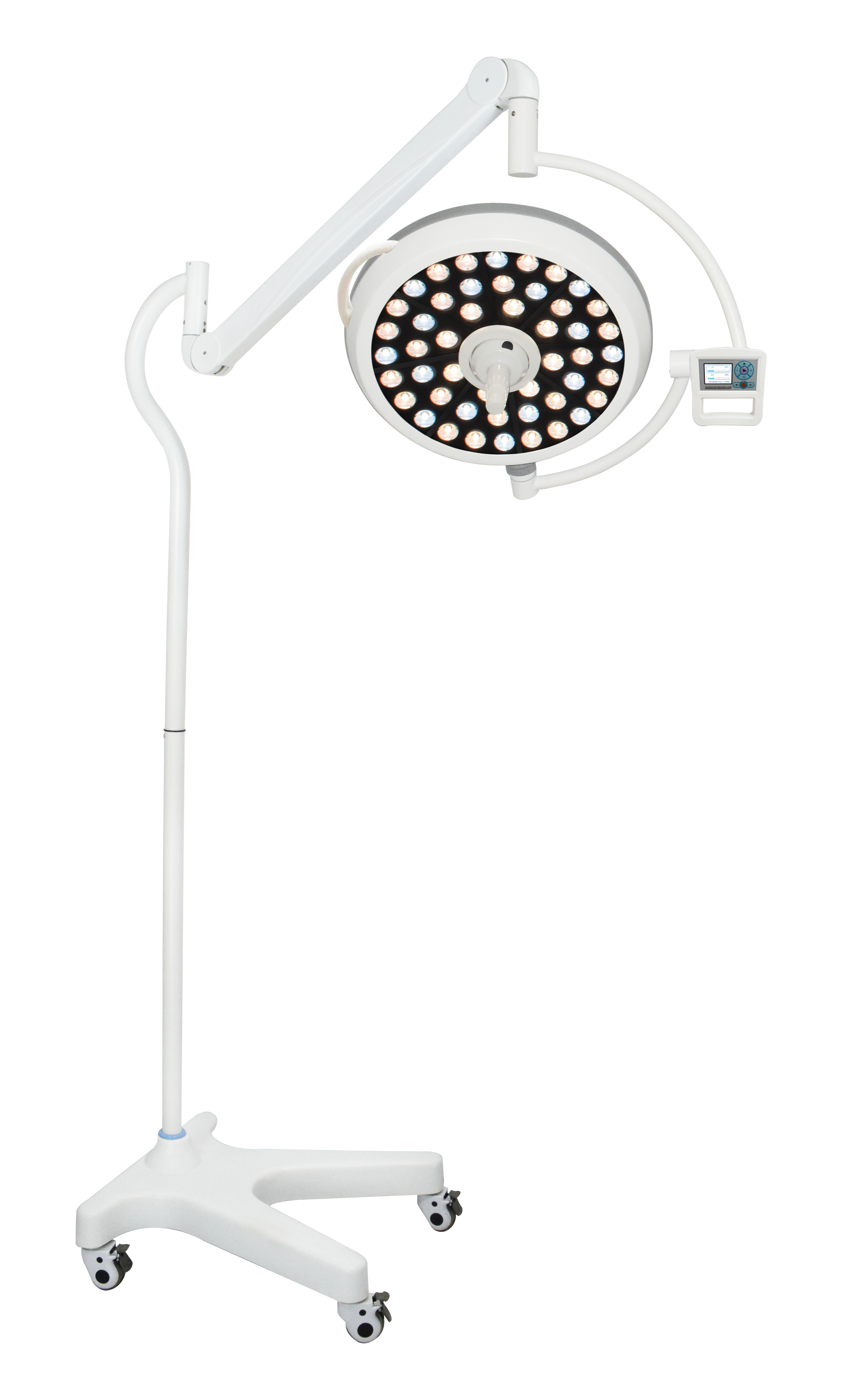

FY-500BS Mobile Single-head LED Surgical Light
Standard Mobile Floor Type LED Operating Lamp
The FY-500BS is a cost-effective mobile single-head surgical lamp with floor stand and casters, easy to transfer between examination rooms and operating theatres. Adopting standard regular lamp head and aluminum alloy housing, it delivers stable adjustable shadow-free lighting for minor surgeries and outpatient procedures.
Key Features
Mobile floor-standing design with rolling casters for flexible relocation
Regular standard lamp head, thickness ≤15cm, sturdy aluminum alloy housing
Manual focus adjustment via central rotating handle
Adjustable brightness and color temperature to fit various clinical needs
Ultra-low operative field temperature rise＜1℃ to protect wound tissue
Long service-life LED source ≥80,000 working hours
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-500BS (Mobile Type) |
| Structure | Single Regular Lamp Head, Mobile Floor Stand |
| Housing Material | Aluminum Alloy |
| Lamp Head Thickness | ≤15cm |
| Lamp Head Diameter | 500mm |
| Horizontal Lamp Head Reach | 800+900+500mm |
| Light Source | LED, Lifespan ≥80,000hrs |
| LED Bulb Quantity | 40pcs |
| Brightness | 40,000-160,000Lux, adjustable |
| Focus Range | 120~300mm, manually adjustable |
| Color Temperature | 3700K ~ 5000K, adjustable |
| Ra Index | 85～95 |
| Lighting Depth | 500-1800mm |
| Area Temperature Rise | ＜1℃ |
| Power Consumption | 40W |
| Power Input | AC100-240V 50/60HZ, with switching power supply |
| Warranty | 2 Years |
