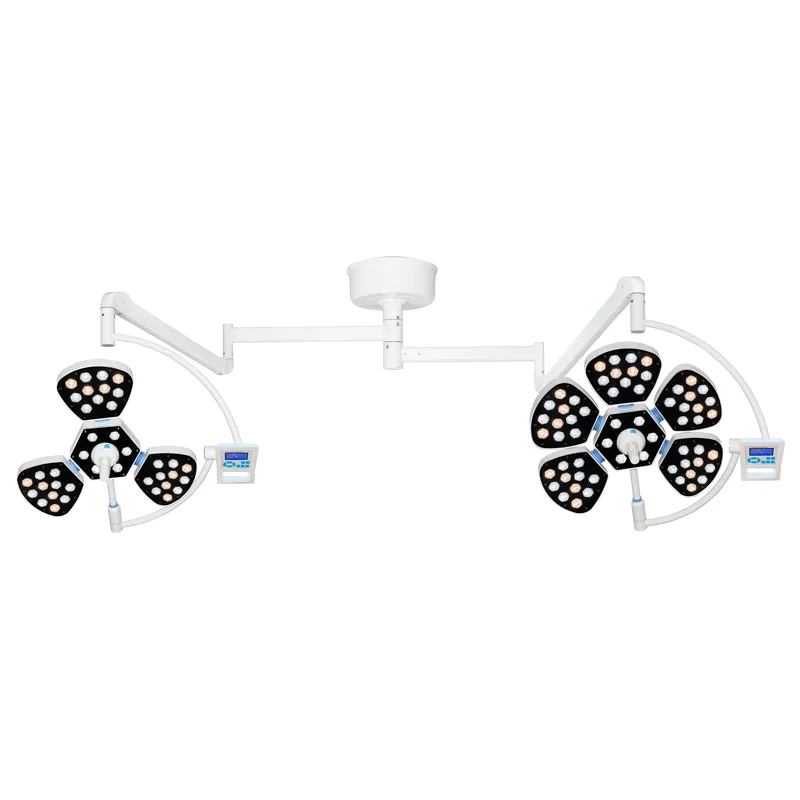

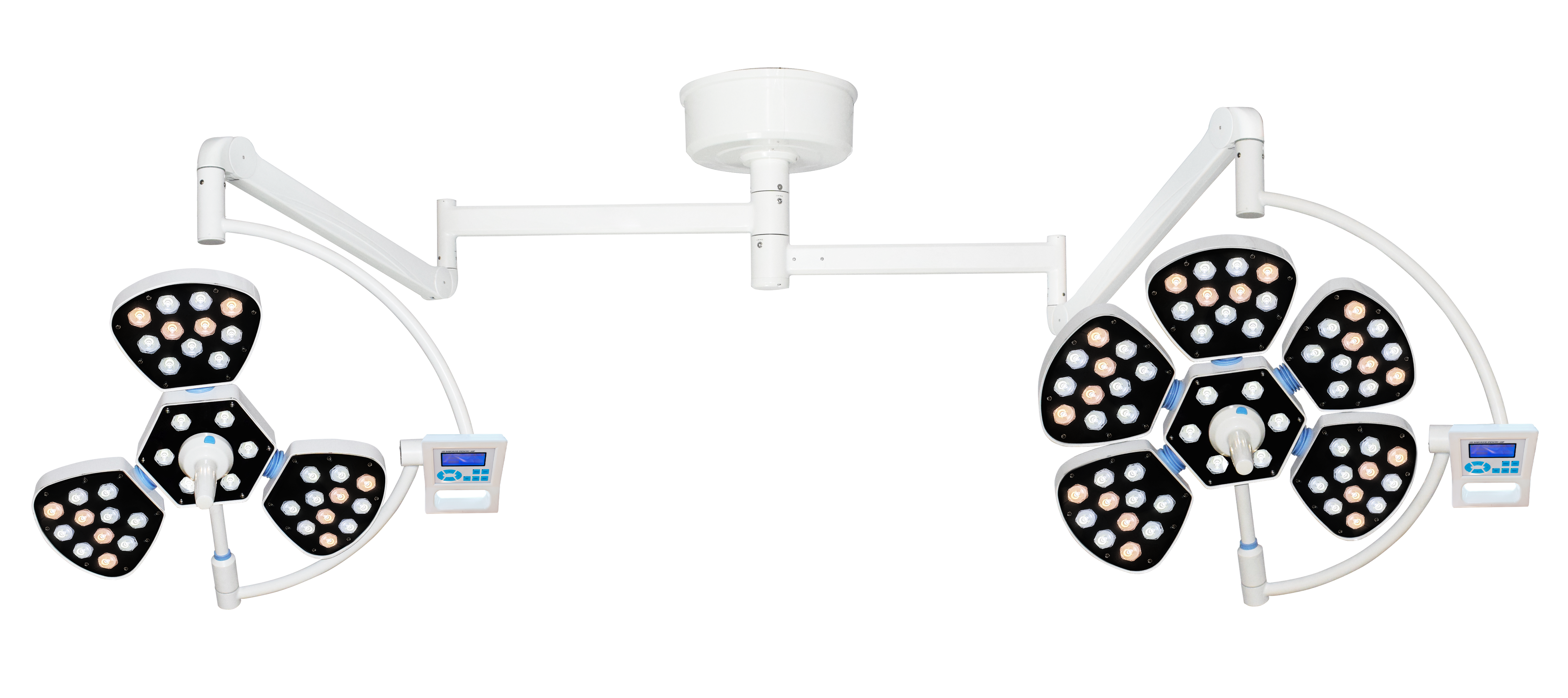

FY-5+3B Ceiling-mounted LED Surgical Light
Advanced LED Illumination for Precision Surgery
Key Features
• True Cold Light SourceAdopts imported German Osram LED, energy-saving with service life ≥80,000hrs; operator head temperature rise＜1℃. No infrared & ultraviolet radiation, avoids wound overheat and tissue damage to accelerate wound healing. Stable constant color temperature without light decay, soft natural sunlight-like lighting.
• Excellent Shadowless PerformanceUnique petal multi-point lamp head design for even spot illuminance, perfect anti-shadow effect even with partial lamp blocking. Lamp arm rotating radius ≥182cm, lamp head adjustable close to vertical ground for multi-angle lighting.
• Superior Deep Depth IlluminationComputer modular optical design concentrates multi-beam LED light for over 1200mm deep lighting; max central illuminance up to 160,000Lux. Tunable 3700K~5000K color temperature restores authentic tissue color for all types of surgeries.
• Intelligent LCD Control SystemButton-type LCD panel to switch power, adjust brightness and color temperature; built-in digital memory saves preferred lighting parameters automatically. Independent separated circuit design ensures single LED breakdown will not affect overall lighting.
• Flexible Universal Suspension StructureAlloy-made rotating arm with imported balancing spring parts, lightweight, smooth operation and precise positioning; equipped with fatigue correction & positioning fine-tuning device for long-term stable use.
• Laminar Flow Optimized Ultra-thin Lamp HeadGermany-designed petal ultra-slim structure with max thickness ≤10cm for good laminar airflow. Central detachable sterilizable handle resistant to 134℃ high-temperature autoclaving for easy positioning.
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-3+5B, Ceiling-mounted |
| Lamp Head Diameter | D3 |
| Illuminance | 30,000–160,000Lux Adjustable |
| LED Quantity | 39pcs |
| Light Source | Imported OSRAM LED |
| LED Lifespan | ≥80,000 Hours |
| Color Temperature | 3700K~5000K Adjustable |
| Color Rendering Ra | 85~98 Adjustable |
| Focus Depth | 50~180cm |
| Spot Diameter | 120~300mm |
| Brightness Regulation | 1%~100% stepless adjustable |
| Total Power | 39W |
| Operator Head Temp Rise | ＜1℃ |
| Input Voltage | AC100-240V 50/60HZ |
