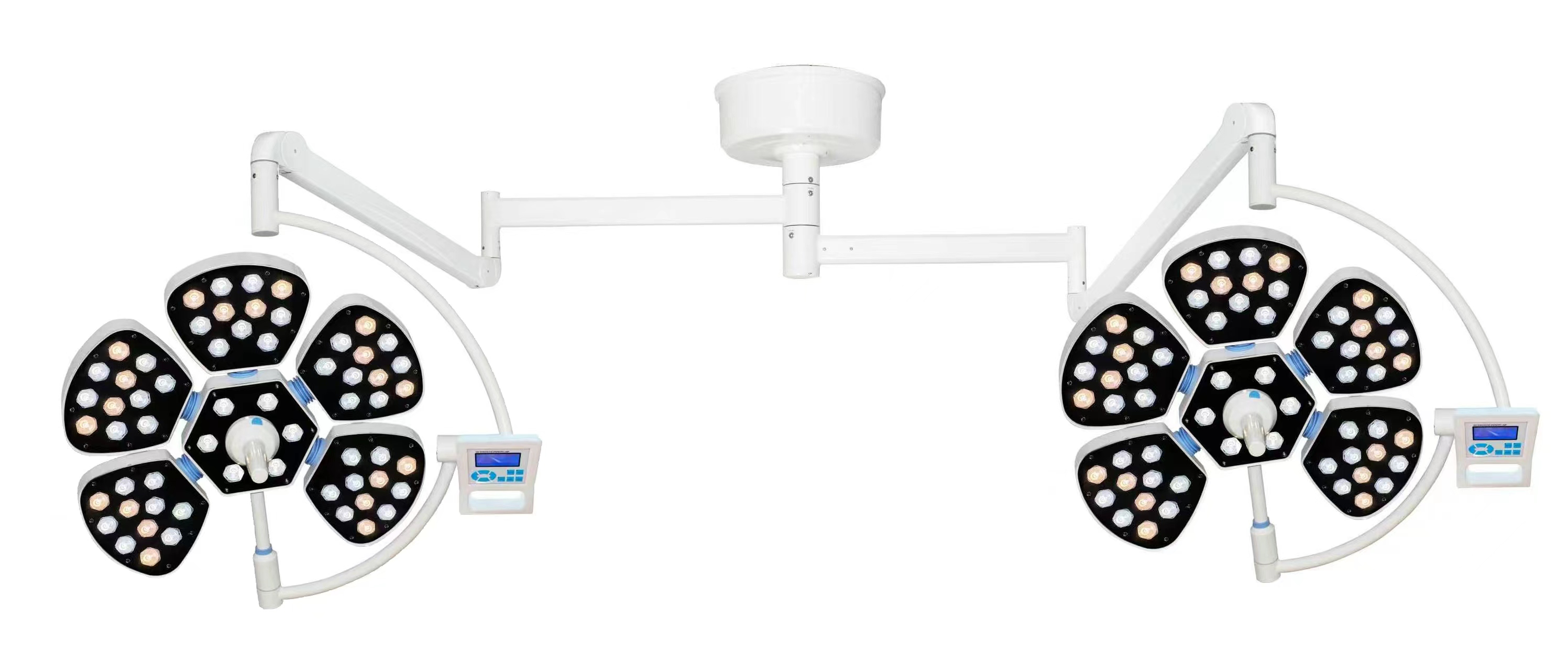

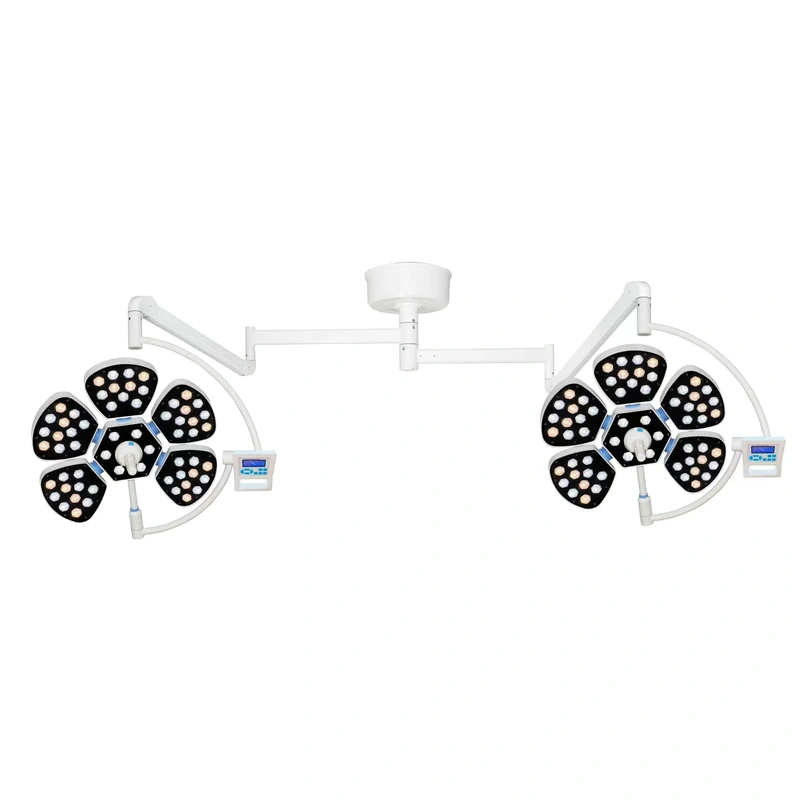

FY-5+5B Ceiling-mounted Double Dome LED Surgical Light
Advanced LED Illumination for Precision Surgery
Key Features
1. True Cold Light Source
• Imported German OSRAM LED chips, energy-saving with service life ≥80,000hrs; surgeon head temperature rise＜1℃.• No infrared & ultraviolet radiation, prevents wound overheat & tissue damage caused by traditional halogen lamps to accelerate wound healing without radiation pollution.• Stable constant color temperature with no luminous decay; soft natural sunlight-like light, anti-glare for long-time operation.
2. Excellent Shadowless Performance
• Petal multi-point lamp head delivers even spot illuminance, maintaining perfect shadowless effect even with partial lamp obstruction during surgery.• Rotation radius of lamp arm ≥182cm; lamp head can be lowered nearly vertical to ground for multi-angle flexible lighting.
3. Superior Deep Illumination
• Computer-aided modular optical design concentrates multi-beam LED to realize over 1200mm deep lighting, max central illuminance up to 180,000Lux. Adjustable 3700K~5000K color temperature restores authentic tissue color to cover all surgical lighting requirements.
4. Advanced Intelligent Control System
• LCD button control for power on/off, brightness and color temperature adjustment to match various clinical needs.• Digital memory function automatically saves preferred lighting parameters for instant reuse after restart.• Independent multi-circuit control design: single damaged LED will not affect overall lamp normal operation.
5. Universal Alloy Suspension Arm System
• Main rotating arm made of high-performance new alloy material.• Imported balance spring assembly for lightweight, smooth operation and precise positioning with wide adjustable range.• Built-in fatigue correction & positioning fine-tuning device for easy calibration after long-term service.
6. Laminar Flow Optimized Ultra-thin Lamp Head
• German petal slim design, maximum thickness ≤10cm for excellent laminar airflow in clean operating room.• Detachable central handle withstands 134℃ high-pressure autoclave sterilization for sterile adjustment.
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-5+5B, Ceiling-mounted Dual Head |
| Illuminance | 40,000–160,000Lux Adjustable / per head |
| LED Quantity | 61pcs per single lamp head |
| Light Source | Imported OSRAM LED |
| LED Lifespan | ≥80,000 Hours |
| Color Temperature | 3700K~5000K Adjustable |
| Ra Index | 85~98 Adjustable |
| Focus Depth | 50–180cm |
| Spot Diameter | 120–300mm Adjustable |
| Brightness Regulation | 1%~100% Stepless Adjustable |
| Power Consumption | 61W per lamp head |
| Operator Head Temp Rise | ＜1℃ |
| Input Voltage | AC100-240V 50/60HZ |
| Warranty | 2 Years |
