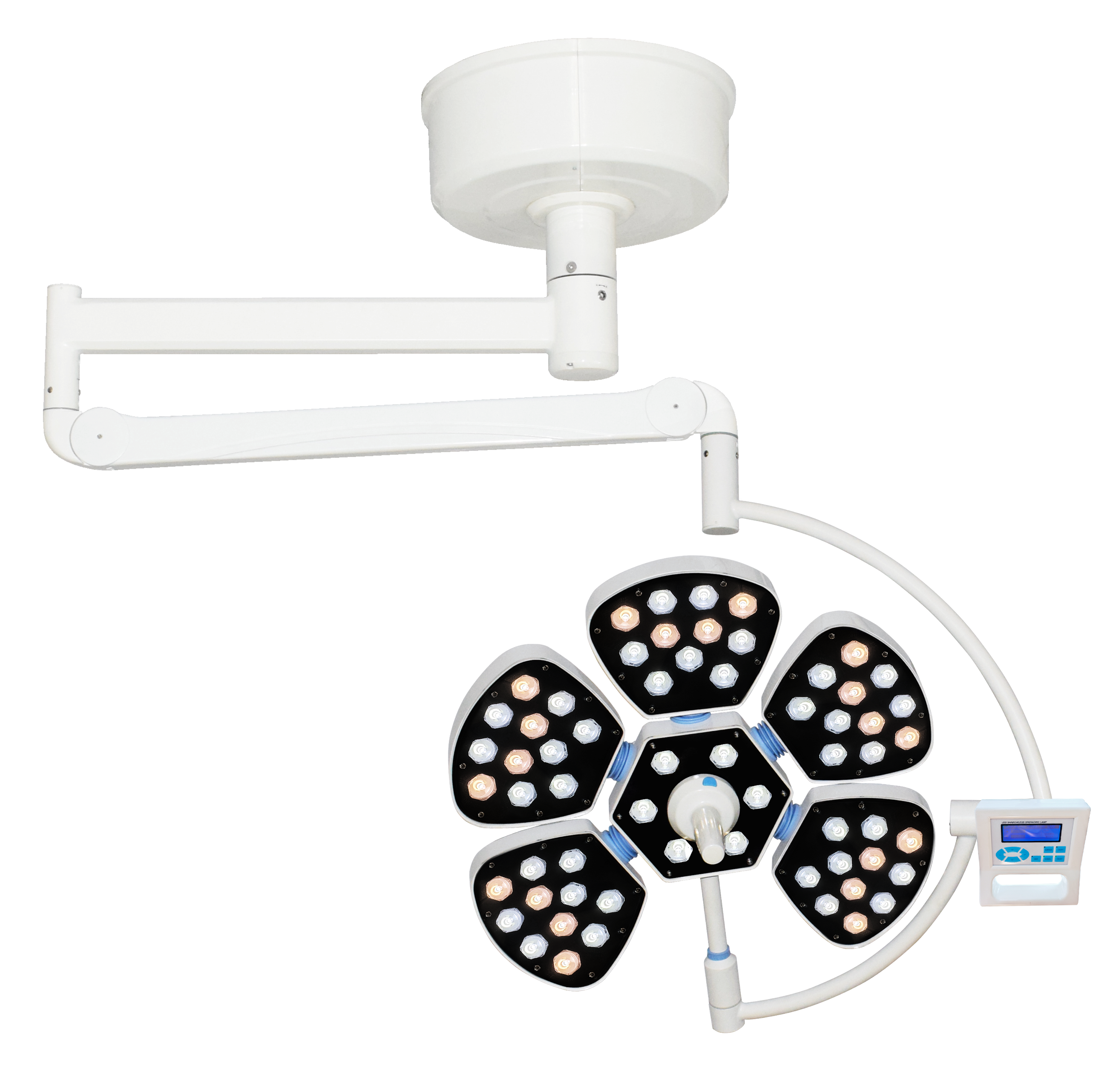

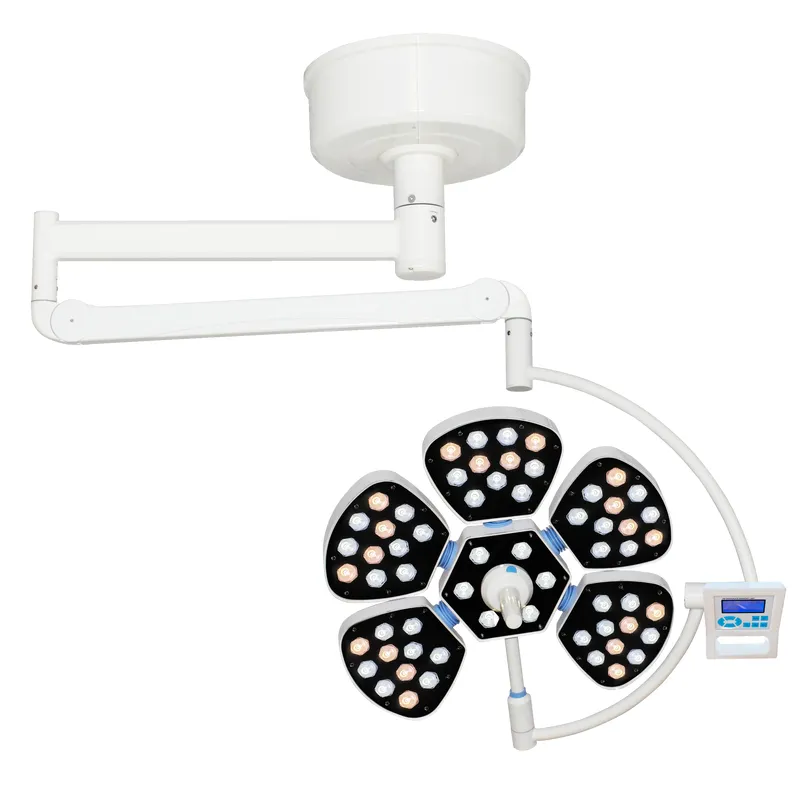

FY-5B Single Ceiling-mounted LED Surgical Shadowless Lamp
Key Features
1. Genuine Cold Light Source
• Adopts imported German OSRAM LED chips, energy-saving with service life ≥80,000hrs; surgeon’s head temperature rise＜1℃.• Zero infrared & ultraviolet radiation, avoids wound overheating and tissue damage caused by traditional halogen lamps, speeds up incision recovery without radiation pollution.• Constant stable color temperature without light decay; soft anti-glare lighting close to natural sunlight.
2. Excellent Shadow-free Performance
• Petal-shaped multi-point lamp head delivers even spot illumination; perfect shadowless effect remains even under partial lamp obstruction during surgery.• Arm rotating radius ≥182cm; lamp head can be lowered nearly vertical to ground for multi-angle flexible lighting.
3. Superior Deep Cavity Illumination
• Computer modular optical design converges LED beams to realize over 1200mm deep lighting; max central illuminance up to 160,000Lux. Adjustable 3500K~5000K color temperature restores real tissue color to satisfy full-range surgical lighting demands.
4. Intelligent Control System
• LCD button panel to control power, brightness and color temperature for personalized surgical lighting.• Built-in memory function saves customized parameters automatically for direct reuse after power-on.• Independent multi-circuit design: single damaged LED will not affect overall lamp normal operation.
5. Universal Alloy Suspension Arm
• Rotatable main arm made of high-strength new alloy.• Imported spring balance assembly ensures lightweight operation, precise positioning and wide adjusting range.• Equipped with fatigue compensation & positioning fine-tuning device for easy calibration after long-term usage.
6. Laminar Flow Ultra-thin Lamp Head
• German petal slim design, max thickness ≤10cm for outstanding laminar airflow effect in clean operating room.• Detachable central handle withstands 134℃ high-pressure autoclave sterilization for sterile flexible adjustment.
Technical Specification
| Item | Parameter |
|---|
| Model | FY-5B, Ceiling Mounted Single Dome |
| Adjustable Illuminance | 40,000~160,000Lux |
| LED Quantity | 61pcs |
| Light Source | Imported OSRAM LED |
| LED Lifespan | ≥80,000 Hours |
| Adjustable Color Temp | 3700K~5000K |
| Adjustable Ra | 85~98 |
| Focus Depth | 50~180cm |
| Spot Diameter | 120~300mm |
| Brightness Regulation | 1%~100% Stepless Adjustable |
| Power Consumption | 61W |
| Operator Head Temp Rise | ＜1℃ |
| Input Voltage | AC100-240V 50/60HZ |
| Warranty | 2 Years |
