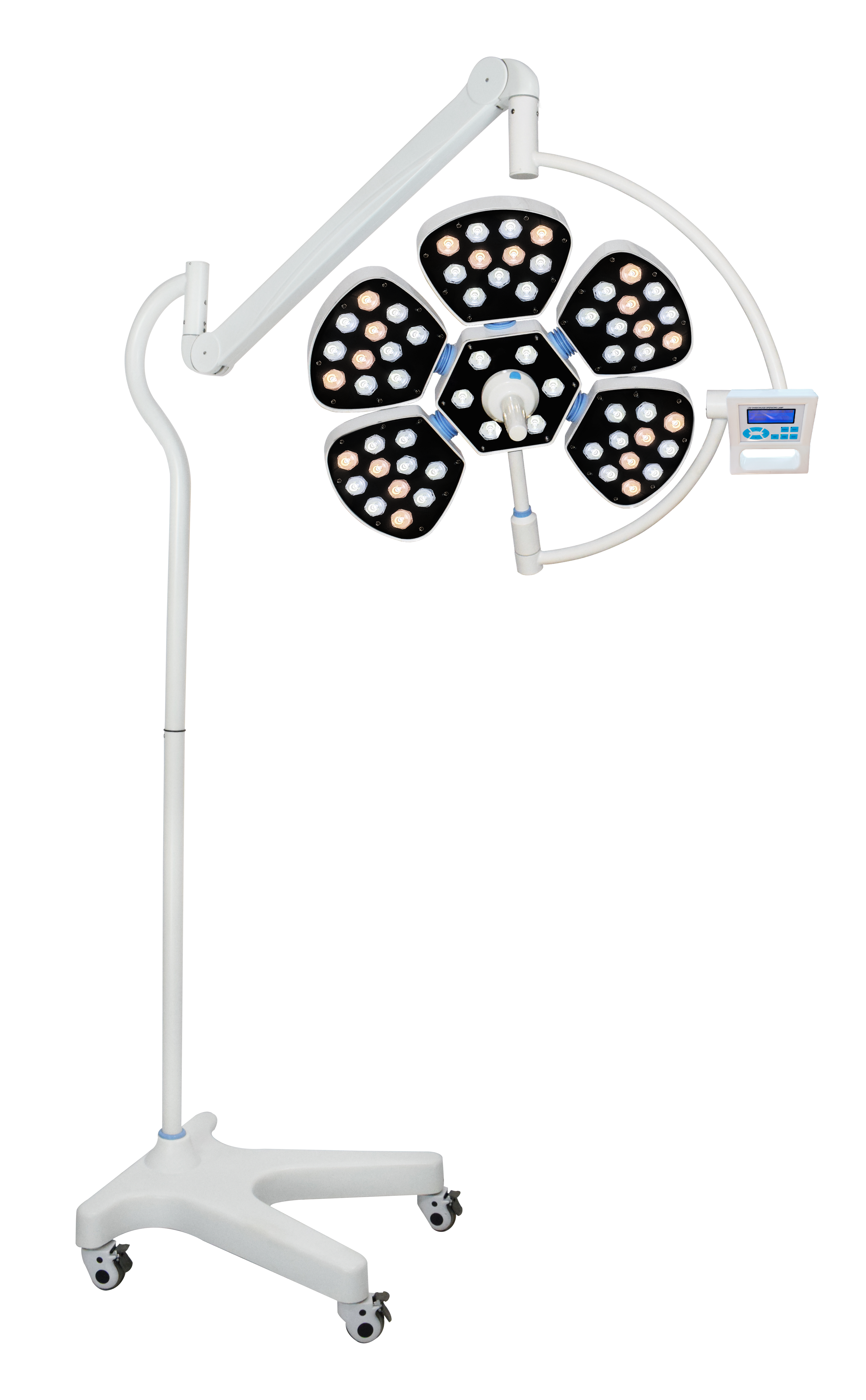

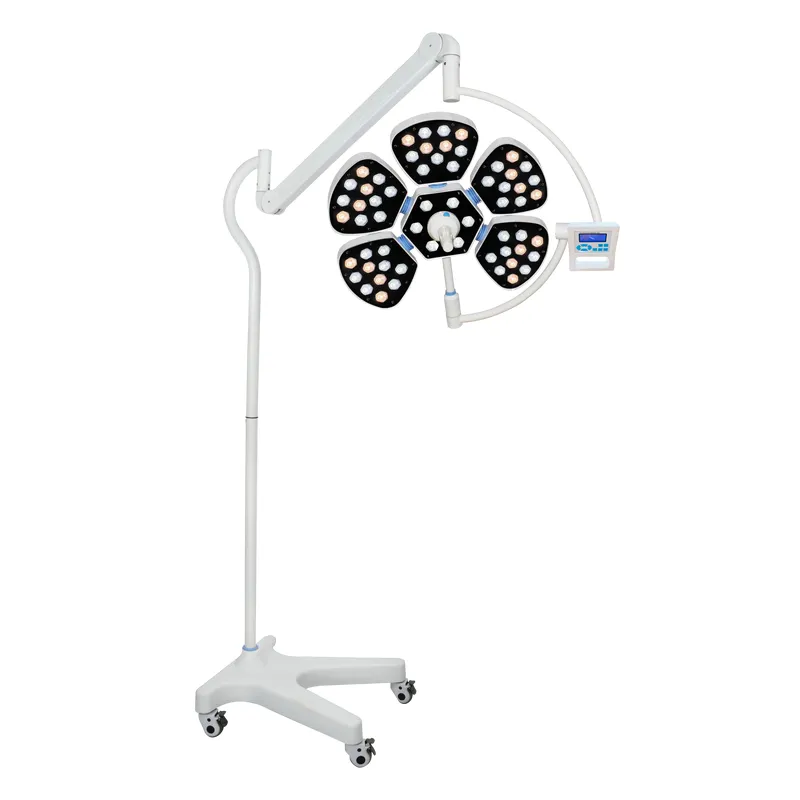

FY-5BS Mobile LED Surgical Light
Mobile Stand Type LED Shadowless Operating Lamp
Key Features
1. True Cold Light Source
• Adopts imported German OSRAM LED chips, energy-saving with ultra-long service life ≥80,000hrs; operator’s head temperature rise＜1℃.• Zero infrared & ultraviolet radiation, avoids wound overheating and tissue damage caused by halogen lamps to accelerate postoperative wound healing without radiation pollution.• Constant color temperature without light attenuation; soft sunlight-like lighting, anti-glare for clinical use.
2. Excellent Shadow-eliminating Performance
• German petal-shaped multi-point lamp head delivers even spot illuminance; outstanding shadowless effect even when partially blocked during operation.• Rotational radius of lamp arm ≥182cm; lamp head can be lowered nearly vertical to ground for multi-angle flexible illumination.
3. Superior Deep Cavity Lighting
• Computer-aided modular optical design concentrates multi-beam LED light to realize over 1200mm deep illumination; maximum central illuminance reaches 160,000Lux. Adjustable 3700K~5000K color temperature restores authentic tissue color to satisfy all types of surgical lighting demands.
4. Advanced Intelligent Control System
• LCD button control panel for power on/off, illuminance and color temperature adjustment to meet customized brightness for varied surgeries.• Built-in digital memory function automatically saves preferred lighting parameters for instant use after restart.• Independent multi-circuit centralized control: single damaged LED will not affect overall lamp operation.
5. High-precision Balanced Suspension Arm
• Equipped with imported balance spring components, lightweight structure for smooth manipulation and precise positioning with wide adjustable range.• Built-in fatigue correction & positioning fine-tuning device for easy calibration after long-term frequent use.
6. Silent Lockable Swivel Casters for Mobile Base
• Four-point support base fitted with premium silent medical swivel casters; each caster equipped with independent brake lock. Flexible, stable, noise-free movement and reliable fixed positioning.
7. Laminar Flow Optimized Ultra-thin Lamp Head
• Germany-designed petal ultra-slim structure, max thickness ≤10cm for excellent laminar airflow compliance in clean operating rooms.• Detachable central handle withstands 134℃ high-pressure autoclave sterilization for sterile adjustment and flexible positioning.
Technical Specification
| Item | Parameter |
|---|
| Model | FY-5BS(Mobile Floor-standing) |
| Adjustable Illuminance | 40,000–160,000Lux |
| LED Quantity | 61pcs |
| Light Source | Imported OSRAM LED |
| LED Service Life | ≥80,000Hrs |
| Adjustable Color Temperature | 3700K~5000K |
| Adjustable Ra Index | 85~98 |
| Focus Depth | 50–180cm |
| Adjustable Spot Diameter | 120–300mm |
| Brightness Regulation | 1%–100% stepless adjustable |
| Total Power Consumption | 61W |
| Operator Head Temp Rise | ＜1℃ |
| Input Power | AC100-240V,50/60HZ |
