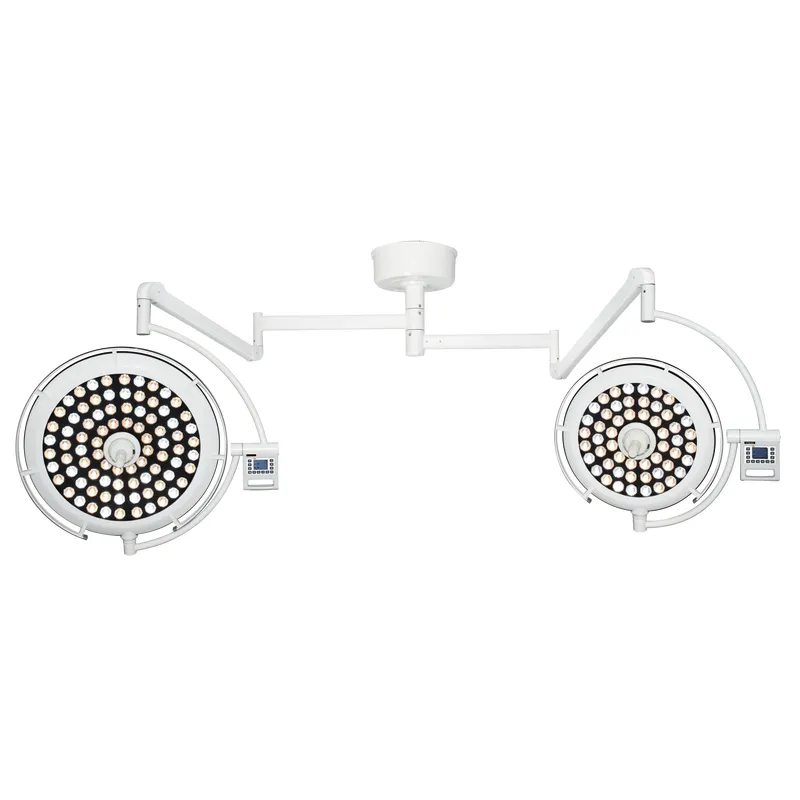

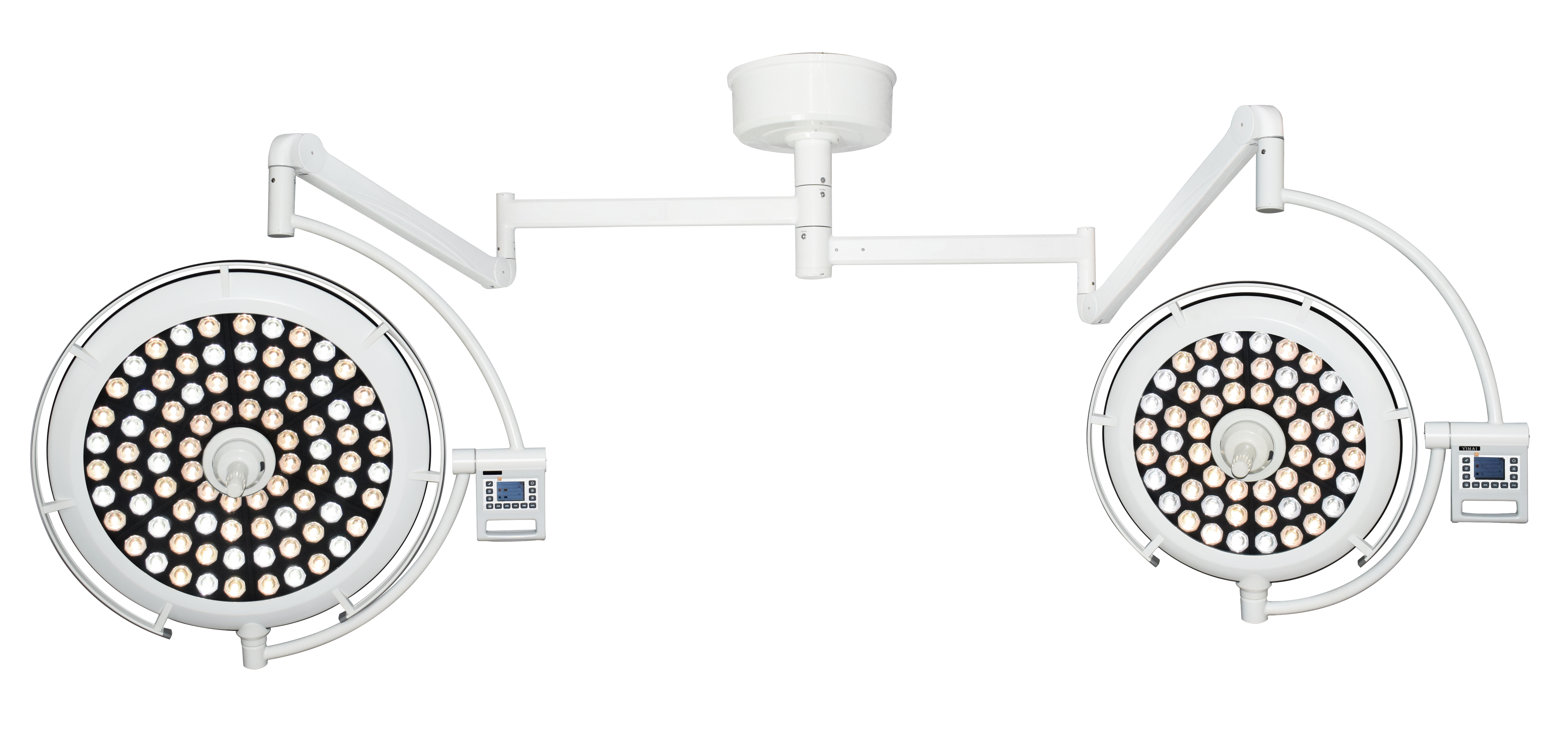

FY-700500A LED Double Dome Surgical Light
High-Efficiency Dual-Head LED Surgical Lamp for Major Operations
The FY-700500A is a premium dual-head LED surgical light, featuring a combination of 700mm and 500mm ultra-thin aluminum alloy lamp heads. Equipped with imported German Osram LEDs and independent dia-cut optical lenses, it delivers uniform, shadow-free illumination. The ergonomic grip-ring and optimized control system enable easy positioning and precise manual focusing, ideal for complex surgeries requiring high-intensity, adjustable lighting.
Key Features
Dual ultra-thin lamp heads (700mm/500mm) with durable aluminum alloy housing
Independent dia-cut optical lens over each LED for uniform light distribution
Integrated grip-ring on both heads for flexible angle adjustment
Upgraded control system for stable, user-friendly operation
Manual focus adjustment via central rotating handle
Stepless adjustable brightness & color temperature for diverse clinical needs
Ultra-low temperature rise ＜1℃ to prevent wound dehydration and tissue damage
Long-life German Osram LEDs (≥80,000hrs), energy-efficient and eco-friendly
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-700500A |
| Lamp Head Type | Dual Ultra-Thin Lamp Heads (700mm + 500mm) |
| Housing Material | Aluminum Alloy |
| Lamp Head Thickness | ≤9cm (700mm head); ≤8cm (500mm head) |
| Lamp Head Diameter | 700mm; 500mm |
| Horizontal Arm Reach | 800+900+700mm |
| Light Source | LED, Lifespan ≥80,000hrs |
| LED Quantity | 84pcs (700mm head); 54pcs (500mm head), Imported German Osram |
| Optical Lens | Dia-cut design for each bulb |
| Brightness | 40,000-160,000Lux, adjustable |
| Focus Range | 120~300mm, manually adjustable |
| Color Temperature | 3700K ~ 5000K, adjustable |
| Ra Index | 85～97 |
| Lighting Depth | 500-1800mm |
| Area Temperature Rise | ＜1℃ |
| Power Consumption | 84W (700mm head); 54W (500mm head) |
| Power Input | AC100-240V 50/60HZ, switching power supply |
| Warranty | 2 Years |
