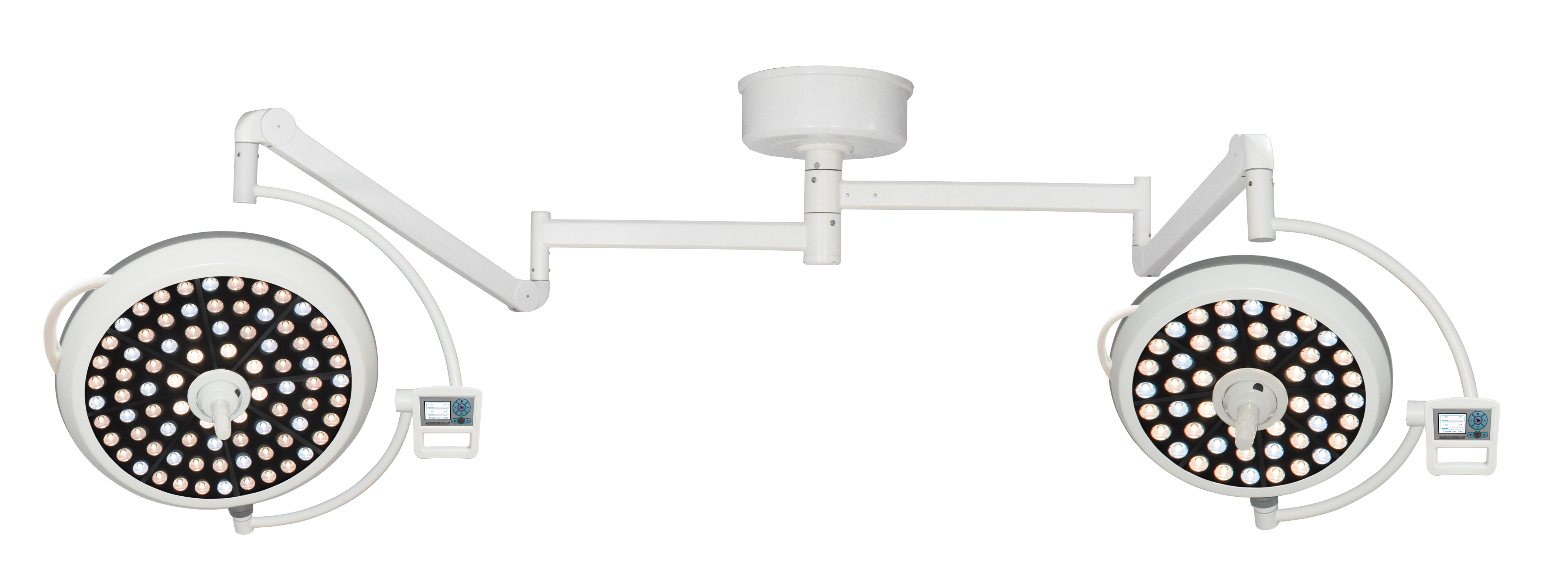

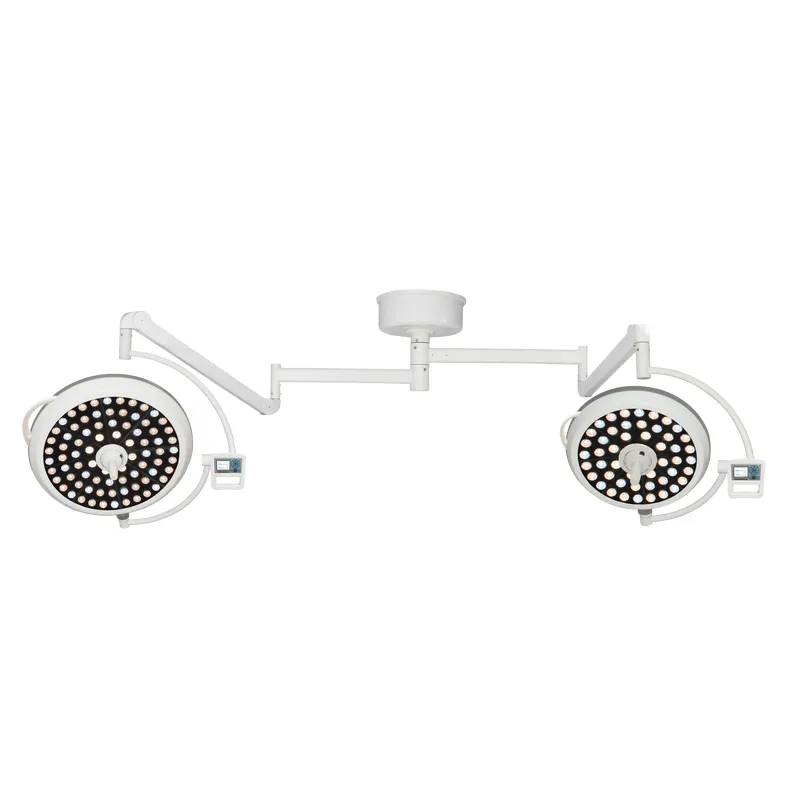

FY-700500B LED Double Dome Surgical Light
Conventional Dual-Head LED Surgical Lamp (700mm+500mm)
The FY-700500B is a cost-effective, standard dual-head LED surgical light with 700mm and 500mm lamp heads. Built with aluminum alloy housing and reliable LEDs, it delivers steady shadowless illumination for routine surgeries. Simple, robust design with core clinical features at a budget-friendly price.
Key Features
Dual standard lamp heads: 700mm + 500mm (non-ultra-thin, thickness ≤15cm)
Aluminum alloy housing: durable, good heat dissipation
Long-life LED source: ≥80,000hrs, no UV/IR radiation
Adjustable brightness & color temperature: meets general surgery needs
Manual focus control: via central rotating handle
Low temperature rise: ＜1℃, protects wound tissue
Easy maintenance: stable performance for standard ORs
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-700500B |
| Lamp Head Type | Dual Standard Heads (700mm + 500mm) |
| Housing Material | Aluminum Alloy |
| Lamp Head Thickness | ≤15cm |
| Lamp Head Diameter | 700mm; 500mm |
| Horizontal Arm Reach | 800+900+700mm |
| Light Source | LED, Lifespan ≥80,000hrs |
| LED Quantity | 80pcs (700mm); 40pcs (500mm) |
| Brightness | 40,000-160,000Lux, adjustable |
| Focus Range | 120~300mm, manually adjustable |
| Color Temperature | 3700K ~ 5000K, adjustable |
| Ra Index | 85～95 |
| Lighting Depth | 500-1800mm |
| Area Temperature Rise | ＜1℃ |
| Power Consumption | 80W; 40W |
| Power Input | AC100-240V 50/60HZ, switching power supply |
| Warranty | 2 Years |
