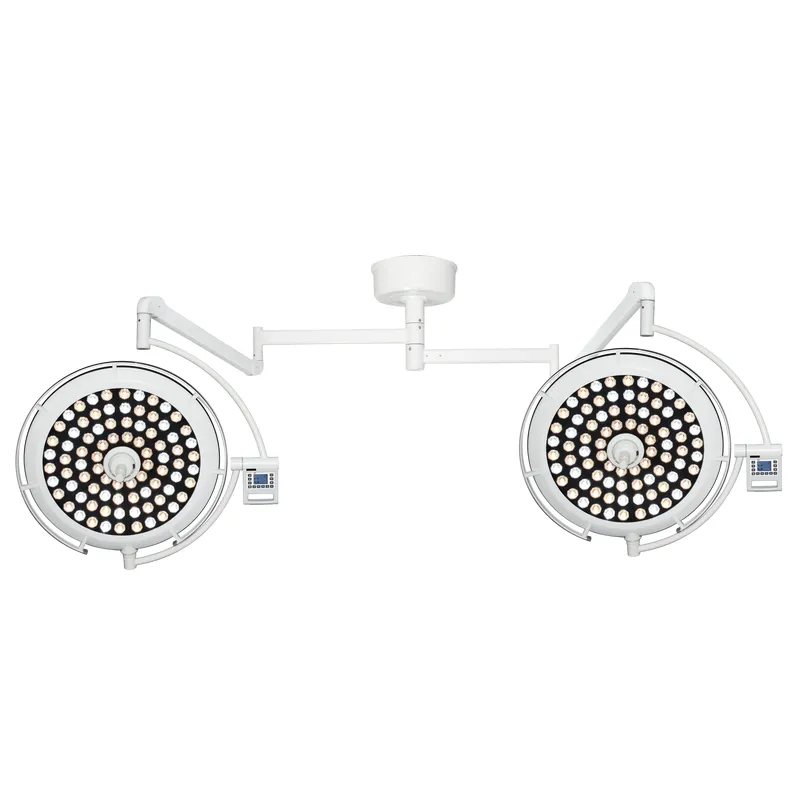

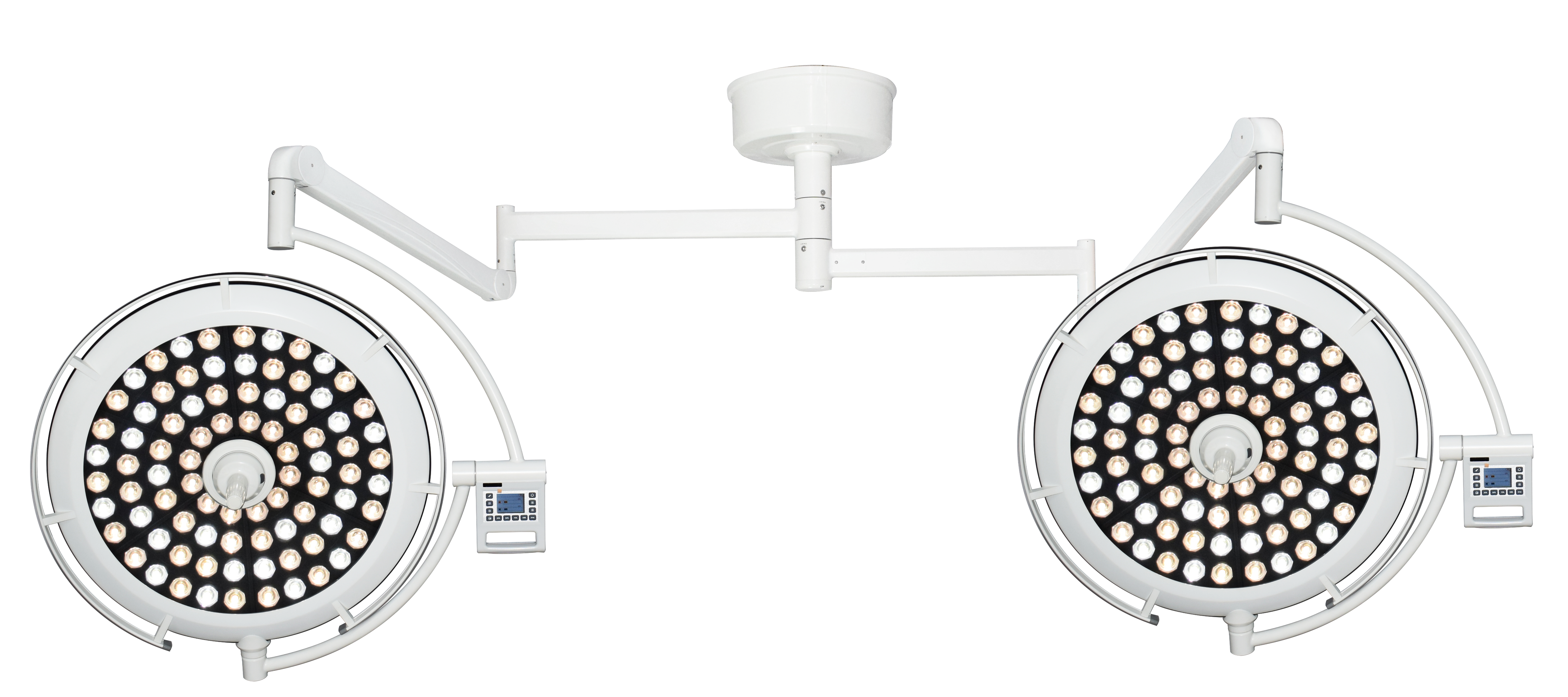

FY-700A LED Double Dome Surgical Light
Dual-Head LED Surgical Lamp for Comprehensive Surgical Illumination
The FY-700A dual-head LED surgical light is built with high-grade aluminum alloy and premium German Osram LED lights. Fitted with professional dia-cut optical lenses for every bulb, it provides even, high-intensity lighting with minimal heat generation. The ergonomic grip-ring and optimized control system ensure easy operation and flexible positioning, fully adapting to diverse surgical scenarios.
Key Features
Dual ultra-thin lamp heads, aluminum alloy housing for robust durability
Dia-cut optical lens equipped on each LED bulb for uniform light distribution
Built-in grip-ring on lamp heads for effortless position adjustment
Upgraded control system, user-friendly operation
Manual focus adjustment via central rotating handle
Stepless adjustable brightness and color temperature
Low temperature rise, protects surgical wounds and improves comfort
Long service life, stable performance and energy efficient
Technical Specifications
| Parameter | Specification |
|---|
| Lamp Head Design | Dual Ultra-Thin Lamp Heads |
| Lamp Head Housing Material | Aluminum Alloy |
| Single Lamp Head Thickness | ≤9cm |
| Single Lamp Head Diameter | 700mm |
| Horizontal Lamp Head Reach | 800+900+700mm |
| Light Source | LED, Lifespan ≥80,000hrs |
| LED Bulbs | 84pcs per head, total 168pcs (Imported German Osram) |
| Optical Lens | Dia-cut design for each individual bulb |
| Brightness | 40,000-160,000Lux, adjustable |
| Lighting Focus Range | 120~300mm, manually adjustable |
| Color Temperature | 3700K ~ 5000K, adjustable |
| Ra Index | 85～97 |
| Lighting Depth | 500-1800mm |
| Area Temperature Rise | ＜1℃ |
| Single Head Power Consumption | 84W |
| Power Input | AC100-240V 50/60HZ, with switching power supply |
| Warranty | 2 Years |
