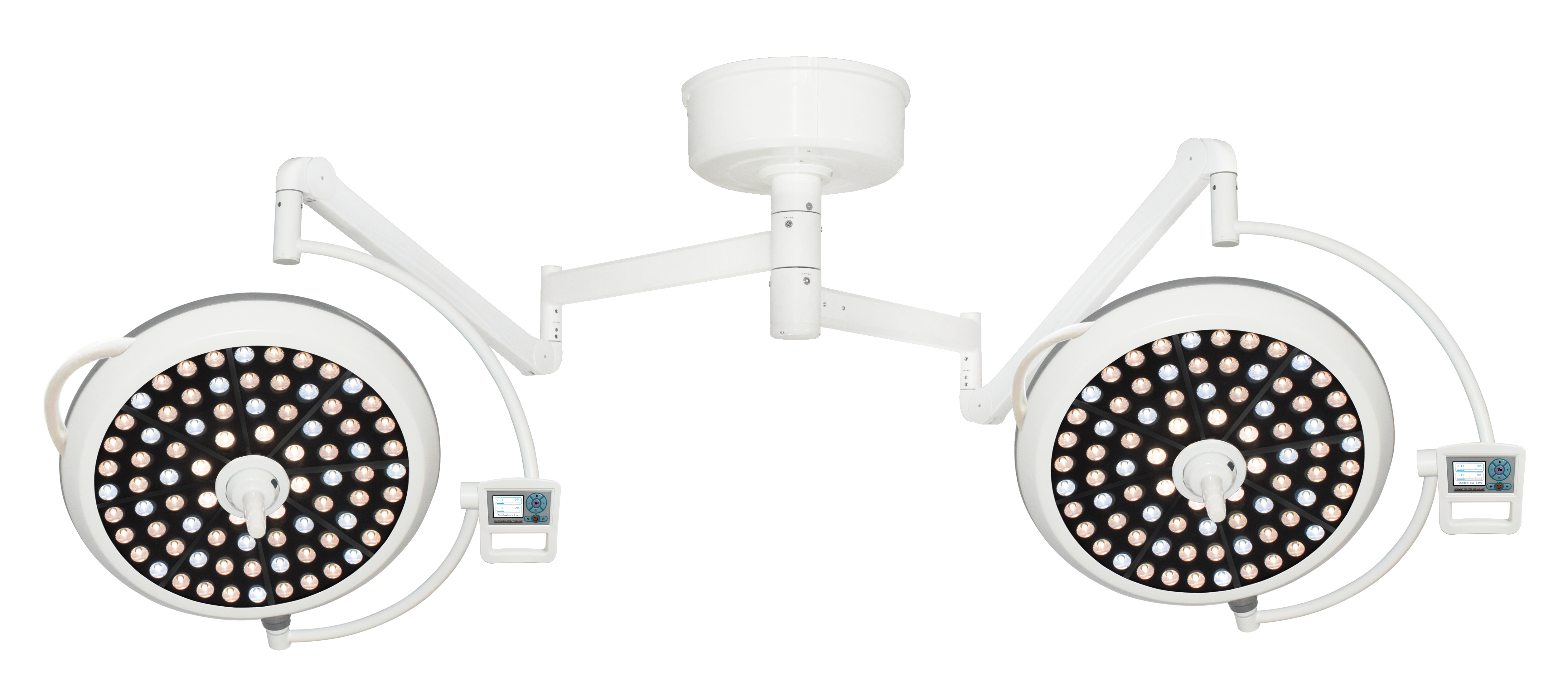

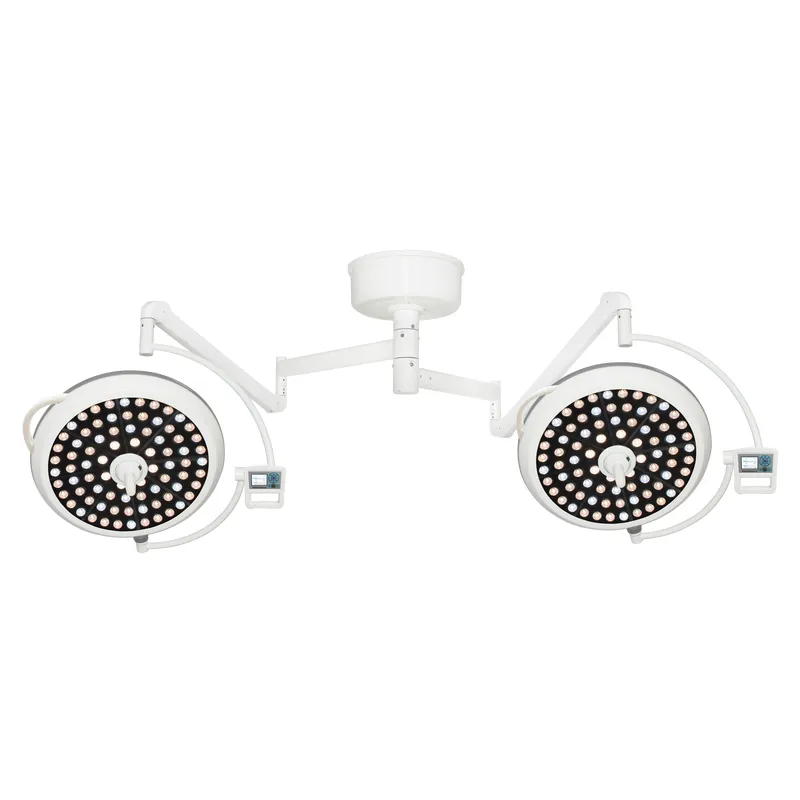

FY-700700B LED Double Dome Surgical Light
Conventional Dual-Head LED Surgical Lamp for Standard Operating Rooms
The FY-700700B is a cost-effective, conventional dual-head LED surgical light with two 700mm lamp heads. Built with aluminum alloy housing and high-quality LEDs, it delivers reliable shadowless illumination for routine surgeries. Simple, durable design with core clinical functions at a practical price.
Key Features
Dual 700mm standard lamp heads (non-ultra-thin, thickness ≤15cm)
Aluminum alloy housing for durability and heat dissipation
Long-life LED source (≥80,000hrs), no infrared/ultraviolet radiation
Adjustable brightness & color temperature for general surgery needs
Manual focus control via central rotating handle
Low temperature rise ＜1℃, protects wound tissue
Stable performance & easy maintenance, ideal for standard ORs
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-700700B |
| Lamp Head Type | Dual Standard Lamp Heads (700mm + 700mm) |
| Housing Material | Aluminum Alloy |
| Lamp Head Thickness | ≤15cm |
| Lamp Head Diameter | 700mm; 700mm |
| Horizontal Arm Reach | 800+900+700mm |
| Light Source | LED, Lifespan ≥80,000hrs |
| LED Quantity | 80pcs; 80pcs |
| Brightness | 40,000-160,000Lux, adjustable |
| Focus Range | 120~300mm, manually adjustable |
| Color Temperature | 3700K ~ 5000K, adjustable |
| Ra Index | 85～95 |
| Lighting Depth | 500-1800mm |
| Area Temperature Rise | ＜1℃ |
| Power Consumption | 80W; 80W |
| Power Input | AC100-240V 50/60HZ, switching power supply |
| Warranty | 2 Years |
