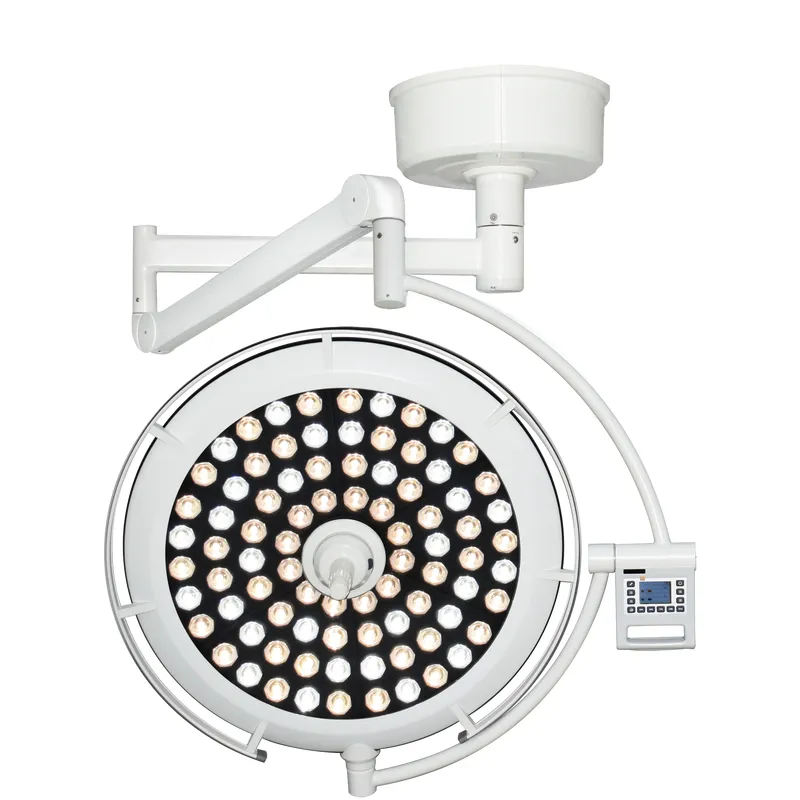

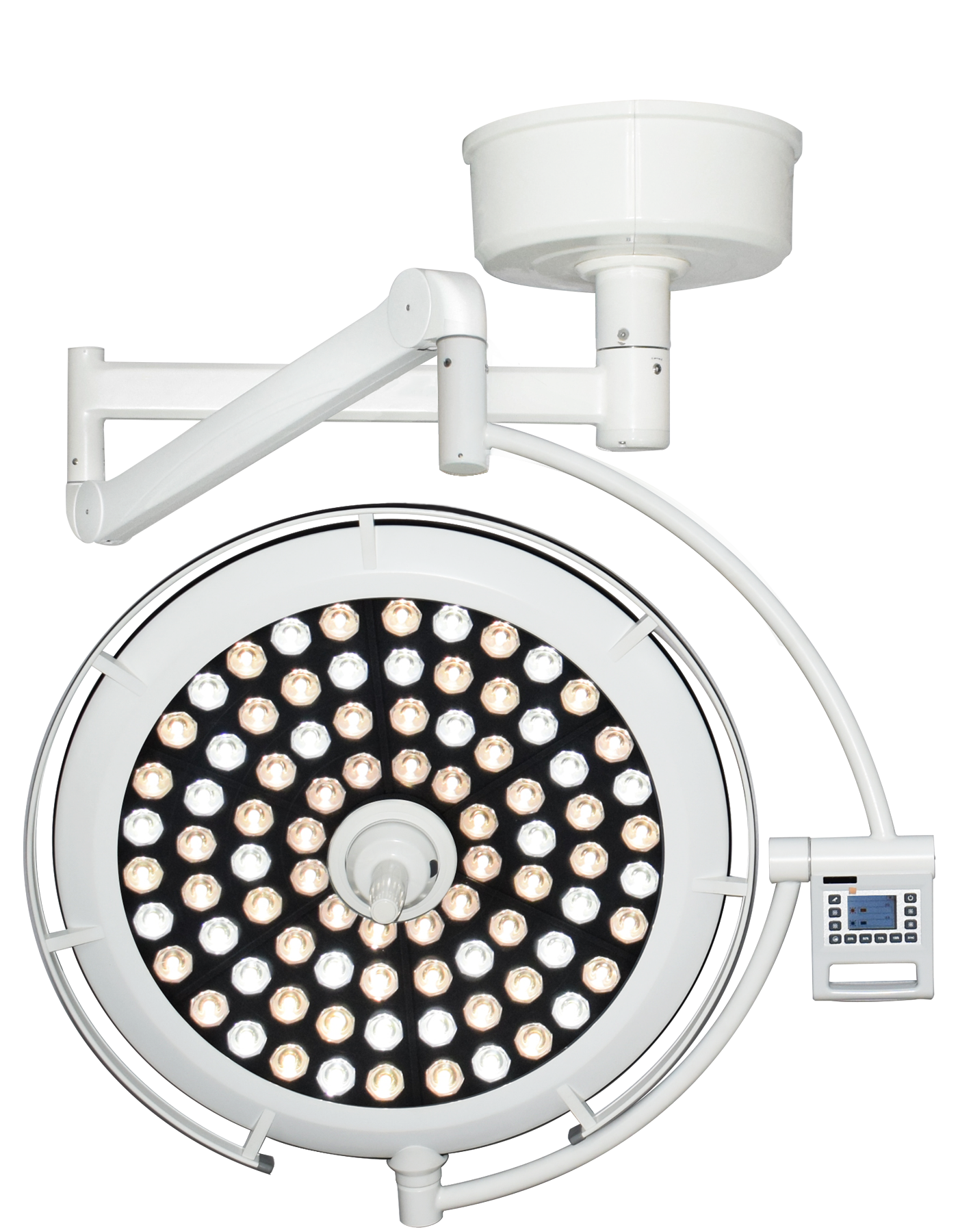

FY-700A LED Surgical Light
Ultra-Thin LED Surgical Lamp for Reliable Clinical Use
The FY-700A LED Surgical Light adopts premium German Osram LED chips and professional dia-cut optical lens, delivering uniform, high-brightness and low-heat illumination. With humanized structural design and flexible manual adjustment, it perfectly meets various surgical lighting demands, bringing stable and comfortable operating experience for medical staff.
Key Features
Ultra-thin lamp head & aluminum alloy housing, sturdy and durable
Dia-cut optical lens equipped for each LED bulb, uniform light output
Anti-slip grip-ring on lamp head for convenient position adjustment
Optimized control system, simple and easy to operate
Manual adjustable lighting focus via central handle
Wide-range dimmable brightness and color temperature
Ultra-low temperature rise, effectively avoid wound irritation
Long service life, energy-saving and low power consumption
Technical Specifications
| Parameter | Specification |
|---|
| Lamp Head Structure | Ultra Thin Design |
| Lamp Head Housing Material | Aluminum Alloy |
| Lamp Head Thickness | ≤9cm |
| Lamp Head Diameter | 700mm |
| Horizontal Lamp Head Reach | 800+900+700mm |
| Light Source | LED, Lifespan ≥80,000hrs |
| LED Bulbs | 84pcs, Imported German Osram |
| Optical Lens | Dia-cut design for each bulb |
| Brightness | 40,000-160,000Lux, adjustable |
| Lighting Focus Range | 120~300mm, manually adjustable |
| Color Temperature | 3700K ~ 5000K, adjustable |
| Ra Index | 85～97 |
| Lighting Depth | 500-1800mm |
| Area Temperature Rise | ＜1℃ |
| Power Consumption | 84W |
| Power Input | AC100-240V 50/60HZ, with switching power supply |
| Warranty | 2 Years |
