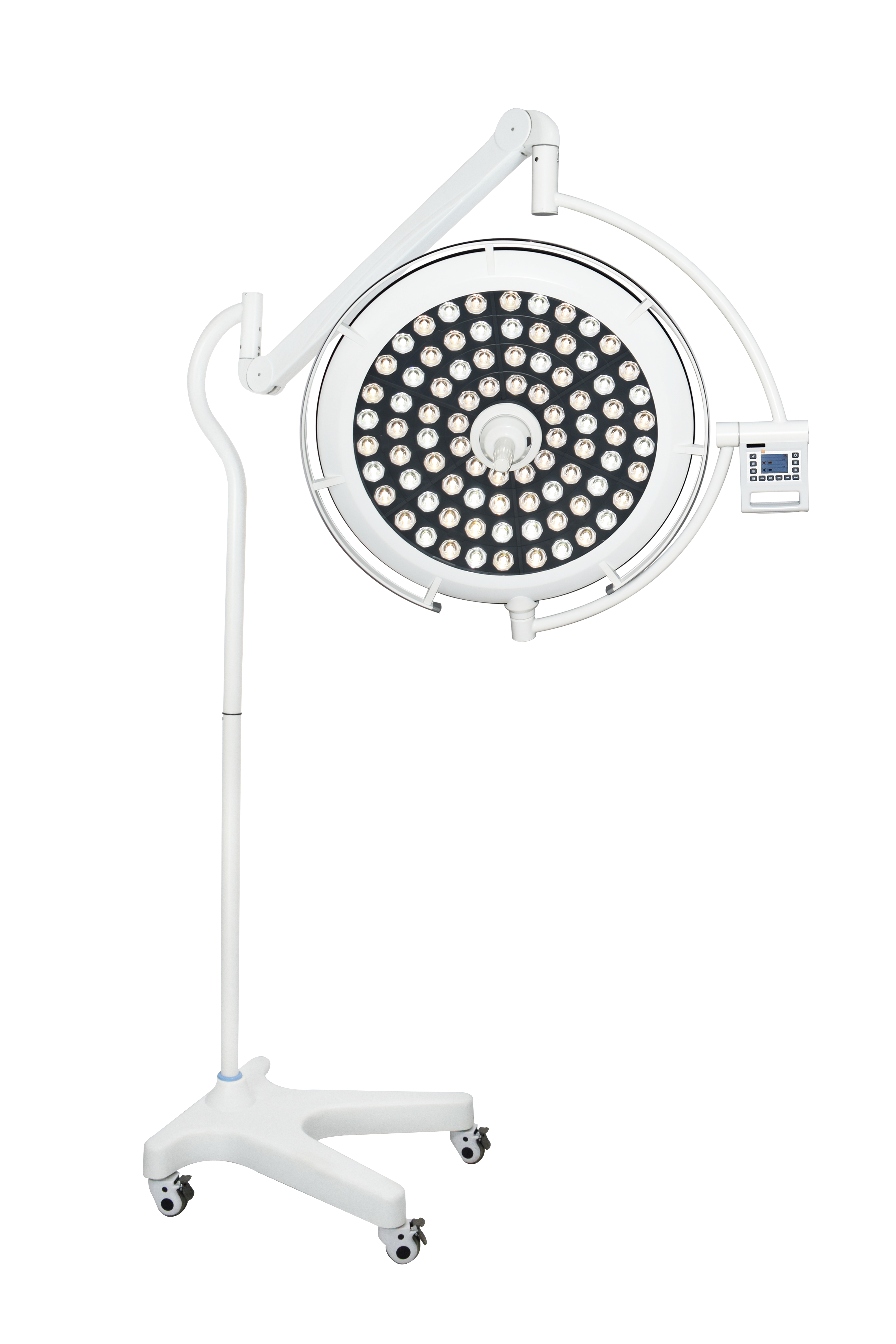

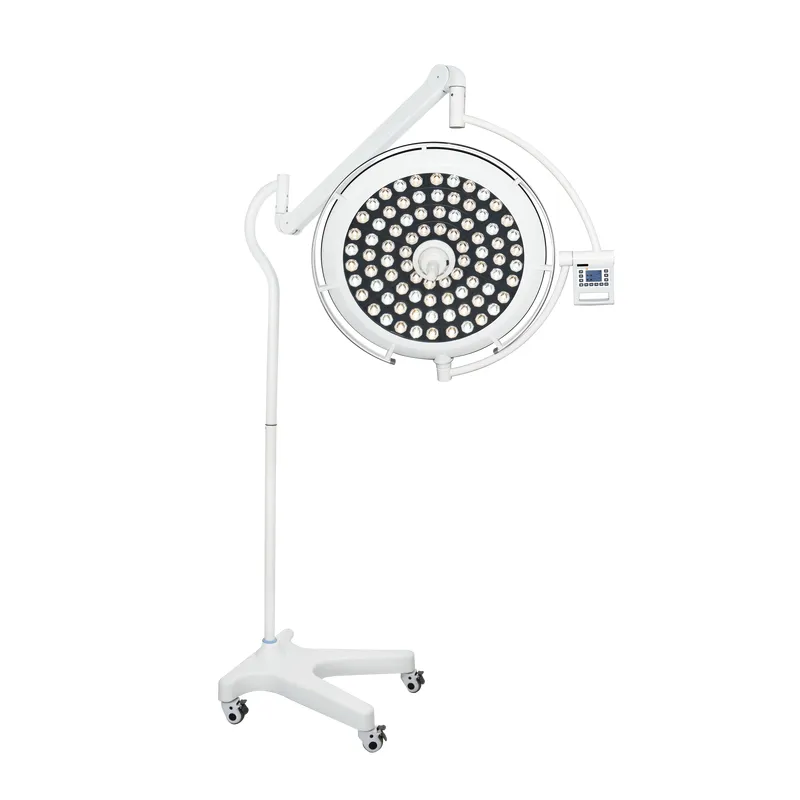

FY-700AS LED Single Dome Surgical Light
High-Performance Single-Head LED Surgical Operating Lamp
The FY-700AS single dome surgical light adopts premium aluminum alloy ultra-thin lamp head and imported German Osram LED chips. Each bulb is fitted with independent dia-cut optical lens to realize even shadow-free lighting. Equipped with practical grip-ring and upgraded control structure, it supports flexible manual focusing and multi-parameter adjustable lighting, satisfying all kinds of routine and medium-to-large surgical illumination requirements.
Key Features
Ultra-thin single lamp head with sturdy aluminum alloy housing
Independent dia-cut precision optical lens above every LED bulb for uniform light output
Built-in grip-ring for convenient lamp head positioning & angle adjustment
Optimized control system for stable and easy operation
Manual focus adjustment via central rotating handle
Stepless adjustable brightness and color temperature to fit different clinical needs
Ultra-low surface temperature rise＜1℃, avoid wound dry burn
Long-life imported Osram LED, energy saving and durable
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-700AS |
| Lamp Head Type | Single Ultra-Thin Lamp Head |
| Housing Material | Aluminum Alloy |
| Lamp Head Thickness | ≤9cm |
| Lamp Head Diameter | 700mm |
| Horizontal Lamp Arm Reach | 800+900+700mm |
| Light Source | LED, Lifespan ≥80,000hrs |
| LED Quantity | 84pcs, Imported German Osram |
| Optical Lens | Dia-cut design for each single bulb |
| Brightness | 40,000-160,000Lux, adjustable |
| Focus Range | 120~300mm, manually adjustable |
| Color Temperature | 3700K ~ 5000K, adjustable |
| Ra Index | 85～97 |
| Lighting Depth | 500-1800mm |
| Area Temperature Rise | ＜1℃ |
| Rated Power | 84W |
| Input Voltage | AC100-240V 50/60HZ, switching power supply |
| Warranty | 2 Years |
