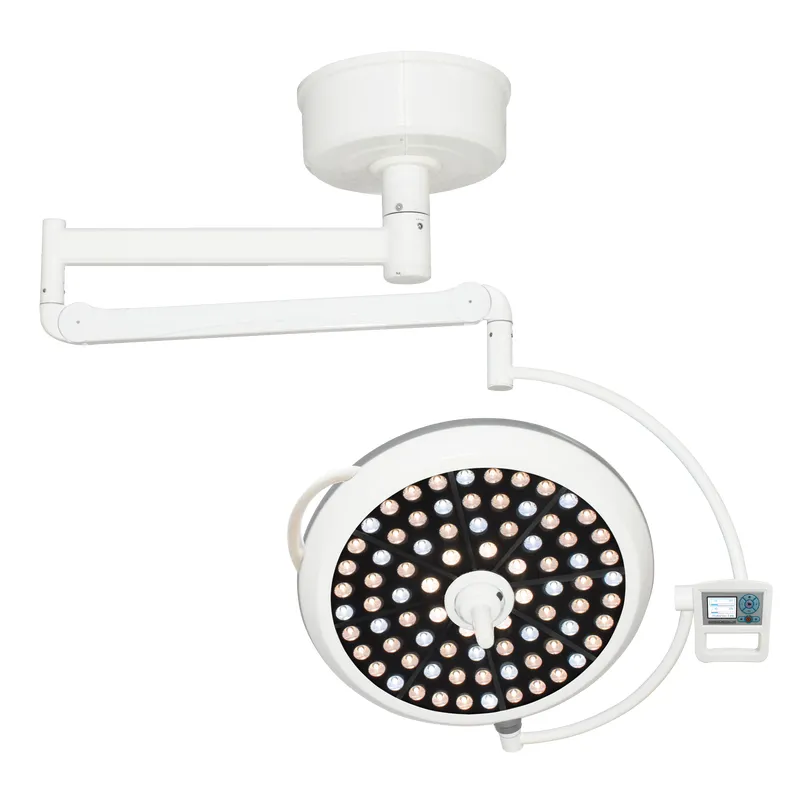

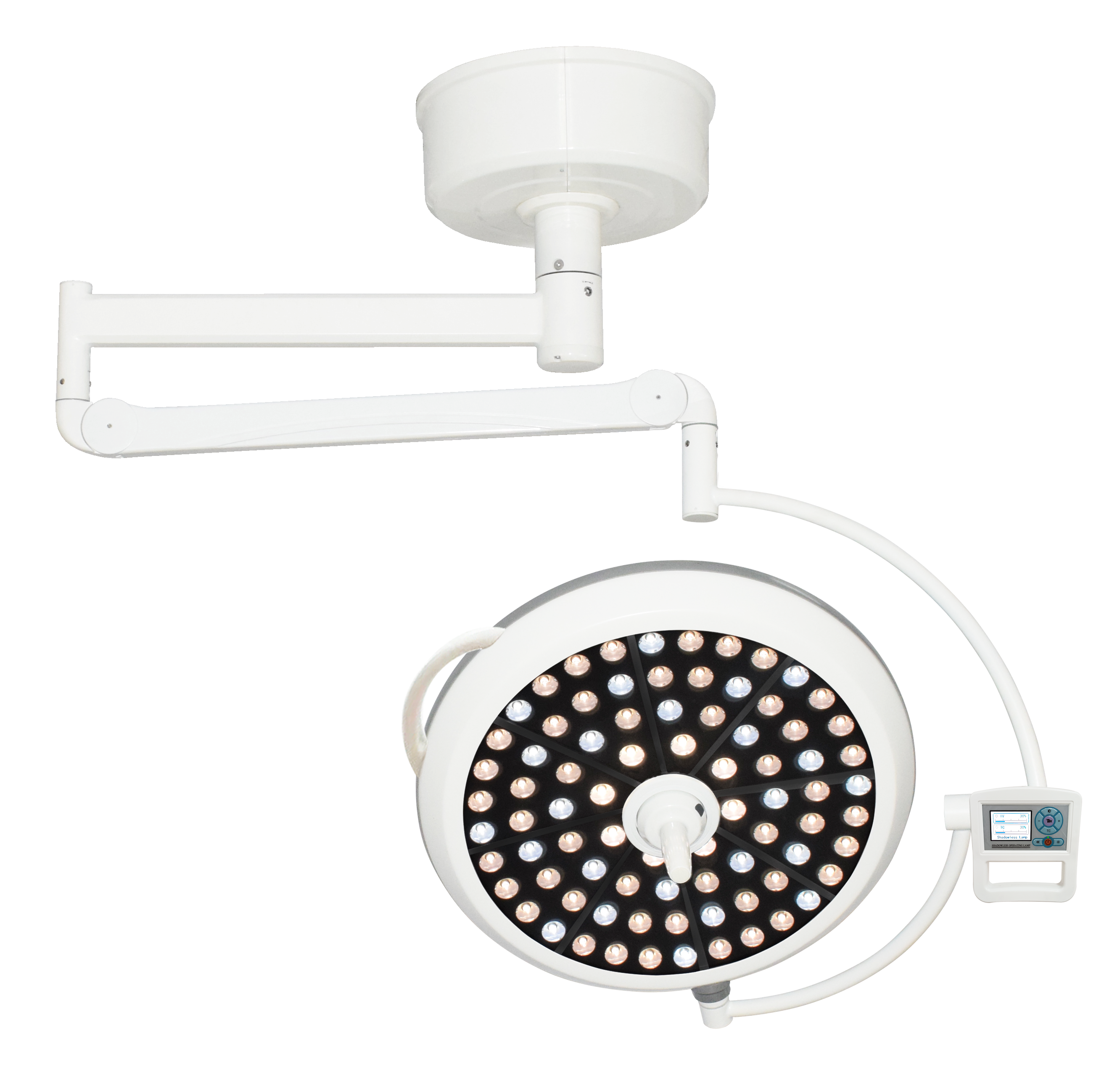

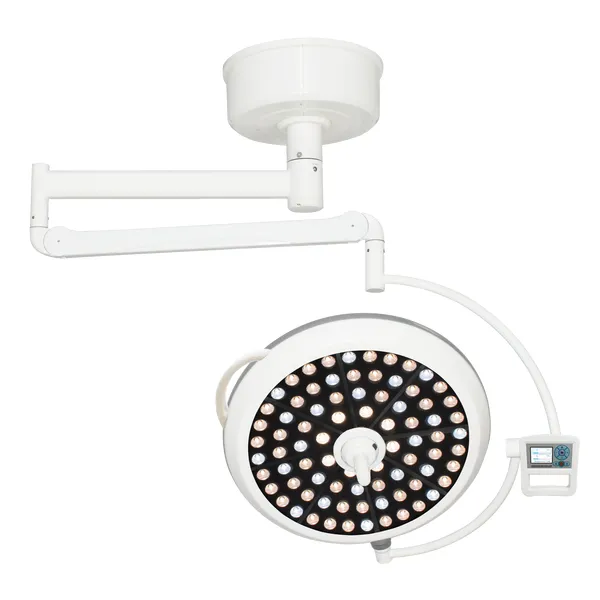

FY-700B LED Single Dome Surgical Light
Standard Ceiling-mounted LED Operating Lamp
The FY-700B is an economical ceiling-mounted single-head surgical light with regular lamp head structure and aluminum alloy housing. It provides stable adjustable shadowless illumination, widely applied for general surgery and clinical operation rooms.
Key Features
Ceiling fixed installation, saving floor space
Regular standard lamp head with aluminum alloy housing, thickness ≤15cm
Manual focus controlled by central rotating handle
Adjustable brightness and color temperature for various surgical conditions
Ultra-low operative field temperature rise less than 1℃ to avoid wound scald
Long lifespan LED ≥80,000 working hours, stable and energy-saving
Technical Specifications
| Parameter | Specification |
|---|
| Model | FY-700B (Ceiling-mounted) |
| Mounting Type | Ceiling-mounted, Single Regular Lamp Head |
| Housing Material | Aluminum Alloy |
| Lamp Head Thickness | ≤15cm |
| Lamp Head Diameter | 700mm |
| Horizontal Lamp Head Reach | 800+900+700mm |
| Light Source | LED, Lifespan ≥80,000hrs |
| LED Bulb Quantity | 80pcs |
| Brightness | 40,000-160,000Lux, adjustable |
| Focus Range | 120~300mm, manually adjustable |
| Color Temperature | 3700K ~ 5000K, adjustable |
| Ra Index | 85～95 |
| Lighting Depth | 500-1800mm |
| Area Temperature Rise | ＜1℃ |
| Power Consumption | 80W |
| Power Input | AC100-240V 50/60HZ, with switching power supply |
| Warranty | 2 Years |
