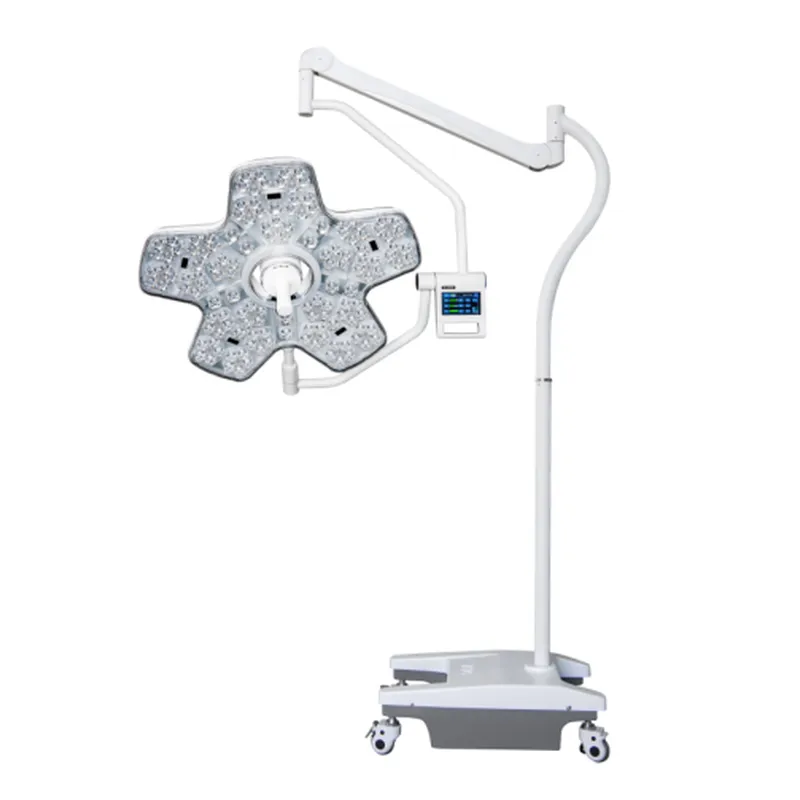

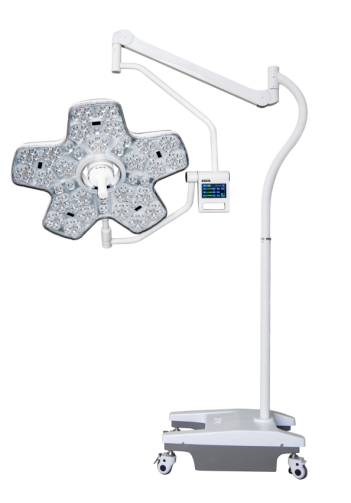

FY-720S Mobile LED Surgical Lamp

Mobile Surgical Light | Intelligent & High-performance

Core Advantages

• Automatic shadow compensation for steady illumination

• 6-piece lens assembly for superior optical performance

• Smart touch control for easy operation

• Imported German Osram LEDs with long service life

• Outstanding color rendering for true tissue color reproduction

• Dual focus adjustment modes for flexible use

• Low heat generation, safe for clinical environment

• Mobile design, easy to move and deploy

• 2-year warranty

Technical Parameters

• Model: 720S Mobile

• Key Features: Automatic Shadow Compensation, 6 Lens Unit, Smart Touch Control

• Lamp Head Diameter: 720mm

• Light Source: LED, Service Life ≥60,000hrs

• LED Chip: Imported from German Osram

• LED Quantity: 140pcs

• Optical Lens: 6 Units

• Brightness: 40,000–160,000Lux, 10-level adjustable

• Focus Range: 120~350mm, adjustable via touch control or handle

• Color Temperature: 3000K～5000K, 5-level adjustable

• Color Rendering Index Ra: ≥97

• R9/R13/R15: ≥95

• Lighting Depth (L1+L2): ≥1500mm

• Surface Temperature Rise: ＜0.5℃

• Power Consumption: 100VA

• Power Supply: AC100-240V 50/60Hz, switching power supply

• Control System: Smart Touch Control

• Central Handle: Detachable; extra touch control ring optional

• Arm Reach: 800+900mm

• Warranty: 2 Years

Product Features

1. Built-in shadow compensation function keeps the surgical field evenly lit.

2. Professional 6-lens system delivers uniform and concentrated light.

3. Sensitive smart touch control, simple to operate.

4. Premium imported Osram LEDs ensure stable performance and long lifespan.

5. Adjustable brightness and color temperature to fit various surgical scenarios.

6. Two focus adjustment methods available for greater convenience.

7. High color rendering index accurately restores tissue colors.

8. Ultra-long lighting depth, ideal for deep surgical operations.

9. Minimal temperature rise, no risk of heat injury.

10. Wide voltage compatibility, applicable worldwide.

11. Detachable central handle, optional touch control ring for diverse operation.

12. Extended combined arm offers large moving range and precise positioning.

13. Mobile structure, convenient to transfer between rooms.
