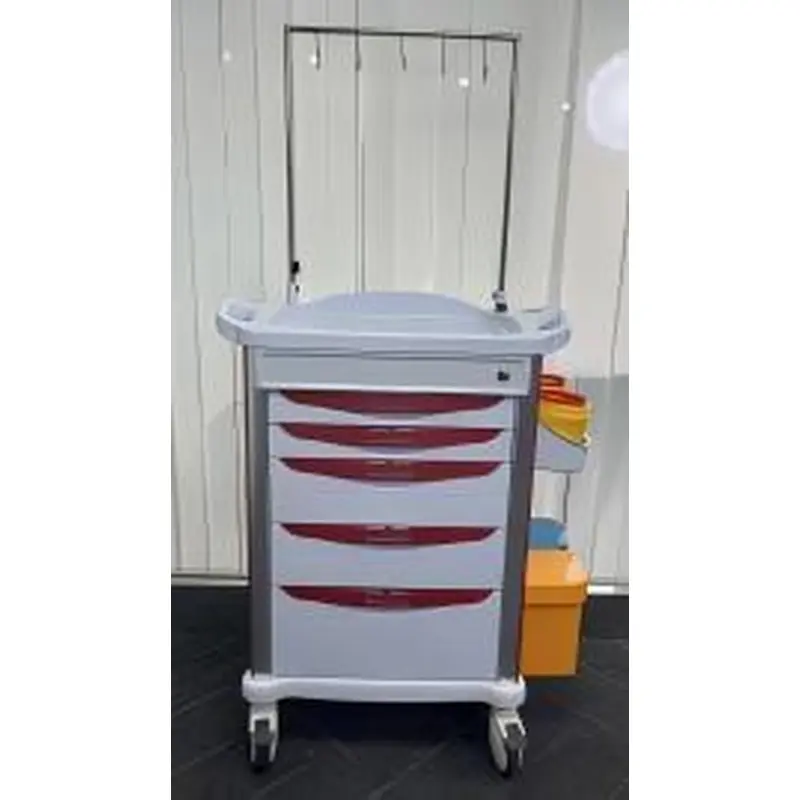

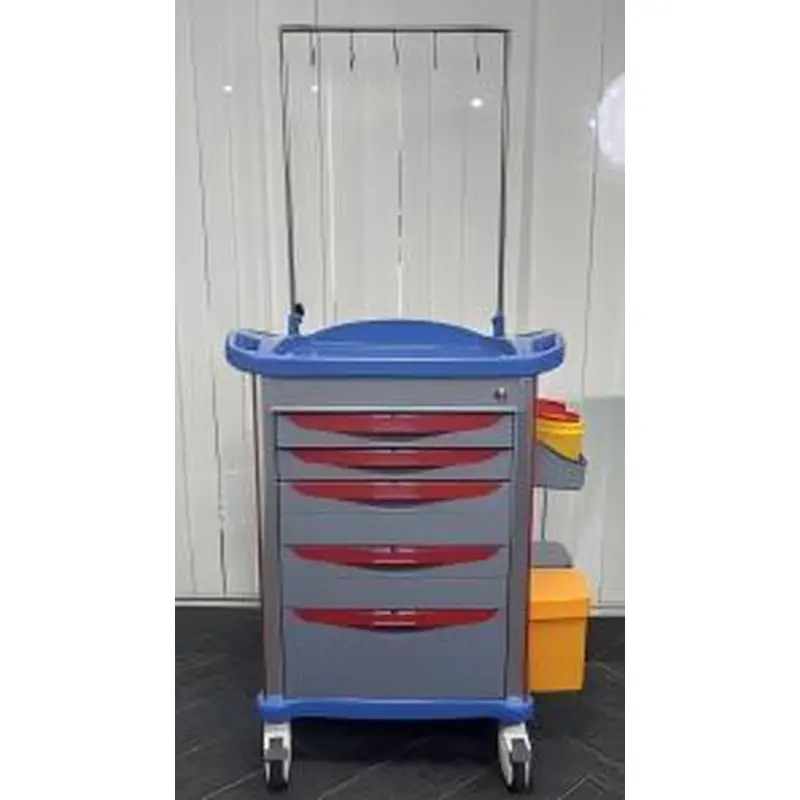

FY-750 Infusion Cart (New model)

Description

Description：

This multi-functional nursing trolley is widely used in operating rooms, emergency departments and ward nursing stations for storing infusion supplies, emergency medicines and medical instruments. Its vertical columns are premium aluminum alloy profiles with high strength, compact volume and elegant metallic texture. The cabinet body is a steel-plastic composite structure made of 1.0mm high-quality electrolytic plate, finished with antibacterial electrostatic powder coating to achieve rust resistance, environmental protection and antibacterial effects.

The worktop and guardrail are integrally blow-molded from ABS material with delicate outlook; all drawers adopt full ABS modular design. A side-mounted central control locking device enables simple and unified locking operation. It is equipped with 2 small drawers (drawer face height 68mm), 2 medium drawers (drawer face height 138mm) and 1 large drawer (drawer face height 208mm). Built-in dividers support flexible internal partitioning, drawers can be freely disassembled and assembled, and fitted with three-section ball-bearing silent slides for smooth noise-free pulling.

Four Φ100mm anti-winding universal casters (2 with brakes) are installed at the bottom for flexible pushing and precise steering. An adjustable single-row gantry IV pole is mounted on the rear upper part of the worktop, fitted with 6 hooks for hanging infusion bottles. Standard accessories include 1 document box, 1 side-hung box, 2 sharps containers, 2 Type B waste bins and 1 set of single-layer infusion stand. Package size: 780×550×910mm; net weight: 35.2KG, gross weight: 40.4KG.

Features：

High-strength aluminum alloy profile uprights, lightweight yet rigid with compact size and exquisite appearance.
1.0mm electrolytic plate steel-plastic cabinet with antibacterial electrostatic powder coating, rust-proof, easy to sanitize and inhibits bacterial growth.
Integrally blow-molded ABS worktop and guardrail with seamless smooth surface; full ABS modular drawers for easy disassembly, cleaning and maintenance.
Side central control lock realizes one-step locking of all drawers, simple operation and improved safety of drug management.
Multi-height drawer combination with removable internal dividers to customize storage space for different medical supplies; three-section silent ball-bearing slides guarantee stable and quiet drawer pulling.
Height-adjustable single-row gantry infusion stand with 6 hanging hooks, meeting multi-bottle infusion demands in clinical treatment.
Four Φ100mm anti-winding universal casters with dual brake design, flexible rolling and stable directional control.
Complete supporting accessories fully meet clinical demands of document filing, medical waste sorting and infusion treatment.
Standard unified packaging specification with clear net and gross weight data for convenient logistics delivery and shipment arrangement.

Specification：

Category	Item	Specification
Overall Size	Cart overall dimensions	750×480×940 mm
Vertical Columns	Material	High-quality aluminum alloy profiles, high strength, compact size & elegant appearance
Cabinet Body	Material & Surface Treatment	1.0mm high-quality electrolytic plate, antibacterial electrostatic powder spraying, rust-proof, eco-friendly & antibacterial
Worktop & Drawers	Worktop & Guardrail	Integrally blow-molded ABS with exquisite appearance
	Drawer Structure	Full ABS modular design
Locking System	Lock Layout	Side-mounted central control lock, simple and convenient operation
Drawer Layout	Drawer Combination	2 small drawers (face H:68mm) + 2 medium drawers (face H:138mm) + 1 large drawer (face H:208mm)
Drawer Fittings	Internal Partition	Built-in dividers for free partitioning, drawers detachable at will
	Slide Rail	Three-section ball bearing silent slides
Casters	Parameter	4 pcs Φ100mm anti-winding universal casters, 2 with brakes, flexible pushing & accurate steering
Rear Upper Infusion Rack	Structure	Height-adjustable single-row gantry infusion stand
	Hanging Hooks	6 hooks for infusion bottles
Standard Full Accessories	Document box	1 pc
	Side-hung box	1 pc
	Sharps containers	2 pcs
	Type B waste bins	2 pcs
	Single-layer infusion stand set	1 set
Packaging Info	Package size	780×550×910 mm
Weight Data	Net weight	35.2 KG
	Gross weight	40.4 KG
