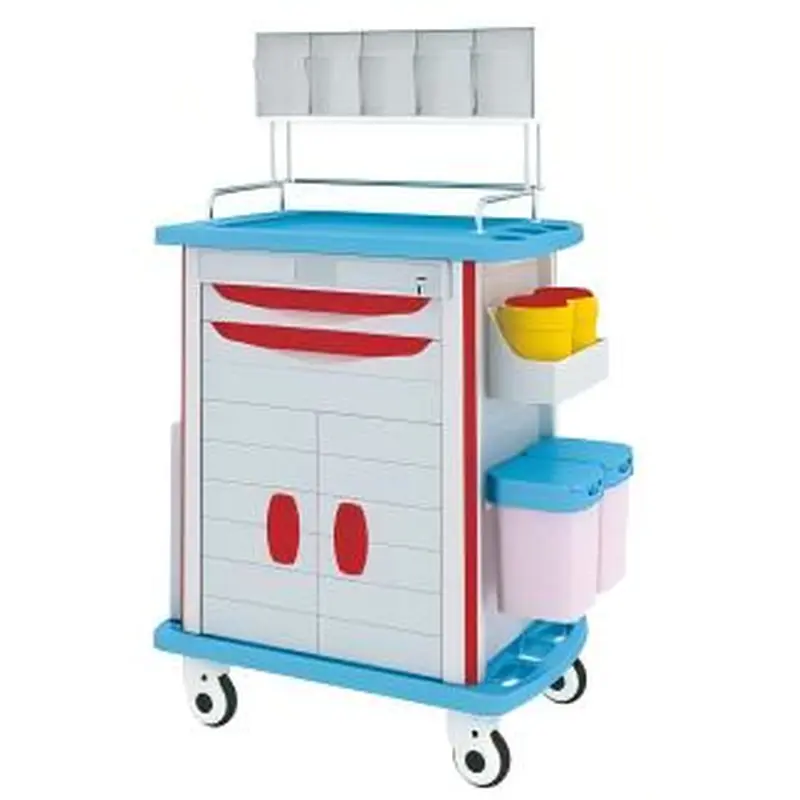

FY-AT750-01 Anesthesia Trolley

Description

Description：

This multi-functional medical trolley is suitable for ward nursing, clinical drug arrangement and routine treatment work. Its main body is constructed from ABS engineering plastic, and all drawers adopt full ABS modular structure. The worktop is fitted with a three-sided stainless steel guardrail welded by Φ12 stainless steel bars for stable and elegant appearance. Supported by plastic-steel uprights, the trolley is equipped with a side-mounted central control lock for easy locking operation.

It contains 1 small drawer (68mm height) and 1 medium drawer (120mm height). Built-in dividers allow flexible compartment layout; drawers are detachable and fitted with 3-section ball-bearing silent slides. A double-door storage cabinet under the drawers provides large-capacity classified storage for drugs and medical instruments. The left side is furnished with a writing board and a side flip storage box. Five transparent flip-top anesthesia boxes are mounted above the worktop guardrail for centralized medicine storage. Four premium brand Φ100mm silent anti-winding casters at the bottom support flexible pushing and heavy load bearing. Standard accessories include one side-hung box, two sharps containers, two Type B waste bins and one set of single-row anesthesia boxes.

Features：

Main body and full ABS modular drawers are lightweight, corrosion-resistant and easy to wipe and disinfect.
Three-sided stainless steel guardrail welded from Φ12 stainless steel bars, solid structure and delicate appearance.
High-strength plastic-steel uprights form stable frame; side central control lock realizes simple and unified locking of all storage spaces.
Combination of small and medium drawers with adjustable internal dividers; drawers can be freely disassembled and assembled with smooth silent three-section slides.
Double-door cabinet under drawers expands storage volume for large medical supplies and instruments.
Humanized left-side layout: writing board for medical recording + side flip box for small consumables.
5 transparent flip-top anesthesia boxes above worktop for visual classified storage of various medicines.
Four high-quality Φ100mm silent anti-winding casters, flexible movement and strong load capacity.
Complete standard waste and storage accessories meet comprehensive clinical nursing demands.

Specification：

Category	Item	Specification
Overall Size	Overall dimensions	750×480×1300 mm
Main Material	Main Body	ABS engineering plastic
	Drawers	Full ABS modular design
Worktop Guardrail	Material & Craft	Three-sided stainless steel fence, welded by Φ12 stainless steel bars
Frame & Lock	Uprights	Plastic-steel vertical columns
	Locking Device	Side-mounted central control lock, easy operation
Drawer Layout	Drawer Combination	1 small drawer (H:68mm) + 1 medium drawer (H:120mm)
Drawer Fittings	Internal Structure	Built-in dividers for free partitioning, drawers detachable
	Slide Rail	3-section ball bearing silent slides
Lower Storage	Cabinet	Double-door storage cabinet under drawers
Left Side Fittings	Accessories	Writing board + side-turning material box
Upper Medicine Storage	Anesthesia Boxes	5 transparent flip-top anesthesia boxes above guardrail
Casters	Parameter	4 pcs high-quality brand silent anti-winding casters, Φ100mm, flexible pushing & large load capacity
Standard Full Accessories	Side-hung box	1 pc
	Sharps containers	2 pcs
	Type B waste bins	2 pcs
	Single-row anesthesia box set	1 set
