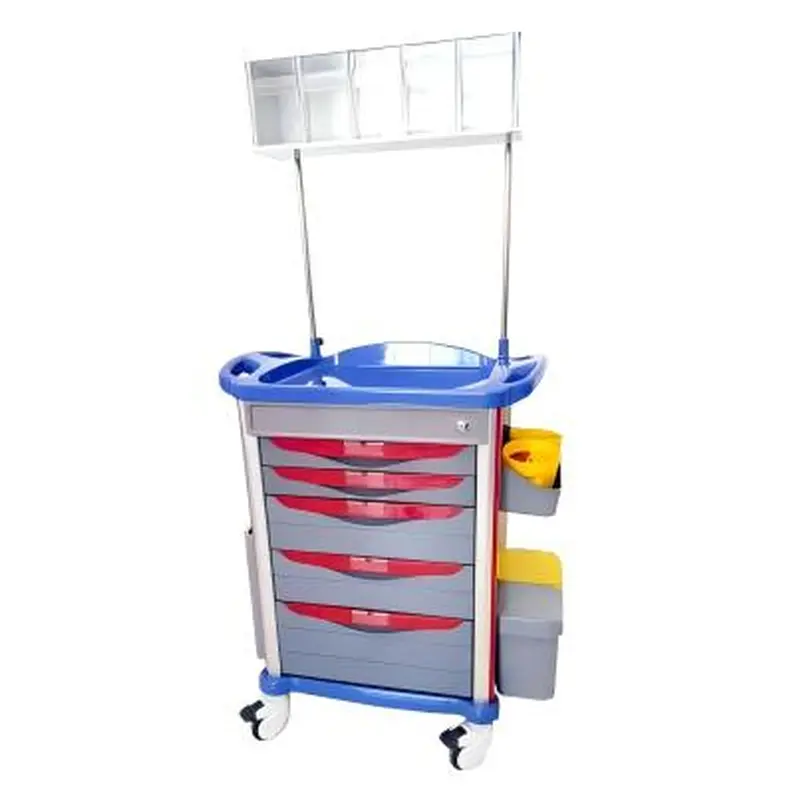

FY-AT750-02 Anesthesia Trolley (New model)

Description

Description：

This multi-functional medical anesthesia trolley is widely used in operating rooms, emergency departments and ward nursing stations for classified storage of anesthetics, emergency medicines and medical instruments. Its vertical columns are high-strength aluminum alloy profiles with compact volume and elegant texture. The cabinet body is a steel-plastic composite structure made of 1.0mm premium electrolytic plate coated with antibacterial electrostatic powder, which is rust-proof, eco-friendly and inhibits bacterial growth.

The worktop and guardrail are integrally blow-molded from ABS material, and all drawers adopt full ABS modular design. A side-mounted central control lock enables easy unified locking operation. It is equipped with 2 small drawers (panel height 68mm), 2 medium drawers (panel height 138mm) and 1 large drawer (panel height 208mm). Built-in dividers support flexible internal partitioning, drawers can be freely disassembled and assembled, and fitted with three-section ball-bearing silent guide rails for smooth noise-free pulling. A hidden auxiliary workbench is arranged on the left side for temporary clinical operations.

An adjustable single-row gantry anesthesia rack is mounted on the rear upper part of the worktop, equipped with 5 transparent flip-top anesthesia boxes for centralized medicine storage. Four Φ100mm anti-winding universal casters (2 with brakes) realize flexible pushing and precise steering. Standard accessories include 1 document box, 1 side-hung box, 2 sharps containers, 2 Type B waste bins and 1 set of single-layer anesthesia box frame. Separate packaging is adopted: main cart package size 800×550×920mm, anesthesia boxes packed individually; net weight 45KG, gross weight 50KG.

Features：

High-quality aluminum alloy profile uprights, high structural strength, compact size and exquisite metallic appearance.
1.0mm electrolytic plate steel-plastic cabinet with antibacterial electrostatic powder coating, rust-resistant, easy to disinfect and antibacterial.
Integrally blow-molded ABS worktop and guardrail with seamless smooth surface; full ABS modular drawers for easy disassembly and cleaning.
Side central control locking device for one-step locking of all drawers, simple operation and improved drug safety management.
Multi-spec drawer combination with removable internal dividers to adjust storage space freely for various medical supplies; three-section silent ball-bearing guide rails guarantee quiet and smooth drawer pulling.
Hidden left-side auxiliary workbench provides extra temporary operating platform for clinical treatment.
Height-adjustable single-row gantry anesthesia rack with 5 transparent flip-top boxes for intuitive classified storage of anesthetics and emergency drugs.
Four Φ100mm anti-winding universal casters with dual brake design, flexible movement and stable directional control.
Complete supporting accessories cover document storage, medical waste sorting and drug management needs of clinical departments.
Main cart and anesthesia boxes packed separately, convenient for logistics transportation and on-site assembly; clear net and gross weight data for shipment arrangement.

Specification：

Category	Item	Specification
Overall Dimension	Cart overall size	750×480×940 mm
Vertical Columns	Material	High-quality aluminum alloy profiles, high strength, compact volume & exquisite appearance
Cabinet Body	Material & Surface Treatment	1.0mm high-quality electrolytic plate, antibacterial electrostatic powder spraying, rust-proof, eco-friendly & antibacterial
Worktop & Drawers	Worktop & Guardrail	Integrally blow-molded ABS
	Drawer Structure	Full ABS modular design
Locking System	Lock Position & Operation	Side-mounted central control lock, simple & convenient operation
Drawer Layout	Drawer Combination	2 small drawers (panel H:68mm) + 2 medium drawers (panel H:138mm) + 1 large drawer (panel H:208mm)
Drawer Fittings	Internal Partition	Built-in dividers for free partitioning, drawers detachable at will
	Guide Rail	Three-section ball bearing silent guide rails
Left Side Accessory	Auxiliary Workbench	Hidden auxiliary workbench
Rear Upper Anesthesia Rack	Structure	Height-adjustable single-row gantry anesthesia box frame
	Anesthesia Boxes	5 transparent flip-top anesthesia boxes
Casters	Parameter	4 pcs Φ100mm anti-winding universal casters, 2 with brakes, flexible pushing & accurate steering
Standard Full Accessories	Document box	1 pc
	Side-hung box	1 pc
	Sharps containers	2 pcs
	Type B waste bins	2 pcs
	Single-layer anesthesia box frame set	1 set
Packaging Information	Main cart package size	800×550×920 mm
	Separate Packing	Anesthesia boxes packed individually
Weight Data	Net weight	45 KG
	Gross weight	50 KG
