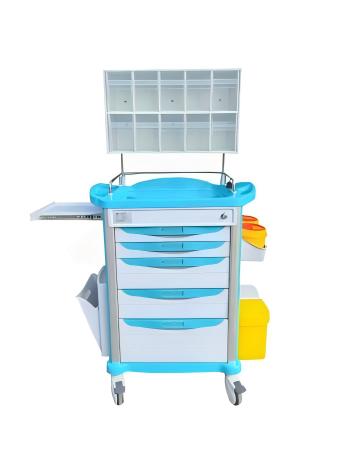

FY-AT750-02 Anesthesia Trolley (New model)

Description

Description：

This multi-functional medical anesthesia trolley is widely applied in operating rooms, emergency departments and ward nursing stations for centralized classified storage of anesthetics, emergency medicines and medical instruments. Its vertical columns are premium aluminum alloy profiles featuring high structural strength, compact volume and elegant metallic texture. The cabinet body adopts steel-plastic composite construction with 1.0mm high-quality electrolytic plate, finished with antibacterial electrostatic powder coating to deliver rust resistance, environmental friendliness and antibacterial performance.

The worktop and guardrail are integrally blow-molded from ABS material with delicate outlook; all drawers are constructed with full ABS modular structure. A side-mounted central control locking device enables simple, unified locking operation. It comes with 2 small drawers (panel height 68mm), 2 medium drawers (panel height 138mm) and 1 large drawer (panel height 208mm). Built-in dividers allow flexible internal partitioning, drawers can be freely disassembled and assembled, and they are fitted with three-section ball-bearing silent slides for smooth, noise-free pulling. A hidden auxiliary worktable is reserved on the left side for temporary clinical operations.

An adjustable double-row gantry anesthesia rack is mounted at the rear upper position of the worktop, equipped with 10 transparent flip-top anesthesia boxes for neat medicine storage. Four Φ100mm anti-winding universal casters (2 with brakes) ensure flexible pushing and precise steering. Standard accessories include 1 document box, 1 side-hung box, 2 sharps containers, 2 Type B waste bins and 1 set of double-layer anesthesia box frame. The main cart is packed in 800×550×920mm carton, while anesthesia boxes are packaged separately. Net weight: 45KG, gross weight: 50KG.

Features：

High-strength aluminum alloy profile uprights, lightweight yet rigid with compact size and exquisite appearance.
1.0mm electrolytic plate steel-plastic cabinet with antibacterial electrostatic powder coating, rust-proof, easy to sanitize and capable of inhibiting bacterial reproduction.
Integrally blow-molded ABS worktop and guardrail with seamless smooth surface; full ABS modular drawers for easy disassembly, cleaning and maintenance.
Side central control lock realizes one-step locking of all drawers, simple operation and improved safety of drug management.
Multi-height drawer combination with removable internal dividers to customize storage space for different medical supplies; three-section silent ball-bearing slides guarantee stable and quiet drawer movement.
Concealed left-side auxiliary worktable provides extra temporary operating platform for on-site nursing and rescue work.
Height-adjustable double-row gantry anesthesia rack with 10 transparent flip-top boxes, enabling visual classified storage of various anesthetics and emergency medicines.
Four Φ100mm anti-winding universal casters with dual brake design, flexible rolling and stable directional control.
Complete supporting accessories fully meet clinical demands of document filing, medical waste sorting and drug centralized management.
Separate packaging for main trolley and anesthesia boxes, convenient for logistics delivery and on-site assembly; clear net and gross weight data for shipment planning.

Specification：

Category	Item	Specification
Overall Size	Cart overall dimensions	750×480×940 mm
Vertical Columns	Material	High-quality aluminum alloy profiles, high strength, compact size & elegant appearance
Cabinet Body	Material & Surface Treatment	1.0mm high-quality electrolytic plate, antibacterial electrostatic powder spraying, rust-proof, eco-friendly & antibacterial
Worktop & Drawers	Worktop & Guardrail	Integrally blow-molded ABS with exquisite appearance
	Drawer Structure	Full ABS modular design
Locking System	Lock Layout	Side-mounted central control lock, simple and convenient operation
Drawer Layout	Drawer Combination	2 small drawers (panel H:68mm) + 2 medium drawers (panel H:138mm) + 1 large drawer (panel H:208mm)
Drawer Fittings	Internal Partition	Built-in dividers for free partitioning, drawers detachable at will
	Slide Rail	Three-section ball bearing silent slides
Left Side Functional Part	Auxiliary Worktable	Hidden auxiliary worktable
Rear Upper Anesthesia Rack	Structure	Height-adjustable double-row gantry anesthesia box frame
	Anesthesia Boxes	10 transparent flip-top anesthesia boxes
Casters	Parameter	4 pcs Φ100mm anti-winding universal casters, 2 with brakes, flexible pushing & accurate steering
Standard Full Accessories	Document box	1 pc
	Side-hung box	1 pc
	Sharps containers	2 pcs
	Type B waste bins	2 pcs
	Double-layer anesthesia box frame set	1 set
Packaging Info	Main cart package size	800×550×920 mm
	Separate Packing	Anesthesia boxes packed individually
Weight Data	Net weight	45 KG
	Gross weight	50 KG
