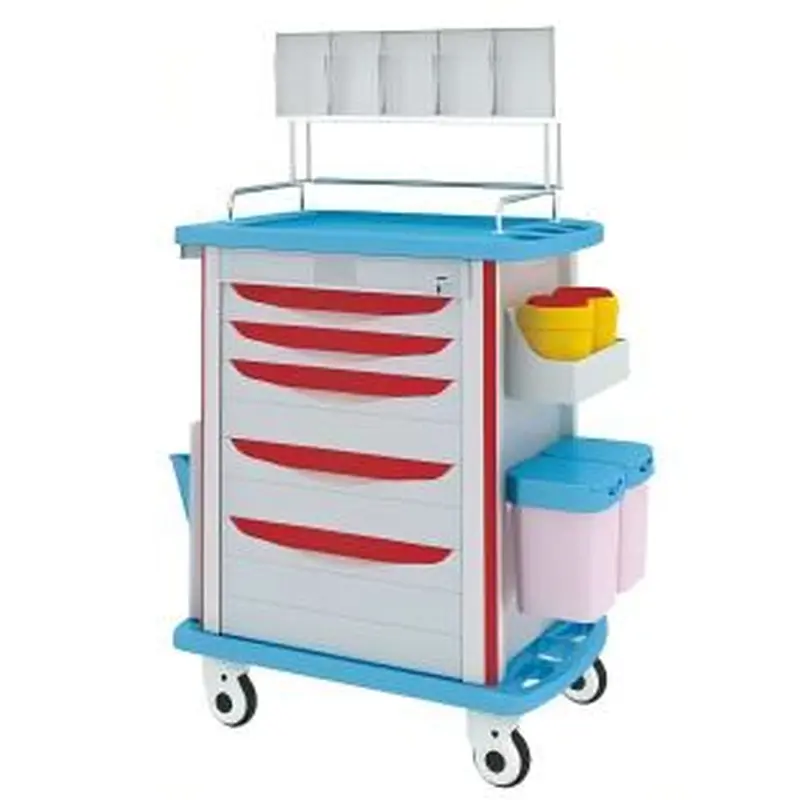

FY-AT750-02 Anesthesia Trolley

Description

Description：

This multi-functional medical trolley is widely used for ward nursing, clinical drug sorting and routine treatment. Its main body is manufactured from ABS engineering plastic, and all drawers adopt full ABS modular structure. The worktop is fitted with a three-sided stainless steel guardrail welded by Φ12 stainless steel bars, featuring sturdy structure and elegant appearance. Supported by plastic-steel uprights, the trolley is equipped with a side-mounted central control lock for easy unified locking operation.

It is equipped with 2 small drawers (68mm height), 2 medium drawers (120mm height) and 1 large drawer (248mm height). Built-in dividers support flexible internal partitioning, all drawers are freely detachable and assembled, and matched with three-section ball-bearing silent slides for smooth pulling. A writing board and a side flip storage box are installed on the left side of the trolley for convenient medical recording and small consumable storage. Five transparent flip-top anesthesia boxes are arranged above the worktop guardrail for classified medicine storage. Four high-quality brand Φ100mm silent anti-winding casters at the bottom deliver flexible pushing and strong load-bearing capacity. Standard accessories include one side-hung box, two sharps containers, two Type B waste bins and one set of single-row anesthesia boxes.

Features：

Main body and full ABS modular drawers are lightweight, corrosion-resistant and easy to clean and disinfect.
Three-sided stainless steel guardrail welded with Φ12 stainless steel bars, solid, delicate and durable.
High-strength plastic-steel uprights form stable frame; side central control lock enables simple and fast locking of all drawers.
Multi-spec drawer combination with adjustable internal dividers for flexible classified storage of various medical supplies; drawers can be disassembled freely with low-noise three-section slides.
Humanized left-side design: writing board for patient record writing + side-turning material box for small nursing supplies.
5 transparent flip-top anesthesia boxes above the guardrail for visual, neat storage of emergency and anesthetic medicines.
Four premium Φ100mm silent anti-winding casters, flexible to move and capable of heavy load.
Complete matched standard accessories satisfy clinical storage, medical waste sorting and drug management demands.

Specification：

Category	Item	Specification
Overall Size	Overall dimensions	750×480×1300 mm
Main Material	Main Body	ABS engineering plastic
	Drawers	Full ABS modular design
Worktop Guardrail	Material & Craft	Three-sided stainless steel fence, welded by Φ12 stainless steel bars
Frame & Locking	Uprights	Plastic-steel vertical columns
	Locking Device	Side-mounted central control lock, simple and convenient operation
Drawer Layout	Drawer Combination	2 small drawers (H:68mm) + 2 medium drawers (H:120mm) + 1 large drawer (H:248mm)
Drawer Accessories	Internal Partition	Built-in dividers for free partitioning; drawers detachable at will
	Slide Rail	Three-section ball bearing silent slides
Left Side Functional Parts	Accessories	Writing board + side-turning material box
Upper Medicine Storage	Anesthesia Boxes	5 transparent flip-top anesthesia boxes above worktop guardrail
Casters	Parameter & Performance	4 pcs high-quality brand silent anti-winding casters, Φ100mm, flexible pushing and large load capacity
Standard Full Accessories	Side-hung box	1 pc
	Sharps containers	2 pcs
	Type B waste bins	2 pcs
	Single-row anesthesia box set	1 set
