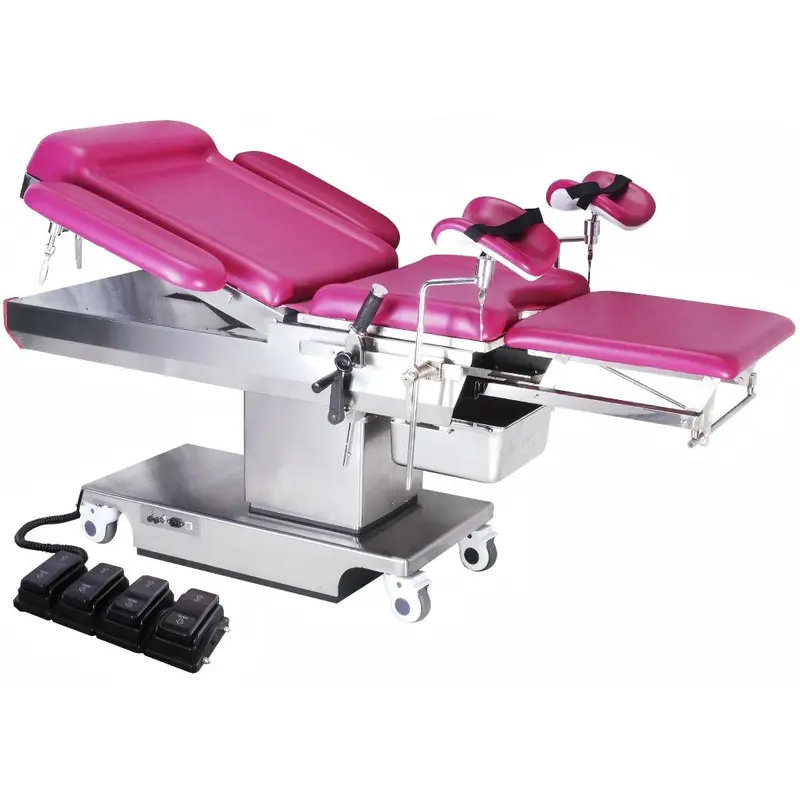

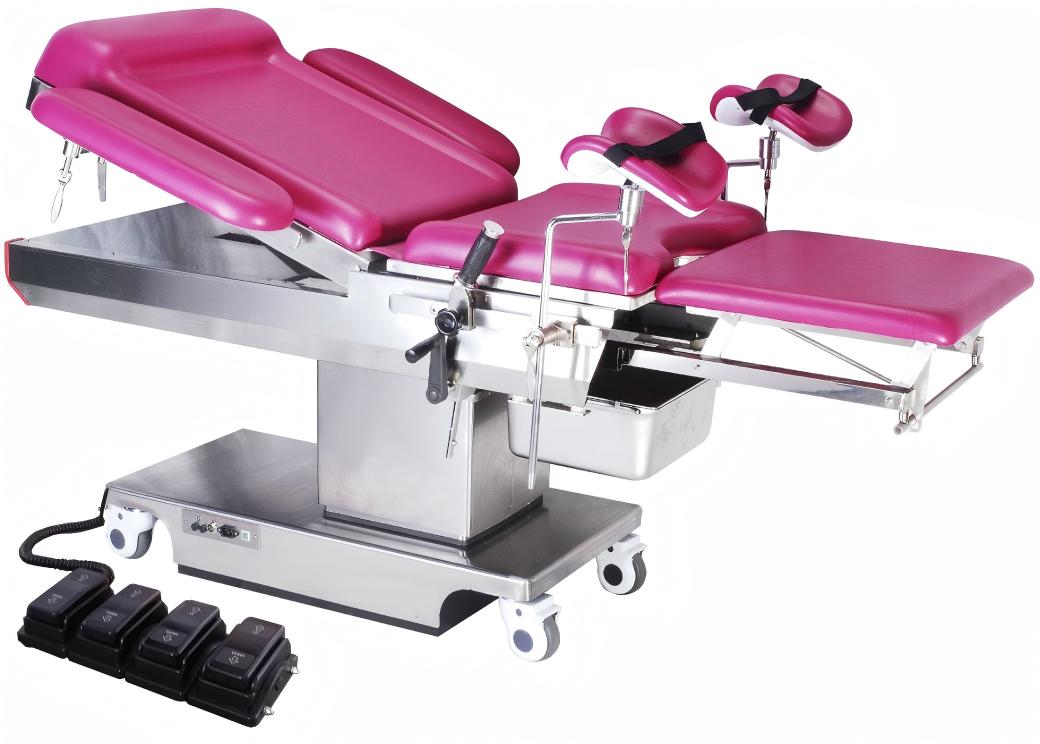

FY-C1280 Multi-functional Delivery Bed

FY-C1280 Multi-functional Delivery Bed

Description

Features:

  • Multi-functional Application: Designed for obstetrics and gynecology scenarios, supporting obstetric delivery, gynecological surgery, routine examination and emergency cesarean section.

  • Electric Adjustable Function: Adopts high-performance electric push rods with low noise and stable operation. Equipped with foot switch to realize electric control of overall lifting, forward/backward tilting, backboard folding and seat board tilting, easy and flexible to operate.

  • High-quality Stainless Steel Material: All outer covers, side panels, dirt basin, bottom cover and column cover are made of 304 stainless steel, which is corrosion-resistant, easy to clean and disinfect, meeting medical hygiene requirements.

  • Hidden Auxiliary Board: Fitted with hidden auxiliary board and elastic handle quick locking device, enabling fast positioning and release, suitable for various delivery operations and tower platform delivery.

  • Emergency Power Supply Design: Built-in battery power display, supporting normal emergency use in case of power failure to ensure continuous medical work.

  • High-performance Mattress: Adopts seamless wrapping technology, with functions of anti-amniotic fluid leakage, anti-fouling, acid and alkali resistance, and ultraviolet resistance.

  • Flexible Position Adjustment: Supports Trendelenburg and reverse Trendelenburg position adjustment, applicable for natural delivery, emergency treatment and various position examinations.

  • Stable Auxiliary Structure: Left and right split leg holders support 180° adjustment, withstand over 15KG torque without loosening. The integrated foldable movable handrail can bear 50KG tension, stable and durable.

  • Flexible Mobile Design: Equipped with hidden casters and foot brake device, realizing flexible movement and reliable positioning.

  • Humanized Dirt Basin: Standard-size dirt basin effectively collects delivery dirt, satisfying clinical use demands.


Specification:

Bed Platform Size:≥1850×600mm
Auxiliary Board Size:≥560×520mm, hidden type with elastic handle quick locking device
Lifting Range

≥750~1000mm

Backboard Folding Angle:≥75°
Seat Board Tilting Angle:≥20°
Forward Tilting Angle:≥10°
Backward Tilting Angle:≥18°
Moving Structure:Equipped with hidden casters and foot brake device
Power Supply Configuration:

Built-in battery power display, supporting emergency use during power failure

Mattress Performance:

Seamless wrapping material, with functions of anti-amniotic fluid leakage, anti-fouling, acid and alkali resistance, and ultraviolet resistance

Position Function:

Supports Trendelenburg and reverse Trendelenburg position adjustment

Leg Holder Parameters:

Left and right split structure, 180° adjustable, withstand torque above 15KG without loosening after locking

Handrail Parameters:

Integrated foldable structure, movable back and forth on side rails, withstand 50KG tension

Dirt Basin Size:

Length 36cm × Width 32cm × Height 15cm

Main Material:304 stainless steel for outer cover, side panels, dirt basin, bottom cover, column cover and side cover
Power Mode:

Driven by electric push rods, electrically controlled for lifting, backboard folding, bed forward and backward tilting, seat board tilting
