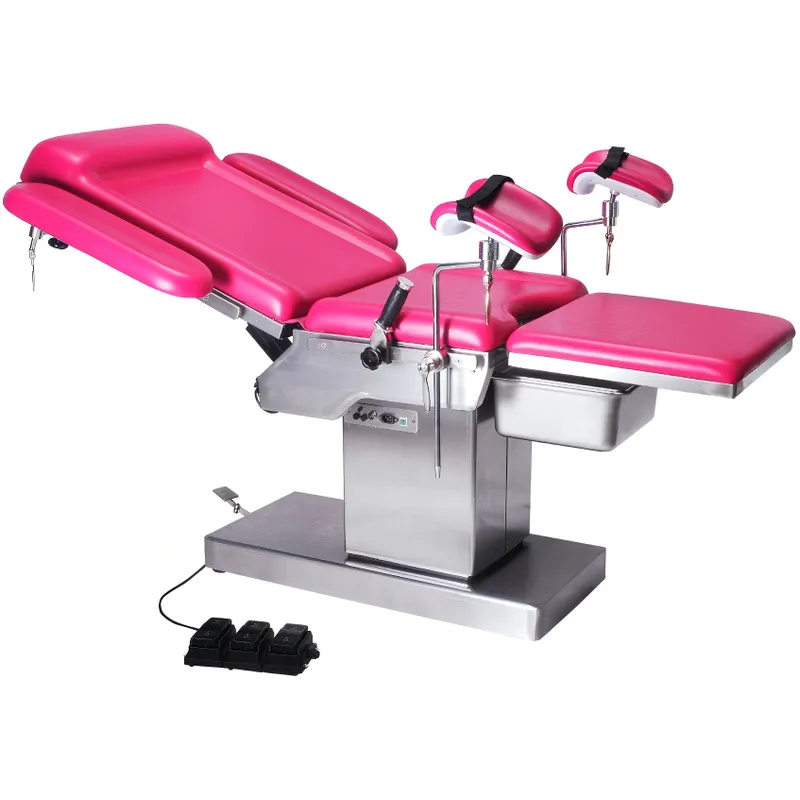

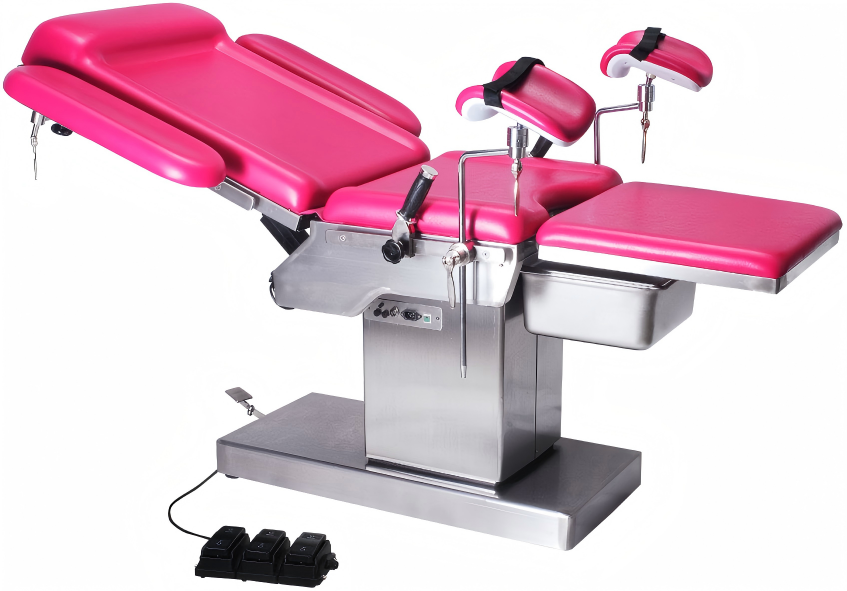

FY--C1280C Multi-functional Delivery Bed

FY--C1280C Multi-functional Delivery Bed

Description

Product Features
  • Multi-functional Medical Application: It is a multi-functional obstetric bed suitable for obstetric delivery, gynecological surgery, routine diagnosis and examination, including emergency cesarean section.

  • Stable Electric Drive System: Equipped with advanced electric push rods for overall lifting, backboard folding, forward and backward tilting. The equipment runs with low noise, stable performance and good working environment adaptability.

  • High-quality Stainless Steel Structure: The outer cover, side panels, dirt basin, bottom cover, column cover and side cover are all made of high-quality 304 stainless steel, featuring beautiful appearance, easy disinfection and cleaning, meeting medical hygiene standards.

  • Humanized Auxiliary Platform: Equipped with a practical auxiliary platform with large expansion angle, which is convenient for gynecological examination and surgical operation.

  • Full Electric Position Adjustment: Electrically controlled lifting, backboard folding and forward/backward tilting functions support delivery in various body positions.

  • Emergency Power Supply Design: Built-in battery power display ensures normal emergency use in case of power failure.

  • High-performance Seamless Mattress: Adopts seamless wrapping process, with functions of anti-amniotic fluid leakage, anti-fouling, acid and alkali resistance, and ultraviolet resistance.

  • Flexible Clinical Posture Adjustment: Supports Trendelenburg and reverse Trendelenburg positions, which is convenient for natural delivery and emergency clinical treatment.

  • Durable Leg Support Structure: Left and right split leg holders support 180° adjustable rotation. It can withstand torque above 15KG without loosening after locking, with strong practicability and simple operation.

  • Stable Movable Handrail: The integrated foldable handrail can move back and forth on the side rail and withstand a tension of 50KG with stable structure.

  • Optional Folding Armrest: The optional up-down folding armrest can swing outward at any angle to adjust to the most comfortable position for patients. It can also be folded upward as a guardrail, improving safety and relieving patients’ tension.

  • Flexible Mobile & Positioning Design: Fitted with hidden casters and foot brake device, realizing flexible movement and convenient positioning.

  • Standard Sanitary Configuration: Equipped with a standard-size dirt basin to effectively collect dirt generated during delivery and meet clinical needs.

Technical Parameters

Bed Platform Size:≥1850×600mm
Auxiliary Platform Size:≥560×520mm
Auxiliary Platform Expansion Angle:≥100°
Bed Lifting Range:≥720~970mm
Backboard Adjustment Angle:-10°~75°
Moving Structure:Hidden casters with foot brake device
Emergency Configuration:Built-in battery power display
Leg Holder Performance:180° adjustable, withstand torque above 15KG without loosening
Handrail Load Capacity:Integrated movable handrail withstands 50KG tension
Optional Accessory:Up-down folding swing armrest
Dirt Basin Size:Length 36cm × Width 32cm × Height 15cm
Maximum Load Weight:135KG
Power Supply:AC 220V, 50Hz
Main Material:304 stainless steel for outer cover, side panels, bottom cover, column cover and side cover
