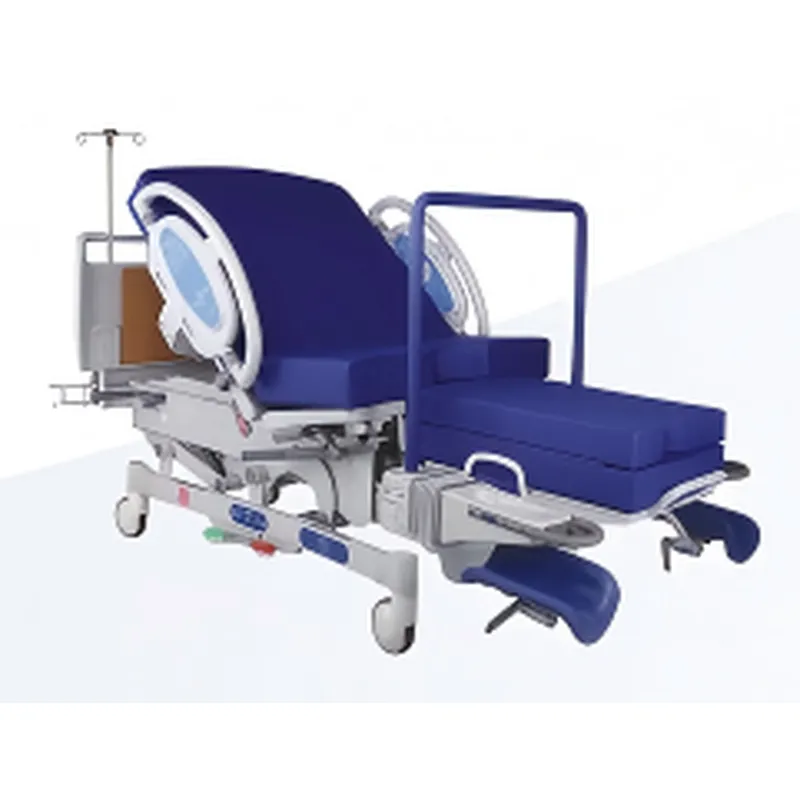

FY-C1280F2 Multi-functional Delivery Bed

FY-C1280F2 Multi-functional Intelligent Delivery Bed

Description

Product Features

  • Multi-function Integration: This intelligent delivery bed integrates waiting, resting, delivery, obstetric care, gynecological examination, diagnosis and gynecological surgery in one unit.

  • Stable Electric Control System: Adopts advanced medical electric control system with smooth operation and low noise in line with international standards. Simple operation effectively reduces nursing workload.

  • Humanized Handrail Design: Equipped with movable hidden handrails with 150mm front and rear adjustable stroke, assisting puerperae in force exertion during delivery.

  • Dual-control Guardrail: One-touch release guardrail with touch control keys inside and outside on both sides for convenient adjustment by both medical staff and patients.

  • Full Electric Touch Control: Luminous dimmable touch buttons on inner and outer guardrails support all functional adjustments, suitable for various environments.

  • Night Light & Music Function: Equipped with sensor night light for automatic ground lighting and USB port for music playback to create a comfortable delivery environment.

  • Power Failure Emergency Function: Built-in battery with three-color power display to ensure normal operation during power outage.

  • Flexible Mobile & Positioning System: Fitted with four 15cm double-locking casters with three-gear adjustment and foot brake. Central braking and directional moving gear ensure flexible and stable positioning.

  • Integrated Delivery Structure: Leg support, foot pedal and delivery table are integrated with the bed. No manual assembly is required when switching from waiting position to delivery position.

  • Ultra-low Starting Height: Low initial bed height facilitates pregnant women to get on and off the bed easily.

  • CPR Rescue Function: Supports cardiopulmonary resuscitation rescue to cope with emergency situations during delivery with stable and reliable structure.

  • Durable Material Configuration: Base, frame and bed surface adopt steel spray plastic and high-quality polymer engineering plastic accessories for stable performance.

  • Collapsible IV Stand: Equipped with foldable infusion stand for convenient clinical use.


Technical Parameters

Overall Bed Dimension

2336×1057mm

Bed Surface Size:1980×900mm
Max Safe Load:230KG
Minimum Bed Height:470mm
Bed Lifting Stroke:≥410mm
Backboard Independent Folding Angle:≥65°
Seat Board Independent Tilting Angle:≥15°
Bed Rear Tilting Angle:≥8°
Seat Board Width:415mm
Leg Height Adjustment Range:0~200mm, adjustable and stoppable at any height
Leg Support Outer Swing Angle:≥90°
Leg Support Folding Angle:≥90°
Handrail Adjustable Stroke

150mm (front and rear movable)

Caster Specification:15cm double-locking casters with three-gear adjustment and directional moving function
Additional Configuration:Sensor night light, USB music player, three-color battery indicator, foldable IV stand
