Description：

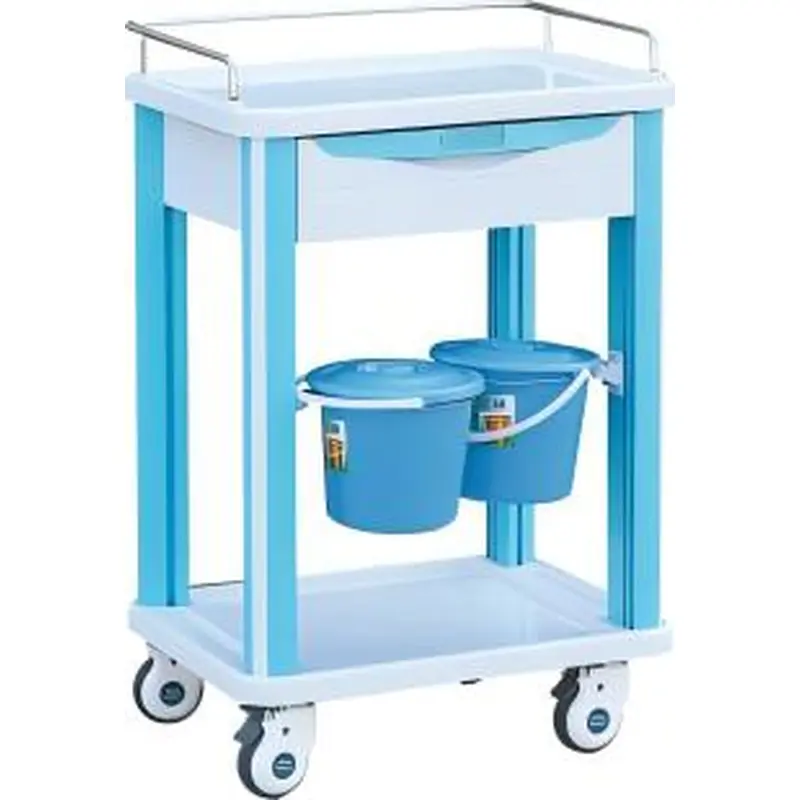

This compact emergency trolley is a lightweight medical cart for hospital emergency rescue, ward medicine storage and routine clinical nursing work. Its main body and drawer are made of ABS engineering plastic with all‑ABS modular drawer design. The worktop is fitted with a three‑sided stainless steel guardrail welded from Φ12 stainless steel bars. The frame adopts ABS uprights with an aluminum alloy support tube for each upright, and two rotatable covered waste buckets are mounted on the uprights. It is equipped with one medium drawer with built‑in dividers for flexible partitioning; the drawer can be freely disassembled and assembled, fitted with 3‑section ball‑bearing silent slides. Four Φ100 mm double‑bearing silent universal anti‑winding casters (2 with brakes) provide flexible movement and heavy load capacity.
Features：
Main body and drawer adopt ABS engineering plastic with all‑ABS modular structure, lightweight, corrosion‑resistant and easy to clean.
Three‑sided worktop guardrail welded by Φ12 stainless steel bars, firm, elegant and durable.
Frame constructed by ABS uprights with individual aluminum alloy support tubes for stable support.
Two rotatable covered waste buckets installed on uprights to keep the cart clean and tidy.
Single medium drawer layout with built‑in dividers to realize flexible compartmentalization of different medical supplies.
Drawer supports free disassembly and assembly, matched with 3‑section silent telescopic slides for smooth, noise‑free pulling.
Four Φ100 mm double‑bearing silent universal anti‑winding casters including 2 braked casters, featuring flexible movement and high load capacity.
Specification：
| Category | Item | Specification |
|---|
| Overall Size | Overall dimensions | 620×470×910 mm |
| Main Material | Main Body | ABS engineering plastic |
| Drawer Structure | All‑ABS modular design |
| Worktop Guardrail | Material & Craft | Φ12 stainless steel bars, welded three‑sided guardrail |
| Frame Structure | Uprights | ABS uprights, each fitted with one aluminum alloy support tube |
| Upright Accessories | Waste Containers | Two rotatable covered waste buckets mounted on uprights |
| Drawer Layout | Total Drawer | 1 medium drawer |
| Medium Drawer | Outer dimensions | 479×390×138 mm |
| Inner dimensions | 424×330×110 mm |
| Panel height | 138 mm |
| Drawer Fittings | Internal Partition | Built‑in dividers for flexible partitioning |
| Disassembly Performance | Drawer can be disassembled and assembled freely |
| Slide Rail | 3‑section silent telescopic slides |
| Casters | Specification | Four Φ100 mm double‑bearing silent universal anti‑winding casters, 2 with brakes |
| Performance | Flexible movement and large load capacity |
