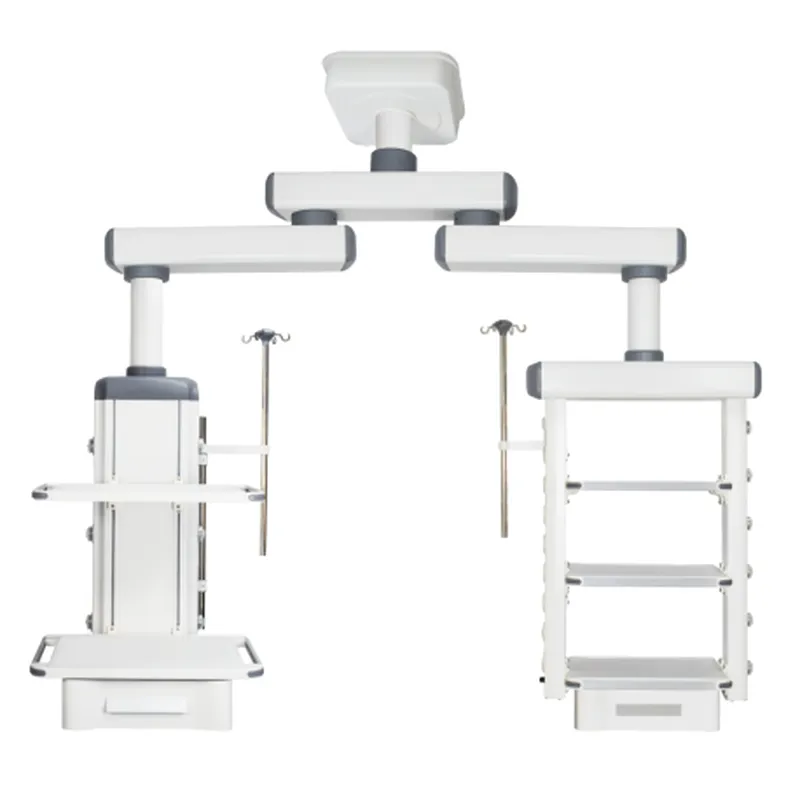

1. Working power supply: AC220V, 50Hz;
2, single arm movement range (radius) : 835mm (can be configured according to the requirements of the hospital) arm thickness of 10mm;
3, horizontal rotation Angle: 0 ~ 340°, the transverse arm and the terminal box can be respectively or simultaneously horizontal rotation;
4, surgical tower: horizontal rotation Angle: 0 ~ 340°, the transverse arm and the terminal box can be respectively or simultaneously horizontal rotation.
(1) Instrument platform: 2 layers (height adjustable) 600mm×450mm silicon gel Angle protection anti-collision design
(2) Gas terminal standard configuration: (German standard 2 oxygen,2 suction,2 air) can be configured according to the hospital
a, interface color and shape is different, with anti-error function; b. More than 20,000 times of insertion and removal;
c, the use of secondary seal, with three states (on, off, pull), with gas maintenance;
(3) Multi-functional power socket: 10 (according to the hospital configuration), 220V
(4) Ground terminal: 2; (5) Network interface: 1;
(6) 1 drawer; (7) Stainless steel infusion rod frame 1;
(8) Rotatable: 0 ~ 340°; (9) dry section tower net load ≥180kg;
5, cavity mirror tower: horizontal rotation Angle: 0 ~ 340°, the transverse arm and the terminal box can be respectively or simultaneously horizontal rotation.
(1) Instrument platform: 3 layers (height adjustable) 560mm×550mm silicon gel Angle protection anti-collision design
(2) Gas terminal standard configuration: (German standard 2 oxygen, 2 suction, 2 air) can be configured according to the hospital
a, with anti-error function; b. More than 20,000 times of insertion and removal;
c, the use of secondary seal, with three states (on, off, pull), with gas maintenance;
(3) Multi-functional power sockets: 8 (can be configured according to the hospital), 220V;
(4) Two ground terminals; (5) Network interface: 1;
(6) 1 drawer; (7) Stainless steel infusion rod frame 1;
(8) Rotatable: 0 ~ 340°; (9) dry section tower net load ≥180kg;
6. The dry section power interface is at the back of the tower body, the air source is distributed on both sides of the tower body, and the wet section power and air source interface is at both sides of the tower body, fully realizing the separation of electricity and gas to ensure the safe use of equipment;
7, the main material is made of high-strength aluminum alloy profiles;
8. Electrostatic spraying is used for surface treatment.
