1. Working power supply: AC220V, 50Hz;

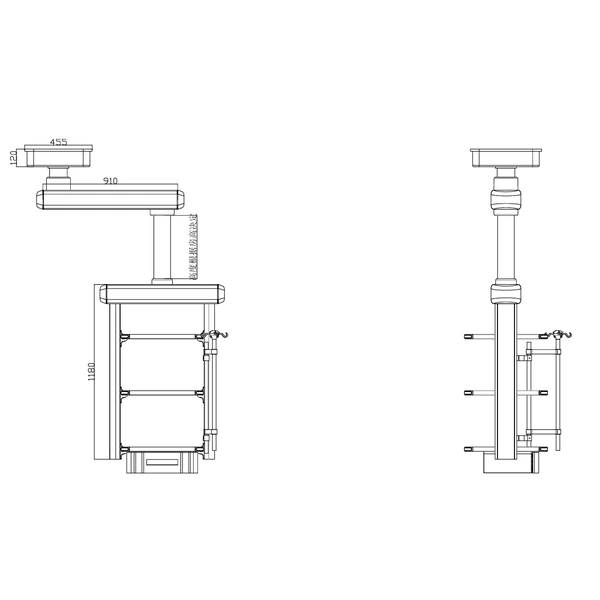

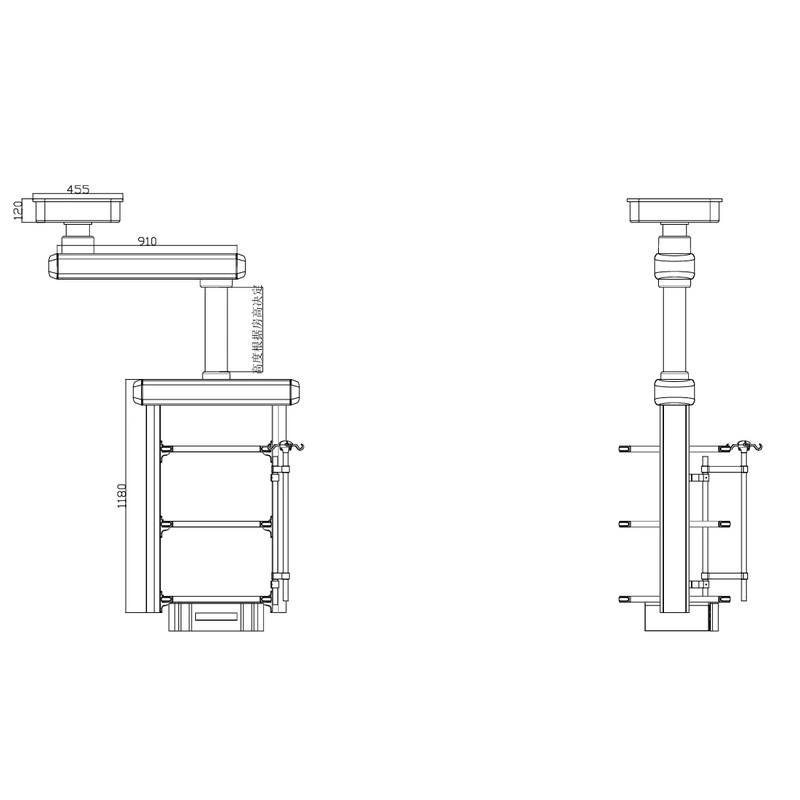

2, the movement range of the transverse arm (radius) : 700-1100mm (can be configured according to the requirements of the hospital), the thickness of the transverse arm > 10mm;
2, horizontal rotation Angle: 0 ~ 340°, the transverse arm and the terminal box can be respectively or simultaneously horizontal rotation;
4, net load ≥220kg;

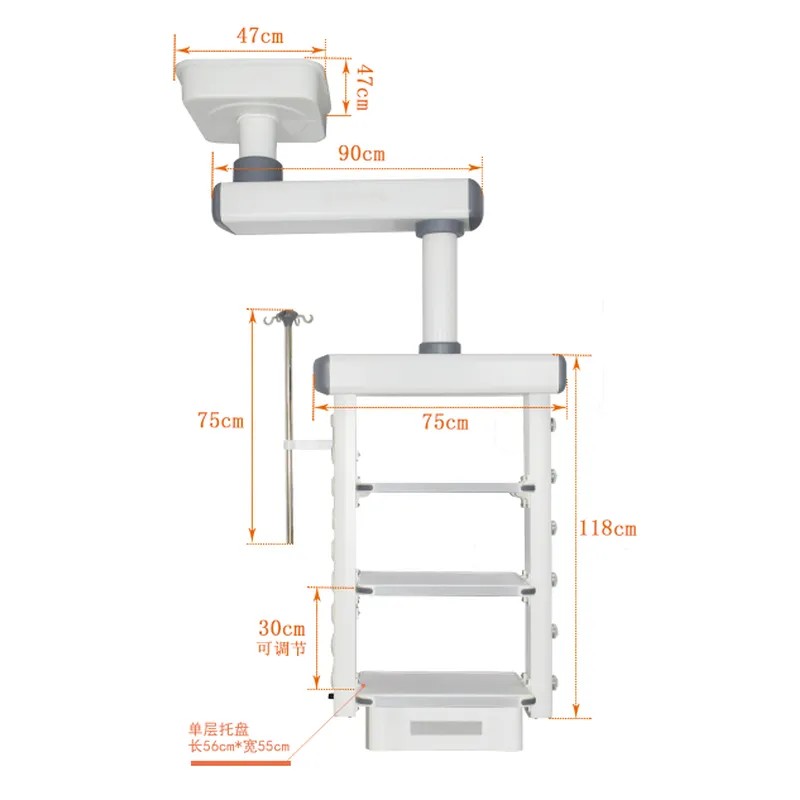

5, instrument platform: 3 layers (height adjustable) 560mm*550mm silicon gel Angle protection anti-collision design;
6, gas interface configuration (German standard 2 oxygen 2 suction 2 air or according to the hospital configuration) :
a, interface color and shape is different, with anti-error function;
b. More than 20,000 times of insertion and removal;
c, the use of secondary seal, with three states (on, off, pull), with gas maintenance;
7, power sockets: 8, 220V, 10A; 1 network interface; Ground terminal: 2;
8. 1 drawer; Stainless steel adjustable infusion rod frame 1;
9, the power supply and air source interface on both sides of the tower body, fully realize the separation of electricity and gas, to ensure the safe use of equipment;
10, surface treatment using electrostatic spraying;
11. The main material is made of high-strength aluminum alloy profiles;

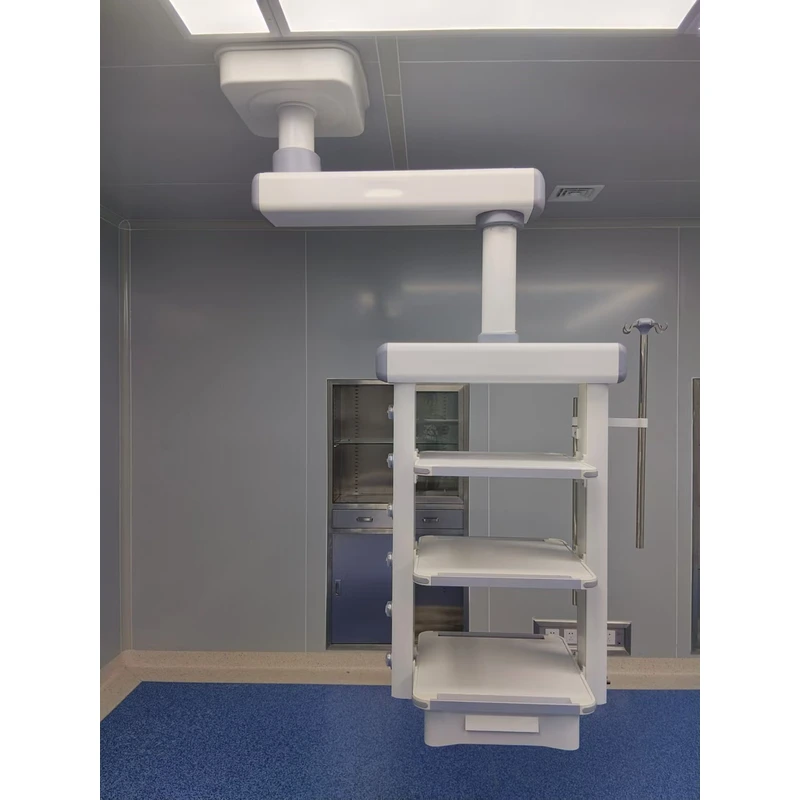

12, ceiling installation, stable and firm.
