Description：

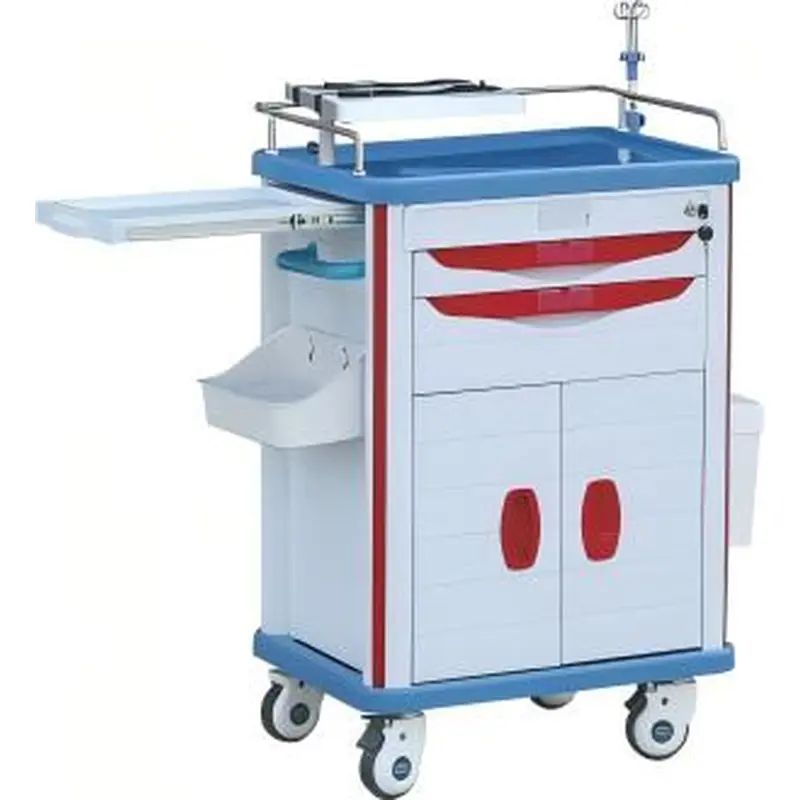

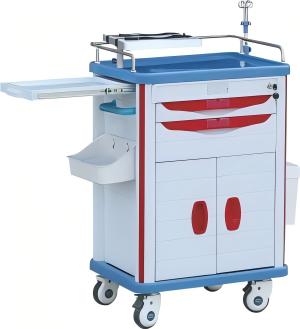

This compact emergency trolley is a lightweight medical cart used for hospital emergency rescue, ward medicine storage and daily clinical nursing operations. Its main body and drawers are manufactured from ABS engineering plastic with all‑ABS modular drawer design. The worktop is fitted with a welded three‑sided stainless steel guardrail, and a central locking device is mounted on the side for easy operation. It is equipped with one small drawer and one medium drawer furnished with built‑in detachable dividers and 3‑section ball‑bearing silent slides; drawers support free disassembly and assembly. The lower part adopts a combined storage structure of drawers and cabinet door with a 420 mm high cabinet for categorized storage of medical drugs and instruments. Full standard rescue accessories are provided, including telescopic infusion pole, oxygen cylinder bracket, resuscitation board and 220V power socket with cable. Four Φ100 mm anti‑winding swivel casters (2 with brakes) deliver smooth pushing and precise steering. The trolley is packed separately with complete dimensional and weight specifications for shipment.
Features：
Main body and drawers adopt ABS engineering plastic with all‑ABS modular structure, lightweight, corrosion resistant and easy to clean.
The three‑sided worktop guardrail is welded from Φ12 stainless steel bars, solid, delicate and aesthetically pleasing.
Side‑mounted central locking device realizes simple and quick locking operation.
Drawer layout includes 1 small drawer and 1 medium drawer; built‑in dividers allow flexible partitioning for different medical supplies.
Drawers can be disassembled and assembled freely, matched with 3‑section ball‑bearing silent slides for quiet and smooth pulling.
Combined storage design of drawers and cabinet door with cabinet height of 420 mm, offering large space for classified storage of medicines and instruments.
Four Φ100 mm anti‑winding swivel casters with 2 braking casters, ensuring flexible movement and stable directional control.
Complete standard supporting accessories satisfy integrated demands of storage, emergency treatment and power supply.
Miniature overall size with low net weight of 30.4 KG, independent packaging with clear packaging size and gross weight data.
Specification：
| Category | Item | Specification |
|---|
| Overall Size | Overall dimensions | 620×470×910 mm |
| Main Material | Main Body | ABS engineering plastic |
| Drawer Structure | All‑ABS modular design |
| Worktop Guardrail | Material & Craft | Φ12 stainless steel bars, welded three‑sided guardrail |
| Locking System | Locking Device | Side‑mounted central lock, simple operation |
| Drawer Layout | Total Drawers | 1 small drawer + 1 medium drawer |
| Small Drawer | Outer dimensions | 479×390×68 mm |
| Inner dimensions | 424×330×50 mm |
| Panel height | 68 mm |
| Medium Drawer | Outer dimensions | 479×390×138 mm |
| Inner dimensions | 424×330×110 mm |
| Panel height | 138 mm |
| Drawer Fittings | Internal Partition | Built‑in dividers for flexible partitioning |
| Disassembly Performance | Drawers can be disassembled and assembled freely |
| Slide Rail | 3‑section ball‑bearing silent slides |
| Lower Storage | Structure | Combined drawers & cabinet door |
| Cabinet height | 420 mm |
| Casters | Specification | Four Φ100 mm anti‑winding swivel casters, 2 with brakes |
| Standard Full Accessories | Side‑hung box | 1 pc |
| Type B waste bin | 1 pc |
| Rotating tray | 1 pc |
| Telescopic infusion pole set | 1 set |
| Oxygen cylinder bracket | 1 pc |
| Resuscitation board | 1 pc |
| 220V power socket set with cable | 1 set |
| Packaging Info | Packaging dimensions | 740×550×1050 mm |
| Weight Data | Trolley net weight | 30.4 KG |
| Packed gross weight | 36 KG |
