Description：

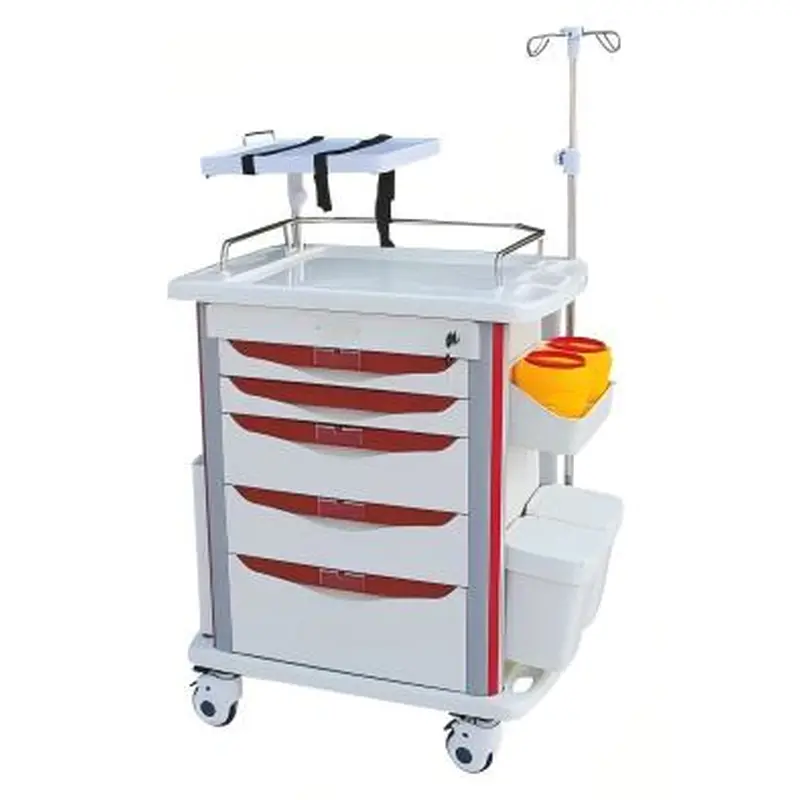

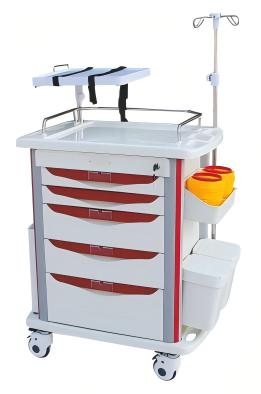

This emergency trolley is a lightweight medical cart for hospital emergency rescue, ward medicine storage and daily clinical nursing work. Its main body and drawers adopt ABS engineering plastic and full ABS modular structure. The worktop is fitted with welded three-sided stainless steel guardrail, supported by plastic-steel uprights and equipped with side-mounted central locking device. All drawers are fitted with 3-section ball-bearing silent slides and built-in detachable dividers for flexible classified storage, and drawers can be freely disassembled and assembled. It is equipped with left-side writing board, flip-open material box and complete standard rescue accessories including telescopic infusion pole, oxygen cylinder bracket, resuscitation board and wired 220V power socket. Four Φ100 mm anti-winding swivel casters (2 with brakes) ensure smooth pushing and stable steering. The trolley adopts independent packaging with complete dimension and weight parameters for delivery.
Features：
Main body and drawers are made of ABS engineering plastic with full ABS modular design, lightweight, corrosion-resistant and easy to clean.
Three-sided guardrail on worktop is welded by Φ12 stainless steel bars, firm, beautiful and durable.
Plastic-steel upright support frame; side central locking device for simple and fast locking operation.
5-layer drawer layout (2 small, 2 medium, 1 large) with unified outer width and depth; built-in removable dividers support flexible compartment partitioning for various medical supplies.
Drawers are detachable and reassemblable at will, matched with 3-section ball-bearing silent slides for quiet and smooth pulling.
Left side integrates writing board and flip-open material box to facilitate medical recording and storage of small nursing articles.
Four Φ100 mm anti-winding swivel casters including 2 braked casters, realizing flexible movement and precise directional control.
Complete standard supporting accessories meet integrated demands of storage, emergency rescue and power supply.
Lightweight overall structure with net weight of 44KG, separate package with clear packaging size and gross weight data.
Specification：
| Category | Item | Specification |
|---|
| Overall Size | Overall dimensions | 750×480×930 mm |
| Main Material | Main Body | ABS engineering plastic |
| Drawer Design | All‑ABS modular design |
| Worktop Guardrail | Material & Craft | Φ12 stainless steel bars, welded three‑sided guardrail |
| Body Frame & Lock | Uprights | Plastic‑steel uprights |
| Locking Device | Side‑mounted central lock, easy operation |
| Drawer Layout | Total Drawer Quantity | 2 small drawers + 2 medium drawers + 1 large drawer |
| Small Drawer | Outer dimensions | 479×390×68 mm |
| Inner dimensions | 424×330×50 mm |
| Panel height | 68 mm |
| Medium Drawer | Outer dimensions | 479×390×138 mm |
| Inner dimensions | 424×330×110 mm |
| Panel height | 138 mm |
| Large Drawer | Outer dimensions | 479×390×208 mm |
| Inner dimensions | 424×330×175 mm |
| Panel height | 208 mm |
| Drawer Fittings | Internal Partition | Built‑in dividers for flexible partitioning |
| Disassembly Performance | Drawers can be disassembled and assembled at any time |
| Slide Rail | 3‑section ball‑bearing silent slides |
| Left Side Functions | Fittings | Writing board + flip‑open material box |
| Casters | Parameter | Four Φ100 mm anti‑winding swivel casters, 2 with brakes |
| Standard Complete Accessories | Side‑hung box | 1 pc |
| Type B waste bins | 2 pcs |
| Rotating tray | 1 pc |
| Telescopic infusion pole set | 1 set |
| Oxygen cylinder bracket | 1 pc |
| Resuscitation board | 1 pc |
| 220V power socket set with cable | 1 set |
| Packaging Information | Packaging dimensions | 780×560×940 mm |
| Weight Data | Trolley net weight | 44 KG |
| Packed gross weight | 49.6 KG |
