Description：

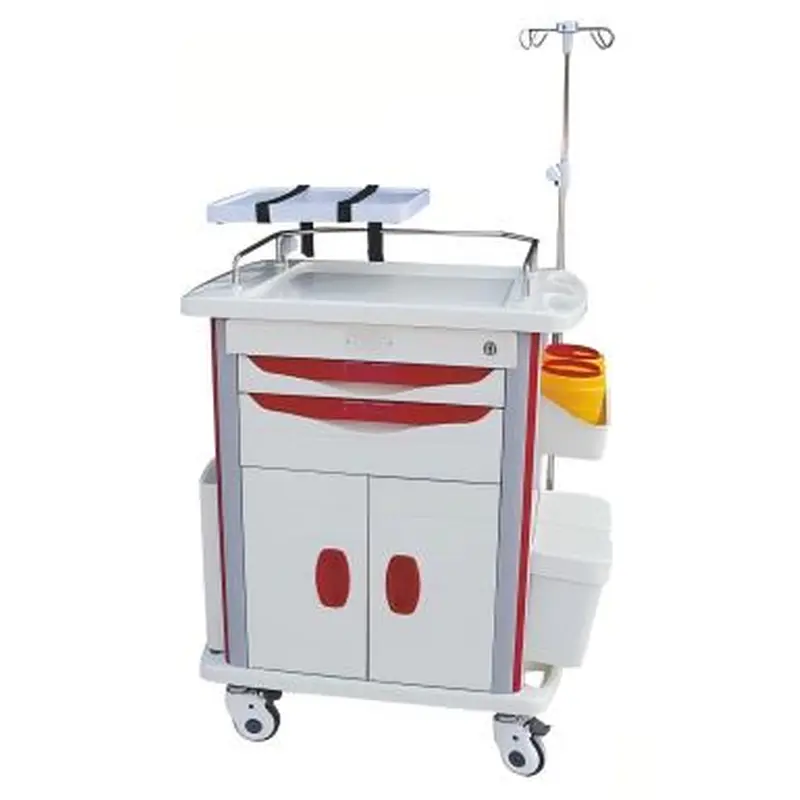

This emergency trolley is a lightweight medical cart applied to hospital emergency rescue, ward medicine storage and daily clinical nursing work. Its main body and drawers are constructed from ABS engineering plastic with full ABS modular drawer design. The worktop is fitted with welded three-sided stainless steel guardrail, supported by plastic-steel uprights and equipped with side-mounted central locking device. It is equipped with one small drawer and one medium drawer with built-in detachable dividers and 3-section ball-bearing silent slides; drawers support free disassembly and assembly, with double-door storage cabinet arranged under the drawers. The left side is equipped with writing board and flip-open material box, matched with complete standard rescue accessories including telescopic infusion pole, oxygen cylinder bracket, resuscitation board and 220V power socket with cable. Four Φ100 mm anti-winding swivel casters (2 with brakes) enable smooth pushing and precise steering. The trolley adopts separate packaging with complete dimensional and weight parameters for transportation.
Features：
Main body and drawers are made of ABS engineering plastic with all-ABS modular design, lightweight, anti-corrosion and easy to clean.
Three-sided guardrail of the worktop is welded by Φ12 stainless steel bars, sturdy, exquisite and beautiful.
Plastic-steel upright support frame; side central locking device for simple and convenient locking operation.
Drawer configuration: 1 small drawer + 1 medium drawer, equipped with built-in dividers to realize flexible partition storage of medical supplies.
Drawers can be freely disassembled and assembled, fitted with 3-section ball-bearing silent slides for smooth and noise-free drawing; double-door storage cabinet under drawers provides extra storage space.
Left side integrates writing board and flip-open material box, convenient for medical recording and storing small nursing supplies.
Four Φ100 mm anti-winding swivel casters including 2 braked casters, smooth to push with stable directional control.
Complete standard supporting accessories satisfy integrated demands of storage, emergency treatment and power supply.
Lightweight structure with net weight 33.6KG, independent package with clear packaging size and gross weight data.
Specification：
| Category | Item | Specification |
|---|
| Overall Size | Overall dimensions | 750×480×930 mm |
| Main Material | Main Body | ABS engineering plastic |
| Drawer Structure | All‑ABS modular design |
| Worktop Guardrail | Material & Craft | Φ12 stainless steel bars, welded three‑sided guardrail |
| Body Frame & Lock | Uprights | Plastic‑steel uprights |
| Locking System | Side‑mounted central lock, easy operation |
| Drawer Layout | Total Drawers | 1 small drawer + 1 medium drawer |
| Small Drawer | Outer dimensions | 479×390×68 mm |
| Inner dimensions | 424×330×50 mm |
| Panel height | 68 mm |
| Medium Drawer | Outer dimensions | 479×390×138 mm |
| Inner dimensions | 424×330×110 mm |
| Panel height | 138 mm |
| Drawer Fittings | Internal Partition | Built‑in dividers for flexible partitioning |
| Disassembly Performance | Drawers can be disassembled and assembled freely |
| Slide Rail | 3‑section ball‑bearing silent slides |
| Under Drawer Storage | Structure | Double‑door design |
| Left Side Functions | Fittings | Writing board + flip‑open material box |
| Casters | Specification | Four Φ100 mm anti‑winding swivel casters, 2 with brakes |
| Standard Full Accessories | Side‑hung box | 1 pc |
| Type B waste bins | 2 pcs |
| Rotating tray | 1 pc |
| Telescopic infusion pole set | 1 set |
| Oxygen cylinder bracket | 1 pc |
| Resuscitation board | 1 pc |
| 220V power socket set with cable | 1 set |
| Packaging Info | Packaging dimensions | 780×560×940 mm |
| Weight Parameter | Trolley net weight | 33.6 KG |
| Packed gross weight | 39.2 KG |
