Description：

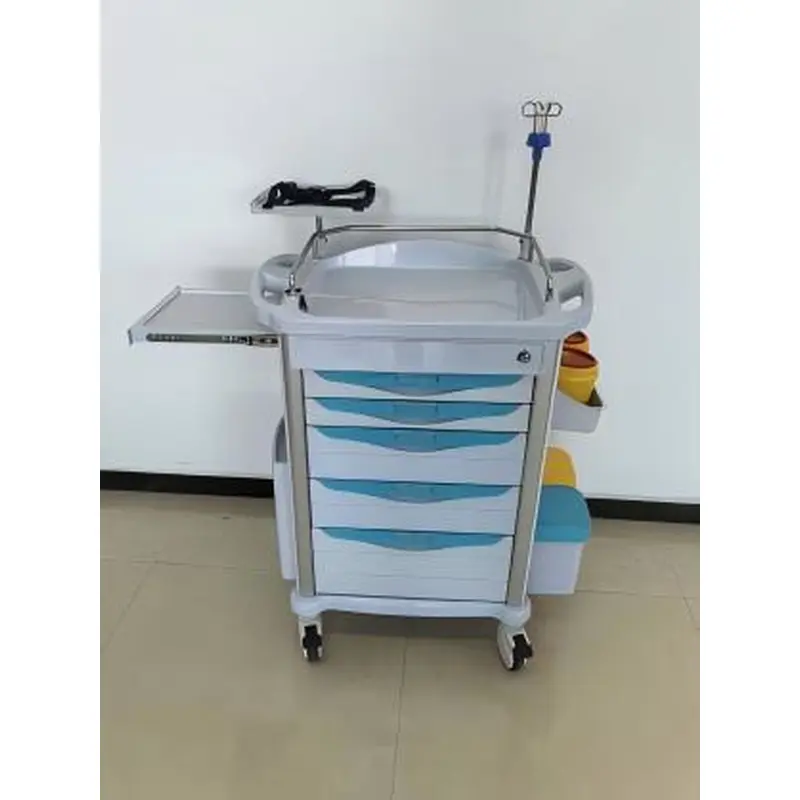

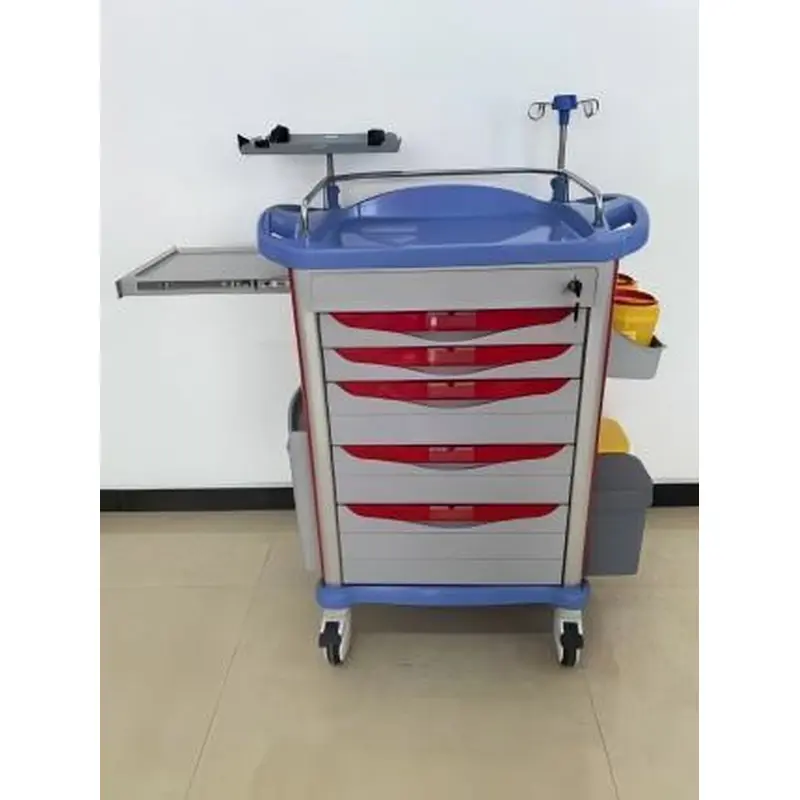

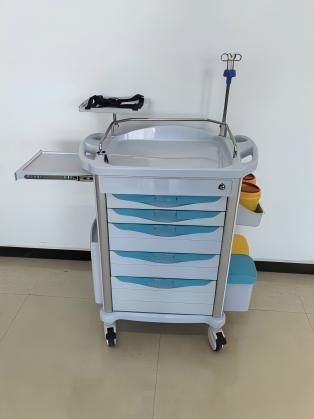

This emergency trolley is a multi-functional medical cart for hospital emergency rescue, clinical drug management and ward nursing stations. It adopts high-strength aluminum alloy profile frame and 1.0 mm electrolytic plate steel-plastic cabinet body treated with antibacterial electrostatic powder coating. The worktop is one-piece blow-molded ABS with optional stainless steel guardrails, and the drawers are all-ABS modular structure. Equipped with front central lock, left-side writing board & document box, and right-side side-hung box, sharps containers and waste bins, it has 5-layer drawers with built-in detachable dividers and 3-section ball-bearing silent slides for flexible classified storage. Complete standard rescue accessories are matched, and four plug-in Φ100 mm anti-winding swivel casters (2 with brakes) realize smooth movement and precise steering. The trolley is packed separately with complete size and weight parameters for delivery.
Features：
Frame made of high-quality aluminum alloy profiles, high strength, compact structure with elegant and delicate look.
Steel-plastic cabinet body made of 1.0 mm thick electrolytic plate; antibacterial electrostatic powder coating provides rust-proof, eco-friendly and antibacterial performance.
One-piece blow-molded ABS worktop and guardrail base, stainless steel guardrails for worktop are optional; drawers adopt full ABS modular design.
Front-mounted central locking device for simple and convenient operation.
Left side fitted with writing board and document box for medical record storage; right side equipped with side-hung box, sharps containers and waste bins for classified waste disposal.
Drawer layout: 2 small, 2 medium and 1 large drawers, with built-in dividers for flexible partitioning of medical supplies. Drawers can be freely disassembled and assembled, fitted with 3-section ball-bearing silent slides for quiet and smooth pulling.
Four plug-in Φ100 mm anti-winding swivel casters including 2 braked casters, featuring smooth movement and accurate steering.
Comprehensive standard configuration covers storage, emergency rescue, waste treatment and power supply to meet full clinical needs.
Net weight 38 KG with lightweight design, independent packaging with clear packaging dimensions and gross weight data.
Specification：
| Category | Item | Specification |
|---|
| Overall Size | Overall dimensions | 750×480×940 mm |
| Frame | Material | High-quality aluminum alloy profiles, high strength, compact, elegant and delicate appearance |
| Cabinet Body | Material | 1.0 mm high-quality electrolytic plate, steel-plastic composite cabinet |
| Surface Treatment | Antibacterial electrostatic powder coating, rust-proof, eco-friendly and antibacterial |
| Worktop & Drawers | Craft | One-piece blow-molded ABS worktop and guardrails; stainless steel guardrails optional |
| Drawer Structure | All-ABS modular design |
| Locking System | Lock Position & Operation | Front-mounted central lock, easy to operate |
| Side Functional Accessories | Left Side | Writing board + document box |
| Right Side | Side-hung box, sharps containers, waste bins |
| Drawer Layout | Total Drawers | 2 small drawers + 2 medium drawers + 1 large drawer |
| Small Drawer | Outer dimensions | 479×390×68 mm |
| Inner dimensions | 424×330×50 mm |
| Panel height | 68 mm |
| Medium Drawer | Outer dimensions | 479×390×138 mm |
| Inner dimensions | 424×330×110 mm |
| Panel height | 138 mm |
| Large Drawer | Outer dimensions | 479×390×208 mm |
| Inner dimensions | 424×330×175 mm |
| Panel height | 208 mm |
| Drawer Fittings | Internal Partition | Built-in dividers for flexible partitioning |
| Disassembly Performance | Drawers can be disassembled and assembled freely |
| Slide Rail | 3-section ball-bearing silent slides |
| Casters | Specification | Four Φ100 mm plug-in anti-winding swivel casters, 2 with brakes |
| Mobility | Smooth movement and accurate steering |
| Standard Full Accessories | Drawers | 2 small, 2 medium, 1 large |
| Writing board | 1 pc |
| Document box | 1 pc |
| Side-hung box | 1 pc |
| Sharps containers | 2 pcs |
| Waste bins | 2 pcs |
| Rotating tray | 1 pc |
| Telescopic infusion pole set | 1 set |
| Oxygen cylinder bracket | 1 pc |
| Resuscitation board | 1 pc |
| 220V power socket set with cable | 1 set |
| Packaging Information | Packaging dimensions | 780×550×910 mm |
| Weight Data | Trolley net weight | 38 KG |
| Packed gross weight | 42.6 KG |
