Description：

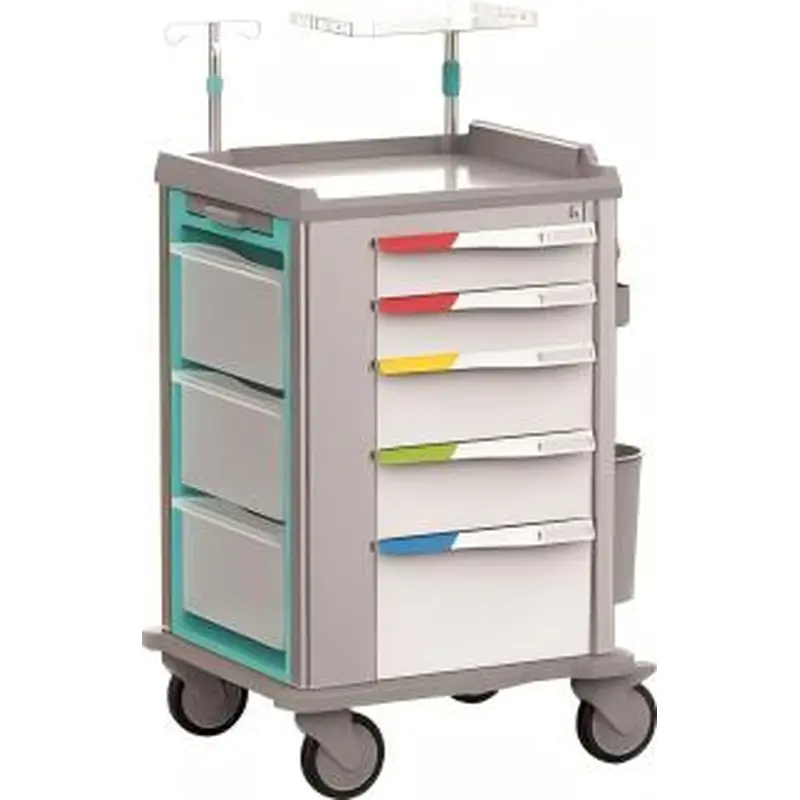

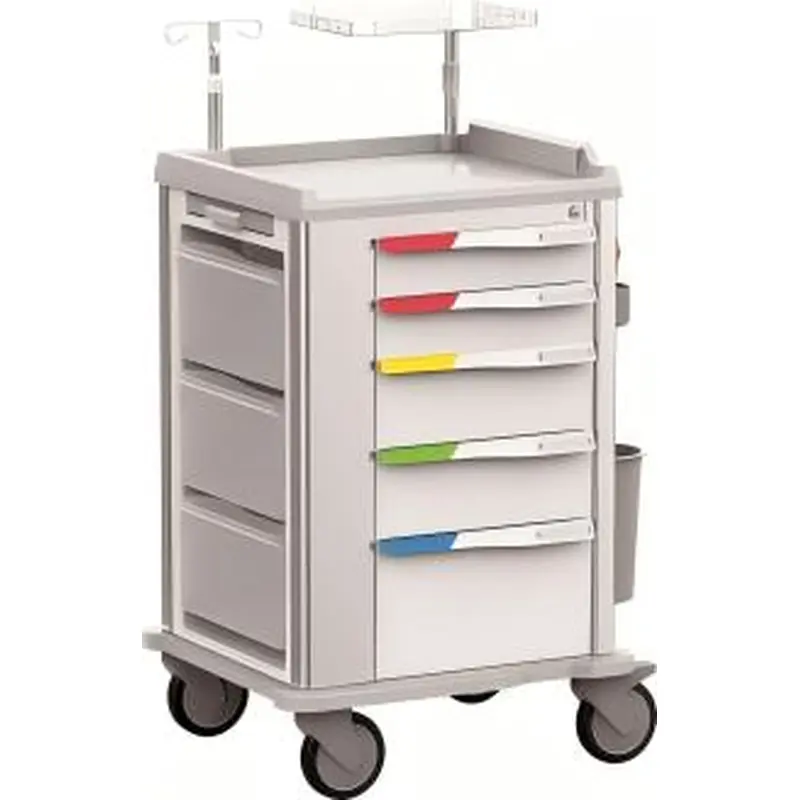

This luxury emergency trolley is a full aluminum medical cart designed for emergency treatment, ward rescue and clinical medicine storage. It adopts one-piece vacuum molded ABS worktop and integrated ABS body panels, equipped with multi-layer classified drawers, transparent storage boxes, resuscitation board, writing board, oxygen cylinder holder, telescopic rotating infusion stand and tray. Fitted with four imported silent anti-winding casters and side central lock, the trolley realizes color-coded medicine management via detachable multi-color drawer handles, meeting all emergency storage and operation demands in hospitals.
Features：
Integrated one-piece vacuum forming ABS worktop with three-side raised guardrails and a side push handle; internal usable guardrail size 520*480 mm.
Matching worktop accessories: telescopic rotating infusion stand and extendable rotating tray (extensible range 370290 mm to 455290 mm).
Dual side functional panels: left built-in ABS writing board for medical recording, right built-in resuscitation board for emergency rescue.
Full aluminum oxidized frame and high-strength aluminum alloy uprights for stable, lightweight and attractive structure.
One-piece molded ABS left & right body panels; rear integrated ABS oxygen cylinder holder with catheter storage space to save room.
One-piece molded anti-collision ABS bottom plate for equipment protection and neat appearance.
Multi-functional storage configuration: 3 detachable flip-top transparent PP storage boxes on left, 1 side-hung box plus 2 waste bins on right.
Five-layer ABS injection molding drawers (2 small, 2 medium, 1 large) with matched internal and external dimensions.
Removable ABS drawer handles supporting color-coded emergency medicine classification, customizable handle colors for clinical use.
Four Φ125 mm imported Desheng silent anti-winding casters with right-side central locking system for easy, safe braking operation.
Specification：
| Category | Item | Specification |
|---|
| Overall Size | Overall dimensions | 6105501020 mm |
| Worktop | Material & Craft | Integrated ABS, one-piece vacuum forming with three-side guardrails |
| Auxiliary Design | Right-side push handle |
| Internal usable dimension of guardrails | 520*480 mm |
| Worktop Accessories | Infusion Stand | Telescopic rotating type |
| Rotating Tray | Extensible from 370290 mm to 455290 mm |
| Side Panel Functions | Left Panel | Built-in ABS writing board |
| Right Panel | Built-in resuscitation board |
| Frame System | Frame Material | Full aluminum with surface oxidation treatment |
| Uprights | High-quality aluminum alloy |
| Body Panels | Side Panels | ABS one-piece molding |
| Rear Structure | Integrated one-piece ABS oxygen cylinder holder & catheter storage space |
| Bottom Plate | Material & Structure | ABS one-piece molding with anti-collision structure |
| Side Storage | Left Storage | 3 flip-top transparent PP boxes, size 370125190 mm, detachable |
| Right Storage | 1 side-hung box + 2 waste bins |
| Drawer Configuration | Total Layers | 5 layers (2 small, 2 medium, 1 large) |
| Drawer Material | ABS injection molding |
| Small drawer outer size | 405440100 mm |
| Small drawer inner size | 34540090 mm |
| Medium drawer outer size | 405440150 mm |
| Medium drawer inner size | 345400140 mm |
| Large bottom drawer outer size | 405440235 mm |
| Large bottom drawer inner size | 345400225 mm |
| Drawer Handles | Material & Function | ABS detachable handles, color-coded medicine management, customizable colors |
| Caster & Locking | Casters | Four silent anti-winding casters, Φ125 mm, imported Desheng brand |
| Central Lock | Installed on the right side, easy & safe operation |
