FY-LED6+4 Double Dome Ceiling-mounted LED Surgical Light

FY-LED6+4

*R9 Red Light 4steps adjustable

*R11 Green Light 4steps adjustable

*360 no limination rotate

*Smart Touch control

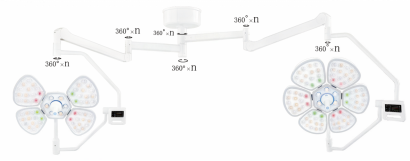

Dual-head intelligent touch control shadowless operating lamp (Main head FY-LED6 + Auxiliary head FY-LED4) for complex major surgeries

Key Features

Dual lamp head configuration (6+4 combination): large main lamp + auxiliary lamp, satisfies full-field multi-position surgical lighting
Smart touch screen centralized control for brightness, color temperature and spectrum adjustment
R9 red light & R11 green light each with 4-level adjustable brightness, outstanding tissue/blood vessel color restoration, Ra＞97
360° unlimited free rotation for both lamp heads, flexible positioning to eliminate surgical shadow
Ultra-slim ABS lamp housing, thickness ≤9.5cm, lightweight & easy to sanitize
Manual focus via central rotating handle, focus range 120~300mm
Ultra-low operative field temperature rise＜1℃, cold light source avoids wound scalding & dehydration
Wide adjustable brightness & color temperature to match various clinical operation scenarios

Parameter	Specification
Model	FY-LED6+4 Double Dome, Ceiling-mounted, Touch Control
Structure	Main head FY-LED6 + Auxiliary head FY-LED4
Control Mode	Smart Touch Screen
Lamp Head Material	ABS
Single Head Thickness	≤9.5cm
Single Head Diameter	720mm
Main Head LED Quantity	90pcs
Special Spectrum	R9 Red Light 4-Step Adjustable; R11 Green Light 4-Step Adjustable
Lamp Head Rotation	360° Unlimited Rotation
Brightness	40,000-160,000Lux, adjustable
Focus Range	120~300mm, manually adjustable
Color Temperature	3700K ~ 5000K, adjustable
Ra Index	＞97
Lighting Depth	500-1800mm
Field Temperature Rise	＜1℃
Main Head Power	65W
Power Input	AC100-240V 50/60HZ, switching power supply
LED Lifespan	≥80,000hrs
Warranty	2 Years
