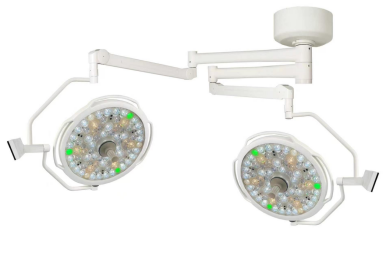

FY-PROLED700+700 Ceiling-mounted Double-dome Shadowless Lamp for Operating Room

FY-PROLED700+700 Ceiling

*Automatic Shadow Compensation

*Triplet Lens Unit

*Handle control

FY-PROLED700+700 Ceiling-mounted LED Surgical Shadowless Lamp

Auto shadow elimination + professional triplet composite lens optical system, outstanding deep cavity surgical illumination
Adopts imported German Osram LED chips, long service lifespan & stable luminous performance
Dual control: detachable sterile operating handle, optional extra touch control ring
10-level brightness / 5-level color temperature step regulation, adaptable for multiple surgery types
Ultrahigh color rendering Ra≥98, R9/R13/R15≥98 for true organic tissue color restoration
Super low lamp head surface temperature rise＜0.5℃, cold light avoids operative wound dehydration

Item	Parameter
Model	FY-PROLED700+700, Ceiling-mounted
Lamp Head Diameter	700mm(Main);700mm(Auxiliary)
Light Source	Germany Osram imported LED, service life ≥60,000hrs
LED Quantity	81pcs per lamp head
Optical Configuration	Triplet lens unit
Illuminance	40,000~160,000Lux, 10-step adjustable
Focus Range	120~350mm (adjust by handle / touch control)
Color Temperature	3000K~5000K, 5-step adjustable
Color Rendering	Ra≥98; R9/R13/R15≥98
Effective Lighting Depth(L1+L2)	≥1500mm
Surface Temp Rise of Lamp Head	＜0.5℃
Rated Power Consumption	100VA / each head
Input Power	AC100-240V 50/60Hz, built-in switching power supply
Control Mode	Detachable central handle; optional extra touch control ring
Arm Working Reach	800+900mm
Warranty	2 Years
