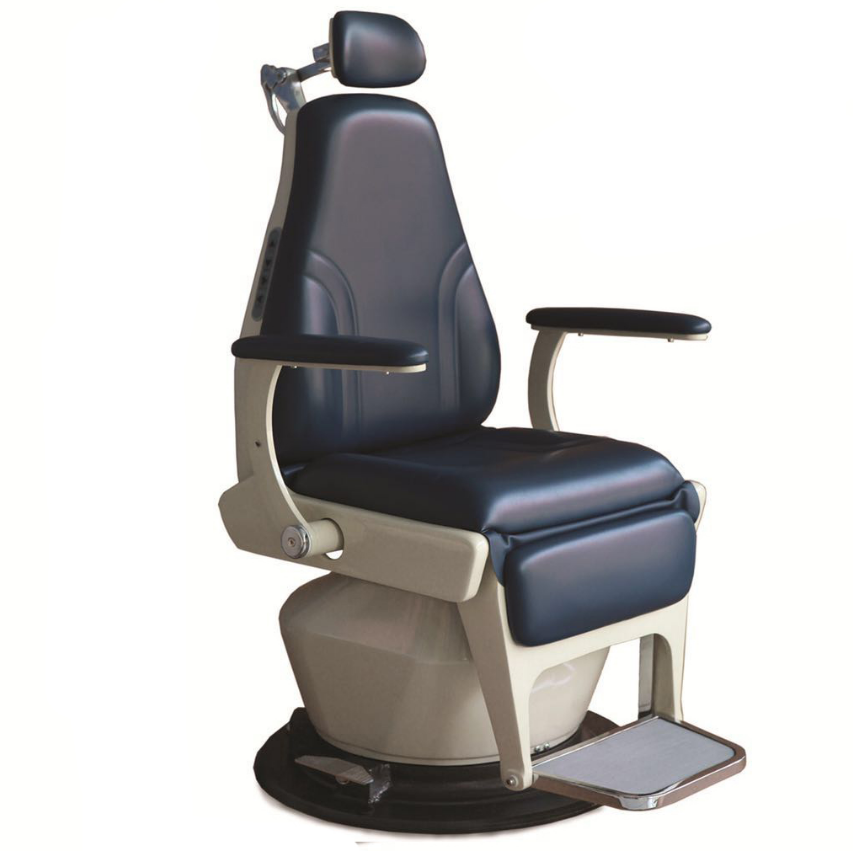

Technical Specifications
| Dimension: | 765*635mm |
| Manual rotation Angle: | 340° |
| Electric backrest adjustment : | +10° / -85° |
Electric height adjustment: | 200mm(530-730mm) |
| The head frame parts through the handle control can be up and down, before and after by handle |
| Load: | 135kg |
Product Features
Manual rotation Angle: 340°
electric backrest adjustment : +10° / -85°
electric height adjustment: 200㎜
the head frame parts through the handle control can be up and down, before and after by handle
Load: 135kg
Overall dimension: 820㎜×630㎜×1240/1390㎜
Electric height adjustment:150mm
Push-button, foot switch design, convenient for doctors to operate timely
Left and right handrails can rotate 360°
The seat can rotate 80 degrees to the left and right respectively
The back of the chair can lean forward 10° and lean back 85°
The head frame part can be adjusted up and down by handle
Standard Accessories
No matched accessories listed
Packaging & Shipping Data
Package Measurement：720*720*1310mm, CBM:0.68
Gross weight:141KGS
Net weight:120kg
