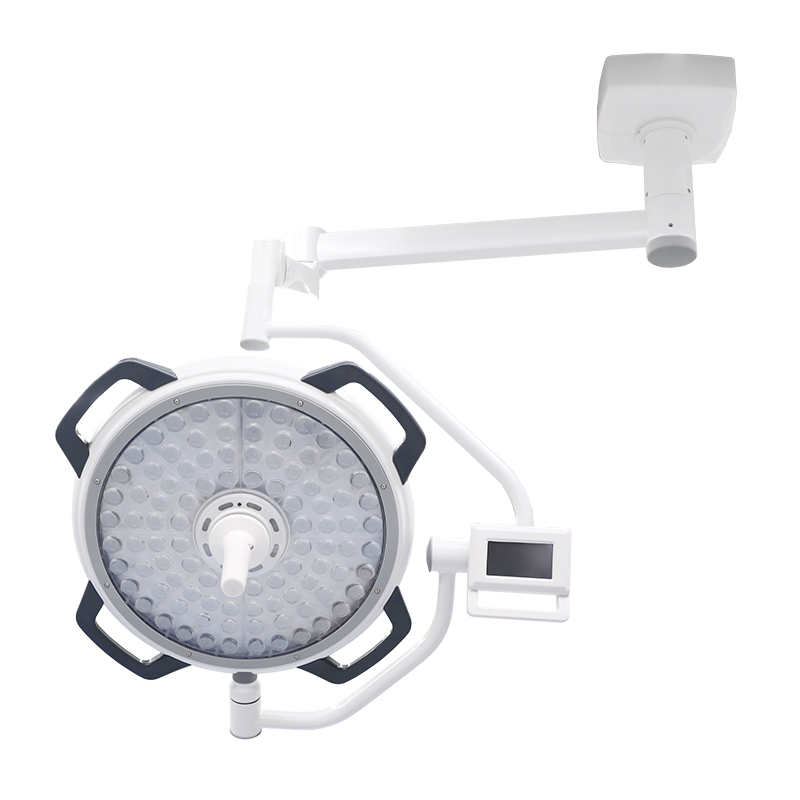

Woosn800C Ultra-Thin LED Surgical Shadowless Lamp
Advanced Illumination for Precision Surgery
Introduction
The Woosn800C LED Surgical Shadowless Lamp is engineered for high-standard modern operating rooms and precision clinical procedures. Adopting premium German Osram LED light source and full-aluminum ultra-thin body design, it delivers superior brightness, industryleading color rendering performance and long-term stable operation, fully meeting the rigorous lighting demands of complex surgery, minimally invasive treatment and cosmetic plastic surgery.
Key Features
LCD Touch Control for intuitive and flexible operation
Ultra-thin full-aluminum lamp head (≤6cm) for broad surgical vision
Central R9 red ring design for professional medical aesthetics
Premium German Osram LED bulbs with lifespan ≥60,000 hours
96pcs high-density LED beads with independent optical lens
20-step adjustable brightness ranging from 40,000 to 160,000 Lux
5-step adjustable color temperature (3800K-5500K) for all-scene adaptation
Top-tier color rendering performance (Ra≥97, R9/R13/R15≥95)
Super deep lighting depth (≥1380mm) for deep cavity surgical clarity
Ultra-low area temperature rise (<0.5℃) to protect human tissue
Technical Specifications
Parameter | Specification |
|---|
Model | Woosn800C |
Control Type | LCD Touch Control |
Lamp Head Housing | Full Aluminum |
Lamp Head Thickness | ≤ 6cm |
Lamp Head Diameter | 500mm |
Light Source | German Osram LED |
LED Bulb Quantity | 96pcs |
Bulb Lifespan | ≥ 60,000 hours |
Brightness Range | 40,000-160,000 Lux (20 steps adjustable) |
Focus Adjustment | 160~350mm (Central Handle Manual Control) |
Color Temperature | 3800K-5500K (5 steps adjustable) |
Color Rendering Index (Ra) | ≥ 97 |
Special CRI (R9/R13/R15) | ≥ 95 |
Lighting Depth (L1+L2) | ≥ 1380mm |
Area Temperature Rise | < 0.5℃ |
Power Consumption | 100W |
Power Input | AC100-240V 50/60Hz |
Arm Reach | 800+900mm |
Warranty | 2 years |
Why Choose Woosn800C?
Ultra-Clear Surgical Visibility: With ultra-high color rendering index Ra≥97 and R9/R13/R15≥95, the lamp accurately restores the true color of human tissues, blood vessels and mucosa, providing precise visual basis for fine and minimally invasive surgery.
Premium Full-Aluminum Durability: Adopting integrated full-aluminum lamp head housing, it features corrosion resistance, high temperature resistance, easy disinfection and cleaning, which fully adapts to strict medical sterile environment and long-term frequent use.
Zero Thermal Damage & Higher Safety: The ultra-low temperature rise design effectively avoids tissue dehydration, wound drying and thermal burn caused by long-time lighting, maximizing protect patient’s surgical safety.
Smart & User-Friendly Operation: High-sensitivity LCD touch panel supports multi-parameter precise adjustment, realizing quick switching of brightness and color temperature without interrupting surgical operation process.
Cost-Effective & Stable Performance: Imported Osram light source with 60,000-hour ultra-long lifespan and low power consumption greatly reduces equipment replacement and daily operation costs for hospitals and clinics.
Full-Scene Adaptability: Flexible manual focus and super-deep lighting depth perfectly meet the lighting needs of routine surgery, deep cavity surgery, cosmetic surgery and outpatient examination.
Application Scenarios: Hospital Operating Rooms | Outpatient Minor Surgery | Cosmetic & Plastic Surgery | Minimally Invasive Surgery | Stomatology & Ophthalmology Fine Diagnosis and Treatment
