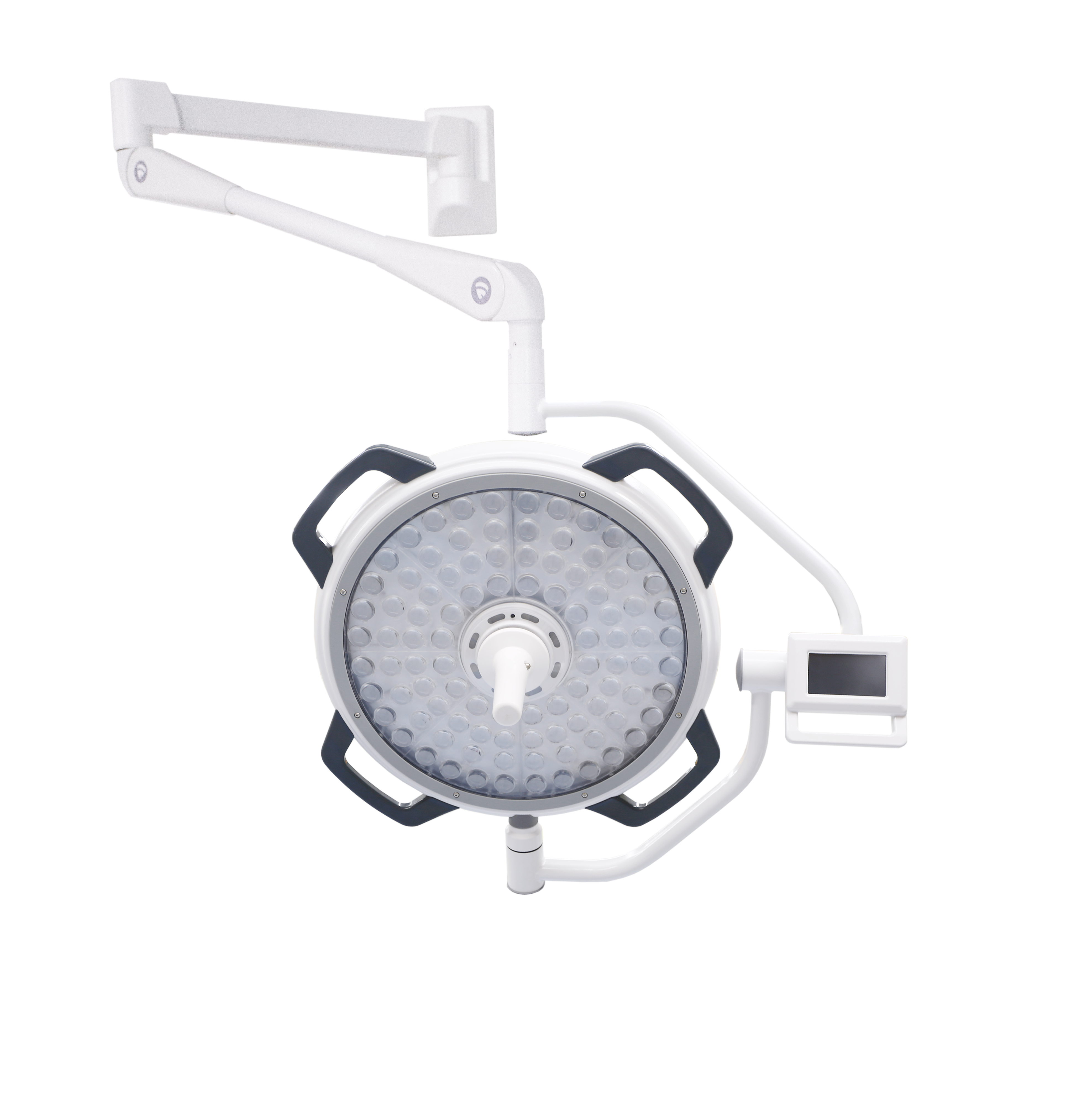

Woosn800W Ultra-Thin LED Surgical Shadowless Lamp
Advanced Illumination for Precision Surgery
The Woosn800W LED Surgical Shadowless Lamp is engineered for high-standard modern operating rooms and precision clinical procedures. Adopting premium German Osram LED light source and full-aluminum ultra-thin body design, it delivers superior brightness, industryleading color rendering performance and long-term stable operation, fully meeting the rigorous lighting demands of complex surgery, minimally invasive treatment and cosmetic plastic surgery.
Key Features
•LCD Touch Control for intuitive and flexible operation
•Ultra-thin full-aluminum lamp head (≤6cm) for broad surgical vision
•Central R9 red ring design for professional medical aesthetics
•Premium German Osram LED bulbs with lifespan ≥60,000 hours
•96pcs high-density LED beads with independent optical lens
•20-step adjustable brightness ranging from 40,000 to 160,000 Lux
•5-step adjustable color temperature (3800K-5500K) for all-scene adaptation
•Top-tier color rendering performance (Ra≥97, R9/R13/R15≥95)
•Super deep lighting depth (≥1380mm) for deep cavity surgical clarity
•Ultra-low area temperature rise (<0.5℃) to protect human tissue

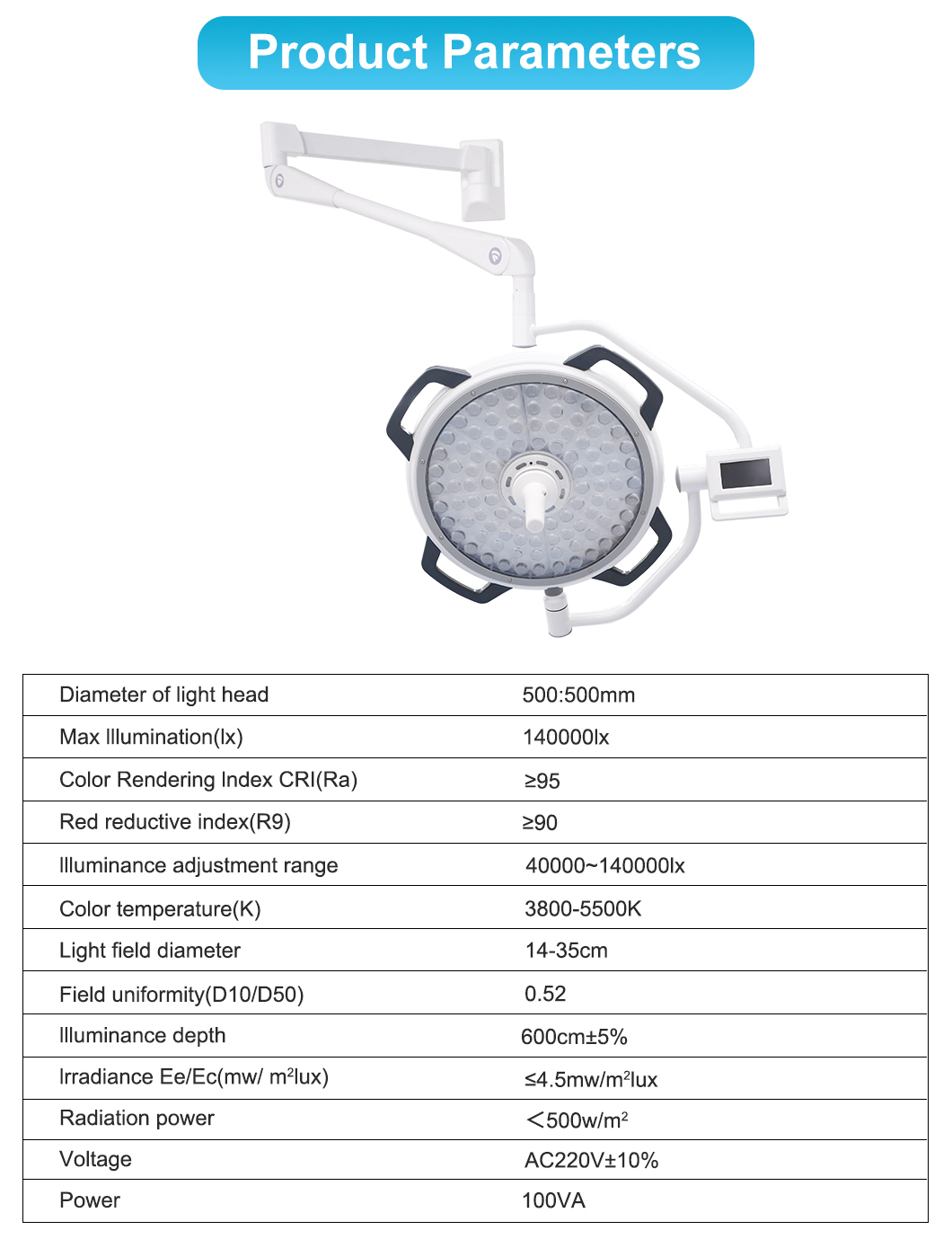

Technical Specifications
| Parameter | Specification |
|---|
| Model | Woosn800W |
| Control Type | LCD Touch Control |
| Lamp Head Housing | Full Aluminum |
| Lamp Head Thickness | ≤ 6cm |
| Lamp Head Diameter | 500mm |
| Light Source | German Osram LED |
| LED Bulb Quantity | 96pcs |
| Bulb Lifespan | ≥ 60,000 hours |
| Brightness Range | 40,000-160,000 Lux (20 steps adjustable) |
| Focus Adjustment | 160~350mm (Central Handle Manual Control) |
| Color Temperature | 3800K-5500K (5 steps adjustable) |
| Color Rendering Index (Ra) | ≥ 97 |
| Special CRI (R9/R13/R15) | ≥ 95 |
| Lighting Depth (L1+L2) | ≥ 1380mm |
| Area Temperature Rise | < 0.5℃ |
| Power Consumption | 100W |
| Power Input | AC100-240V 50/60Hz |
| Arm Reach | 800+900mm |
| Warranty | 2 years |
