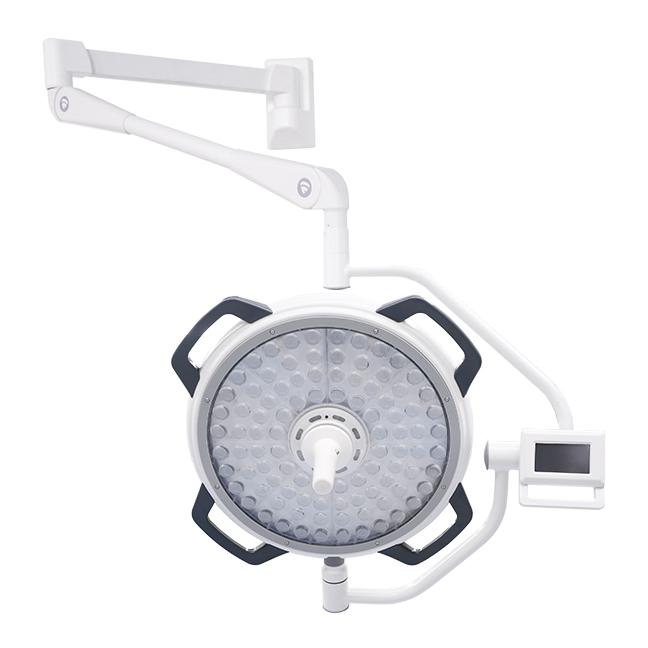

Woosn900W LED Surgical Light
Advanced Ultra-Thin Shadowless Operating Light
The Woosn900C represents the pinnacle of surgical lighting technology, featuring an ultra-thin full aluminum lamp head with LCD touch control. Equipped with 176 German Osram LEDs, it delivers exceptional illumination with superior color rendering and depth penetration for even the most complex surgical procedures.
Key Features
• Ultra-thin lamp head (≤6cm) with full aluminum housing for durability and heat dissipation
• Central R9 RED RING technology for enhanced tissue visualization
• LCD touch control interface for intuitive operation
• 176 German Osram LED bulbs with 60,000+ hours lifespan
• Manual focus adjustment via central handle (160~350mm)
• 5-step adjustable color temperature (3800K~5500K)
• Excellent color rendering (Ra≥97, R9/R13/R15≥95)
• Exceptional lighting depth ≥1380mm with minimal temperature rise
• 2-year comprehensive warranty

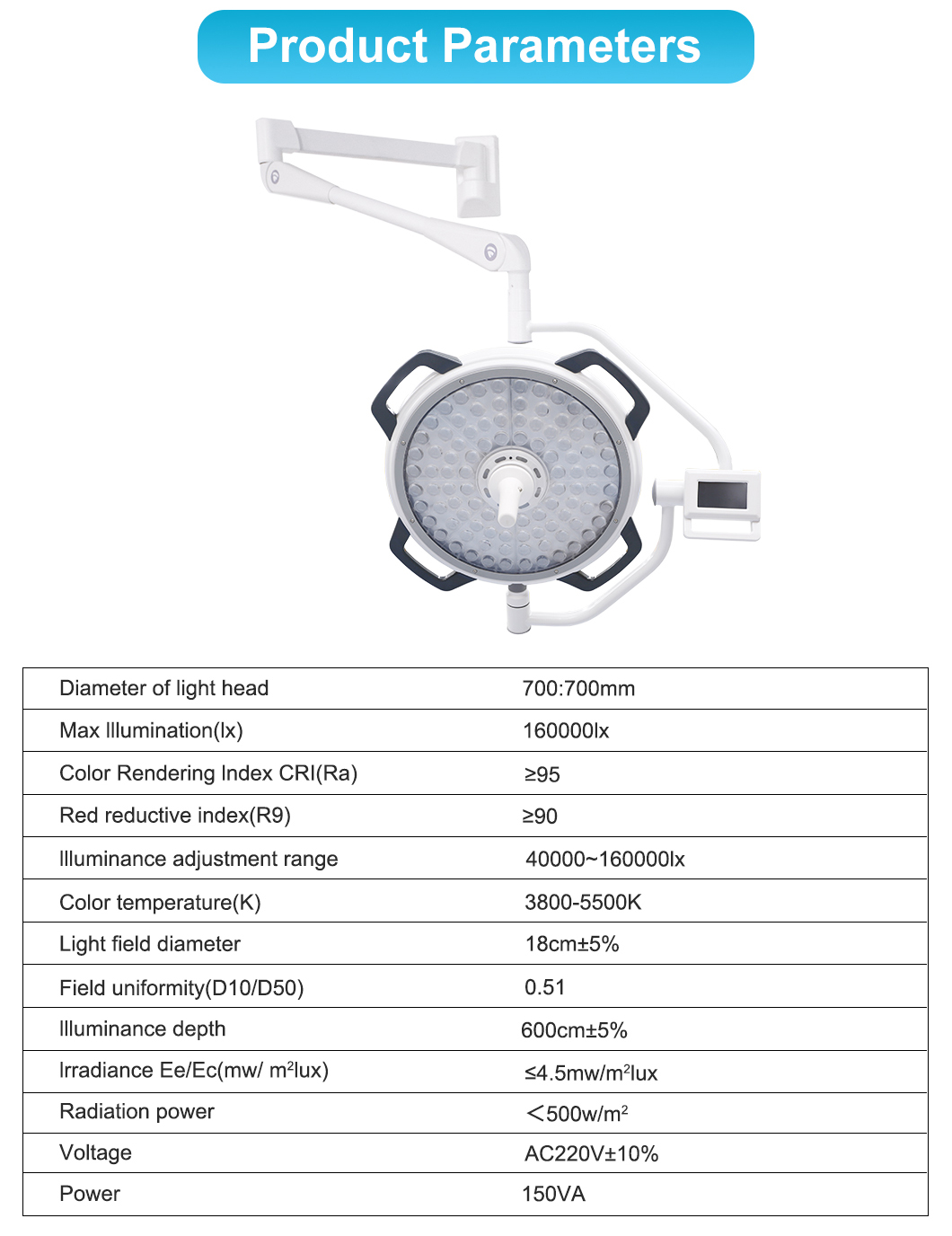

Technical Specifications
| Parameter | Specification |
|---|
| Lamp Head Material | Full Aluminum |
| Lamp Head Thickness | ≤6cm |
| Lamp Head Diameter | 700mm |
| Light Source | German Osram LED, 60,000+ hours |
| LED Bulb Quantity | 176pcs |
| Optical Lens | Over each bulb |
| Brightness | 40,000-160,000Lux (20 steps adjustable) |
| Focus Range | 160~350mm (manual handle adjustment) |
| Color Temperature | 3800K~5500K (5 steps adjustable) |
| Ra Index | ≥97 |
| R9/R13/R15 | ≥95 |
| Lighting Depth (L1+L2) | ≥1380mm |
| Area Temperature Rise | <0.5℃ |
| Power Consumption | 150W |
| Power Input | AC100-240V 50/60Hz, switch power supply |
| Arm Reach | 800+900mm |
| Warranty | 2 years |
