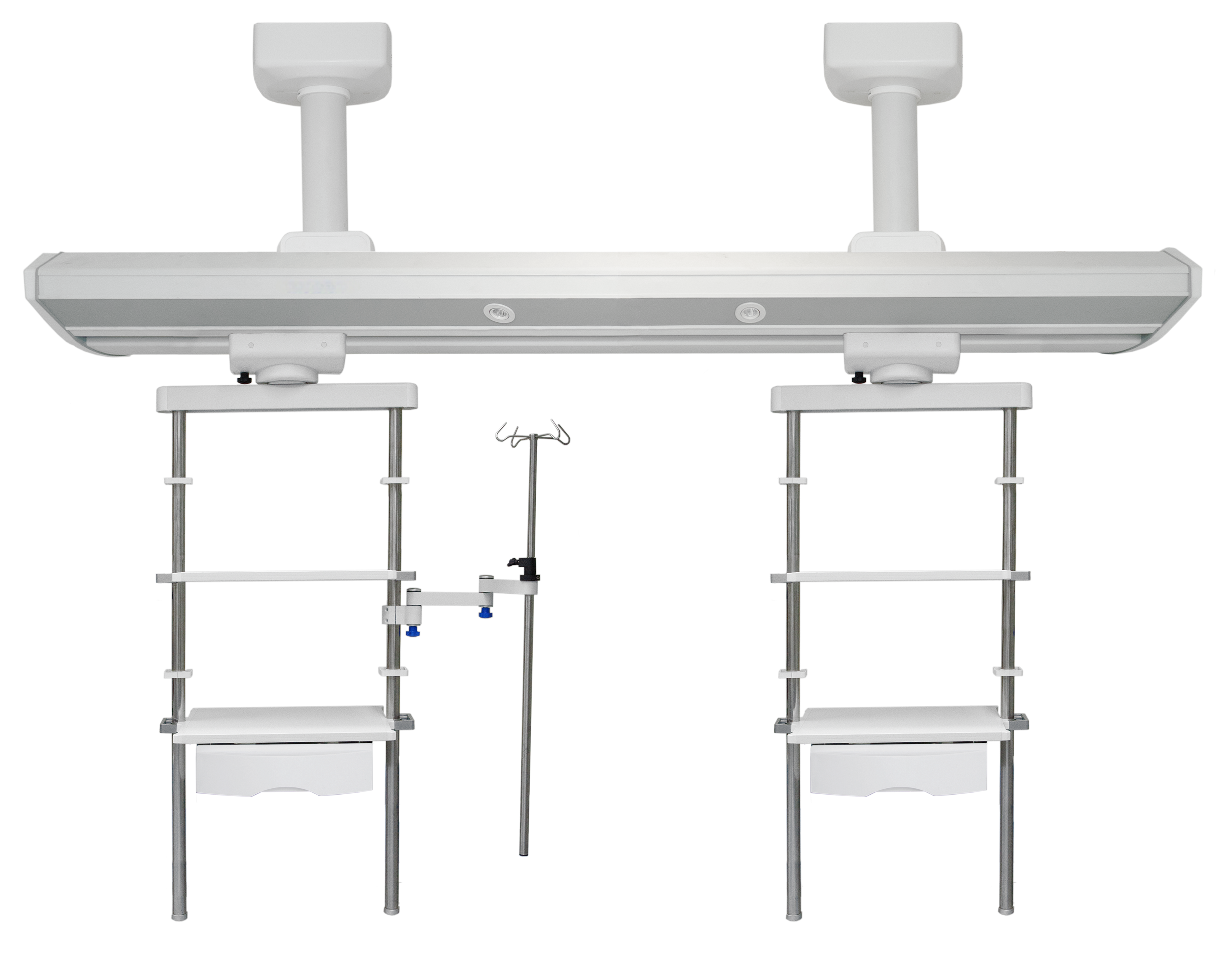

FY-1100CC1 ICU Bridge Type Ceiling-Mounted system,specially designed for intensive care rooms, the entire proocess wards, the recovery room.Supply flexible, first-rank nursing satisty patient's separate treatment and nursing demand.Unique design lies in it all hides the electrical cable and pipeline in the ceiling-mounted arm.

Type:  Mechanical

Cantilever length:  double arm, 800+800mm, customizable

Turning radius:800+800mm

Max load:  270kg

Rotating angle: 340°

Brake: FRICTION

Function column height: 600 -1000mm, customizable

Communication Socket: RJ45(6 types)

Instrument platform: 2 layers， tray height adjustable, load 80kg

Power socket:（optional with GB Class3 general)  220V 50Hz 10A

Gas terminal: VAC*1   O2*2   AIR, customizable

Equipotential ground: equivalent potential port x 2
