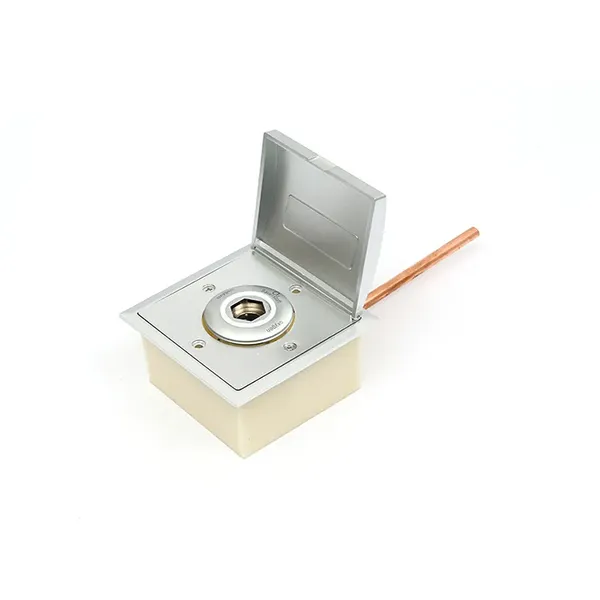

DIN STANDARD  MEDICAL GAS OUTLET

A1-GZD-BOX

1.ISO32 color atandard is applied in distinguishing different colors

2.Designed with valve for the convenience of maintence

3.Each medical gas outlet we supply has passed air tightness test

4.Gernman standard medical gas outlet are manufactured according to EN737-1:1988 atandard and DIN13260-2 standard

5.The sockets in medical gas outlets for different gases are in different shapes so that the supply of gases can not be confused

6.Gas type :O2,VAC,AIR,N2,N2O,CO2

7.Connectedn by pipe

8.The connector of the same size can be exchanged

9.Can be repaired under gas supply

10.Material:Brass

11.Available with box and without box

Description

Meidcal Gas Pipeline System:
German Standard DIN Medical Gas Outlet for ICU Bed Head Unit Box

Specification


Model:A1-GZD-Box
Power source:Manual
Material:Brass,Copper,Stainless steel,ABS
Shelf life:1 year
Type:Medical gas equipments
Install type:Wall mounted
Standard:British standard
Tube diameter:4-6mm 6-8mm 8-10mm
Gas type:O2, AIR, VAC, N2, N2O,CO2 ,AGSS are available
Test:100% Airtightness tested
Color coded:According to ISO color coded
Pipeline connection:adopt ball cap,sleeve, welding , lock tube and so on
Assembly:Universal rough-in
