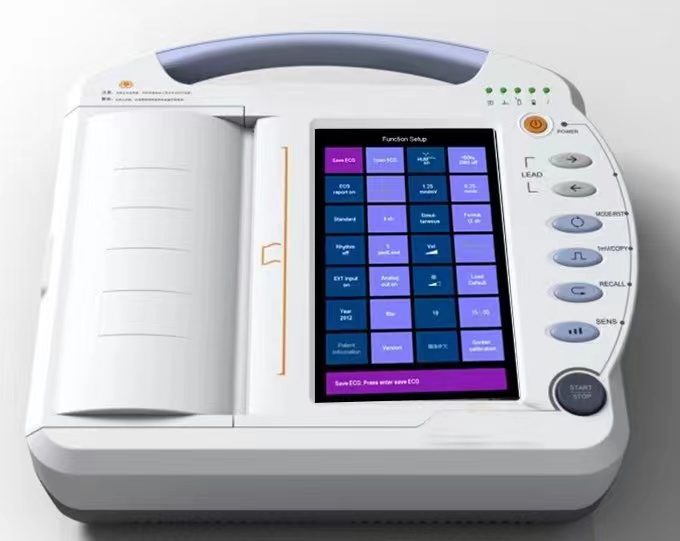

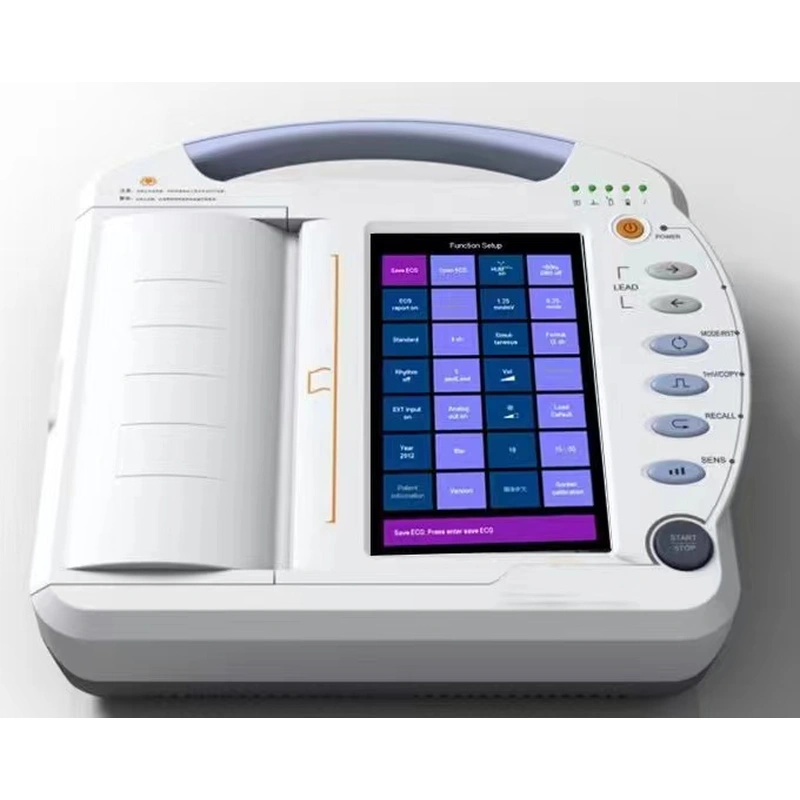

| LCD display | Backlit high resolution 1024 x 600 10 inch touchscreen display12 channel ECG waveform simultaneously, Time, Heart-rate.ectSupport patient name, Age, Sex and Hospital name input (Optional) |
| Safety | IEC, Class I, type CF |
| Leads | 12 STANDARD or CABRERA leads |
| Input circuit | Floating, Defibrillation protection |
| Patient Current Leakage | <10uA |
| Input circuit current | ≤0.1μA |
| CMRR | >100dB |
| Noise Level | ≤15μVp-p |
| Calibration Voltage | 1mV±2% |
| Print Channels | 12 channels, Rhythm lead selectable |
| Printing Output | 3+3 channel; 6 channel; 6+1 channel; 12 channel; 12+1 channel |
| Operation Mode | automatic, manual, single channel 60s compressed record, Rhythm analysis (R-R histogram and trend chart) |
| Thermal paper | 216mm*20M thermal paper in rolls |
| Printing speed | 5; 6.25; 10; 12.5; 25; 50mm/s ± 3% |
| Printing system | Thermal printer; ≥8dot/mm(Vertical), ≥40 dot/mm (Horizontal), printing speed at 25mm/s |
| Recording sensitivity | 1.25、2.5、5、10、20、40mm/mV±2% |
| Input dynamics | ±500 mV |
| Input impedance | ≥50Mohm |
| Power Supply | AC: 220V±10%, 50Hz±2%, 75VADC: 14.8V 4400mA Li-poly rechargeable battery pack |
| Frequency response | 0.05 to 150 Hz |
| Time constant | ≥3.2s |
| Data acquisition | 12 bits; 8000 samples/sec when printing, filtering and computing |
| Fuse Specification | Φ5x20mm 3.15A 250V |
| Patient Cable | standard 10 core |
| Report storage | 200 reports in built-in memory, support external SD cardSupport report presentation, review and re-printing |
| Indicator | Lead-off detection |
| Filter | Muscle filter: (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB)AC filter: (50Hz or 60Hz, -20dB)Drift filter: (0.5Hz,-3dB) |
| Machine weight | 3.9kg |
| Gross weight | 6.4kg |
| Carton size | 444124CM(1pc) |
