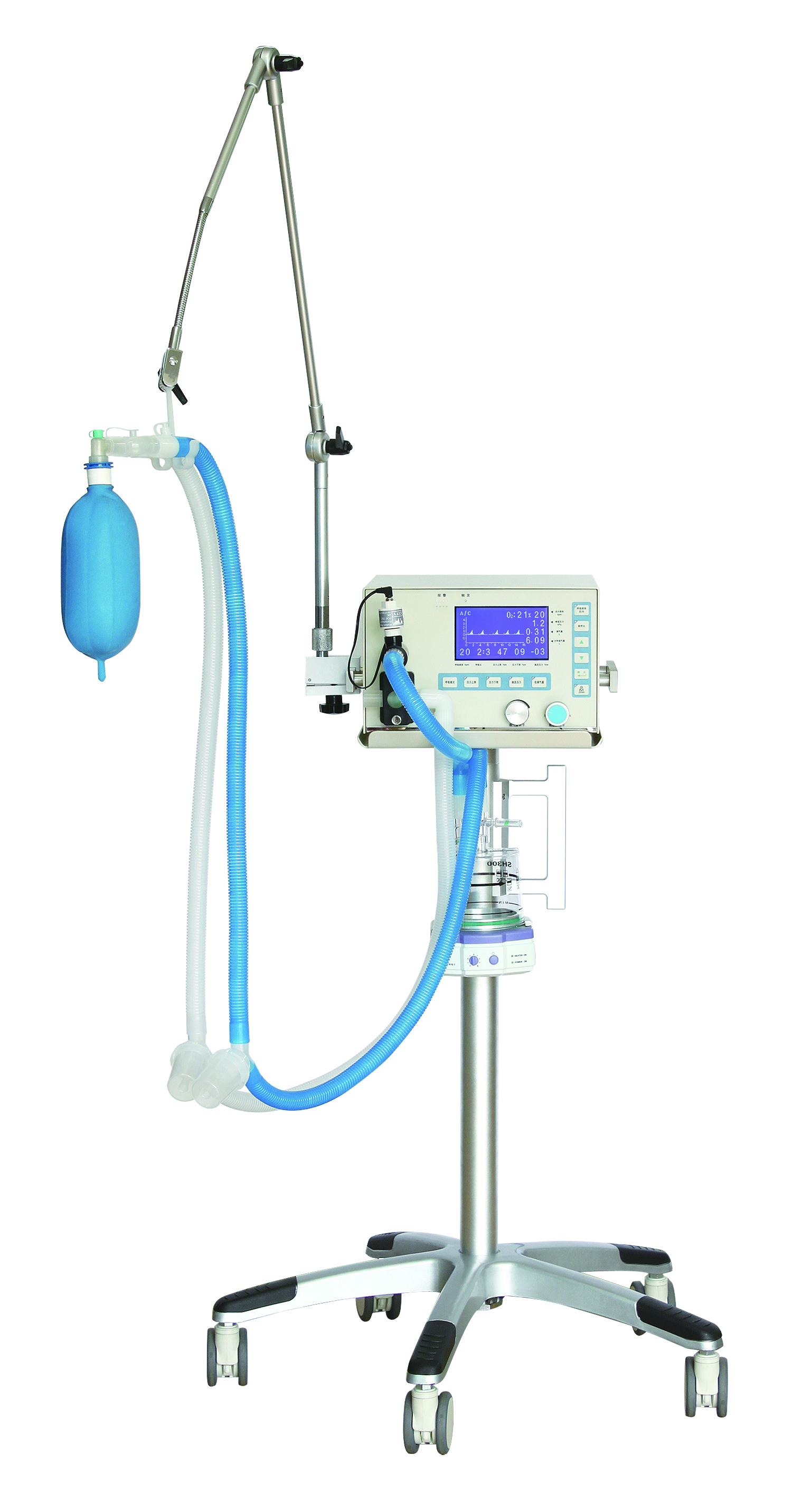

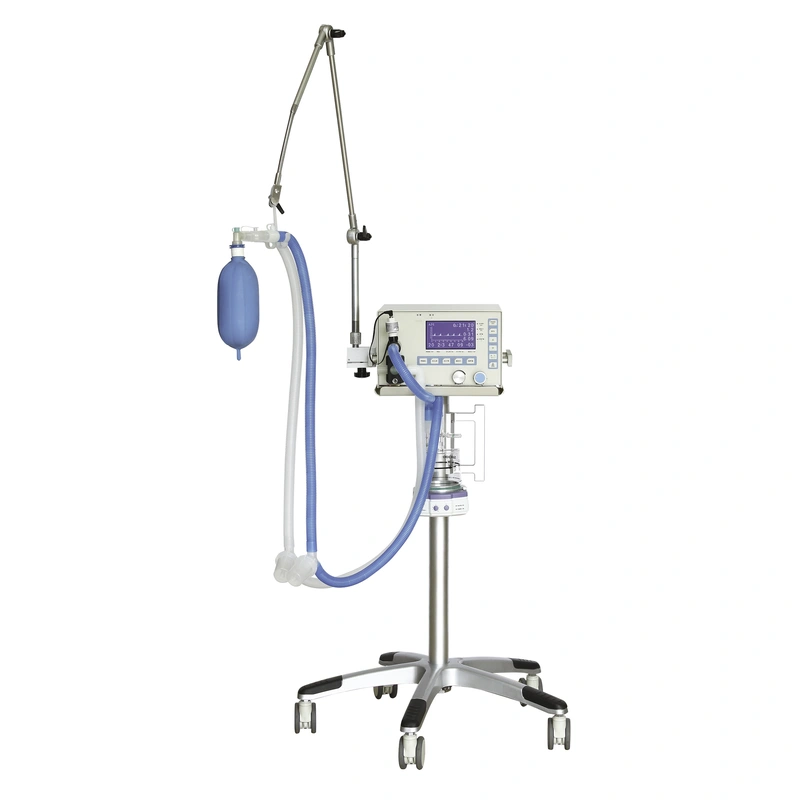

FY-3000B+ ICU Ventilator Machine

Technical Specification

Ventilator main unit

Application: Adult,Pediatric

Driven mode: Pneumatic driven electric control

Working mode: Time switch

Respiratory mode: A/C,A/C+SIGH,SIMV(f/2、f/4),SPONT

Tidal volume:0～1200mL

Frequency:6～60bpm

I/E Ratio: 2:1,1:1,2:3,1:2,1:3,1:4,1:5,1:8(totally 8 shifts)

O2 concentration: 21%～100%(continuously adjustable)

Pressure trigger sensitivity:-3～0KPa

High pressure limitation:2～6Kpa

Low pressure limitation:0～2Kpa

PEEP:0～2Kpa(Optional)

Alarm Mute:≤120s

power supply: AC220V±10%,50Hz±1%

Monitor parameter

Tidal volume

Minute volume

Total frequency

Peak airway pressure

O2 concentration

Trigger pressure

Alarming parameter

Low O2

High airway pressure

Low airway pressure

Power failure

Continuous pressure

Apnea

Low tidal volume

High O2 concentration

Gas failure

Humidifier

Temp.control adjustable

Over temp. self protection function
