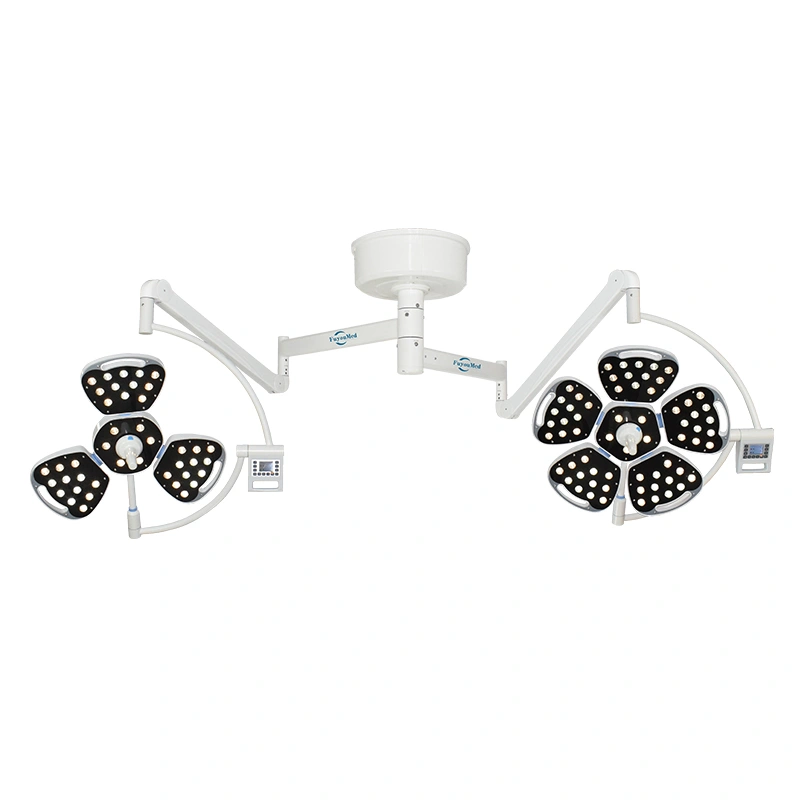

FY-5+3A LED Surgical Light
5-Petal Main Head + 3-Petal Auxiliary Head Ceiling-mounted Shadowless Operating Lamp
Key Features
• Dual focustable-petal lamp head (5-petal main + 3-petal auxiliary)• Independent adjusting grip equipped on every single petal• Upgraded optimized lamp control system for stable operation• Manual focusing adjustment via central sterile handle• Cool LED cold light source, low heat emission, surface temperature rise＜1℃• High color rendering Ra 85~97, restore real tissue color accurately• Ultra-thin ABS lamp housing ≤10cm, good laminar airflow performance• Long service lifespan ≥80,000 hours for LED chips• Ceiling suspended installation for operating room use
Technical Specification
| Parameter | Details |
|---|
| Lamp Head Structure | 5-petal main head + 3-petal auxiliary head |
| Shell Material | ABS |
| Lamp Head Thickness | ≤10cm |
| Lamp Head Diameter | 720mm (main) / 720mm (auxiliary) |
| Horizontal Arm Reach | 800+900+720mm |
| LED Quantity | 65pcs (main lamp); 42pcs (auxiliary lamp) |
| Power Consumption | 65W (main); 42W (auxiliary) |
| Brightness | 40,000–160,000Lux, stepless adjustable |
| Focus Range | 120~300mm, manually tuned by central handle |
| Color Temperature | 3700K～5000K, adjustable |
| Ra Index | 85～97 |
| Effective Lighting Depth | 500–1800mm |
| Local Temperature Rise | ＜1℃ |
| Input Voltage | AC100-240V 50/60HZ |

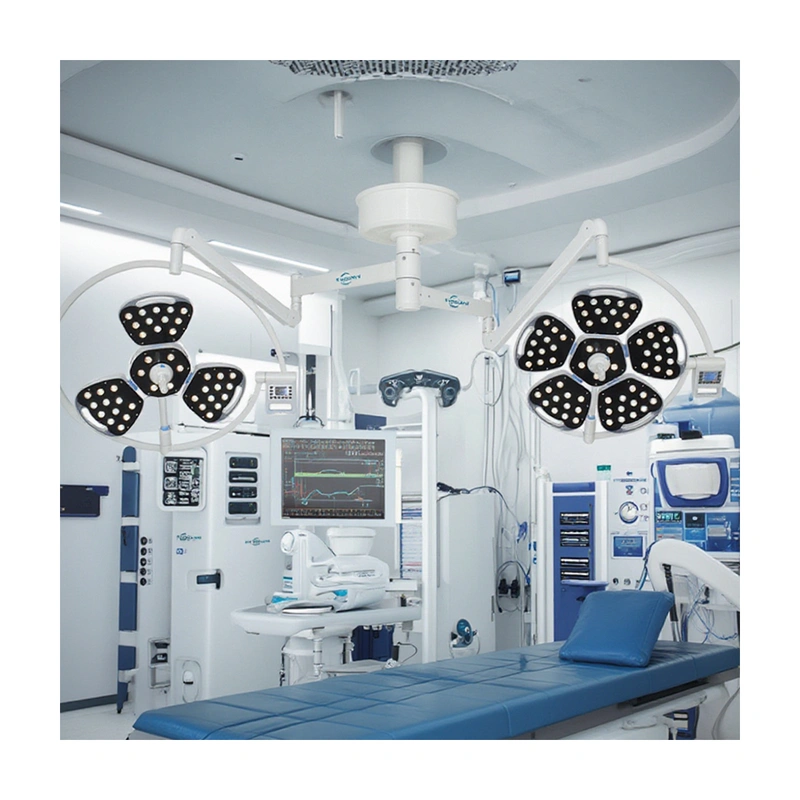

| Installation Type | Ceiling-mounted |
| Warranty | 2 Years |
