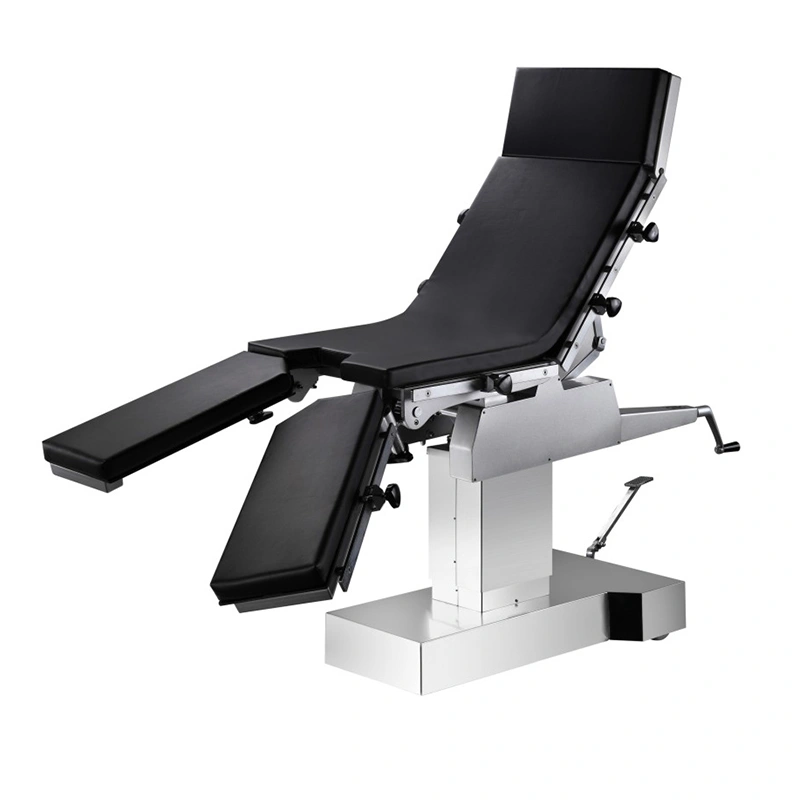

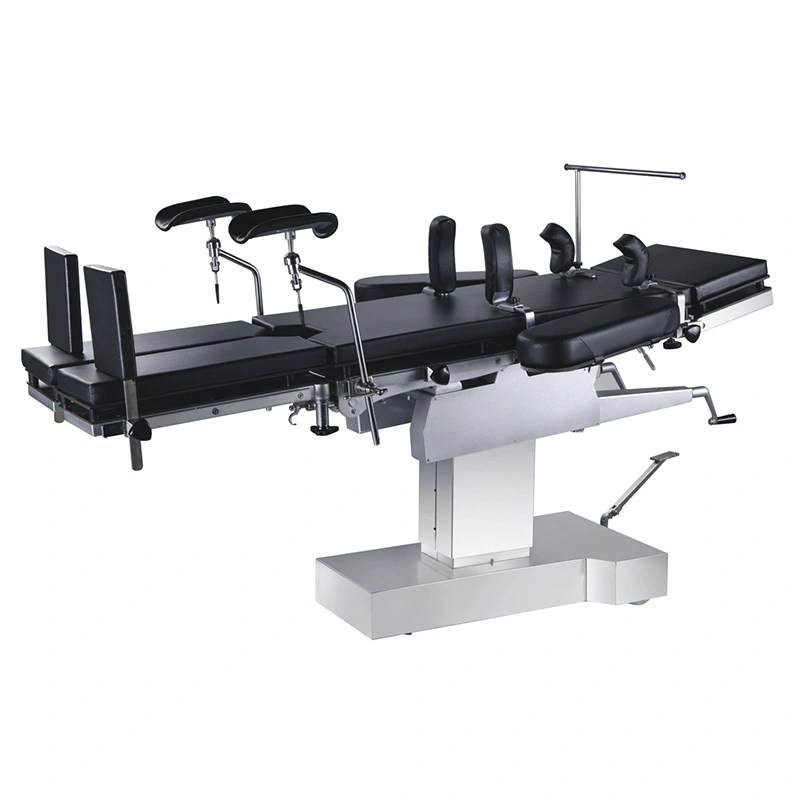

FY300 Manual Hydraulic Operating Table

Manual Hydraulic Operating Table

FY300 is widely used in chest. Abdominal surgery,ENT,gynaecology and obstetrics,urology and orthopedics etc.Hydraulic lift by foot pedal, head operated movements.The base and column cover all made by premium 304 stainless steel.Tabletop is made of composite laminate for X-ray,makes a high definition image.

Description

FY300 Product Parameters:

1. Table length/width:≥2010/≥500mm
2. Table top minimum/lifting stroke:≤760/≥250mm
3. Table tilt forward/bakward angle:≥22°/≥22°
4. Table tilt left/right angle:≥20°/≥20°
5. Head plate folding up/down angle:≥60°/≥70°
6. Leg board folding up/leg board folding down/external folding angle:≥15°/≥85°/≥90°
7. Fold back up/fold back down:≥75°/≥15°
8. Waist bridge lift:≥120mm(选配)
