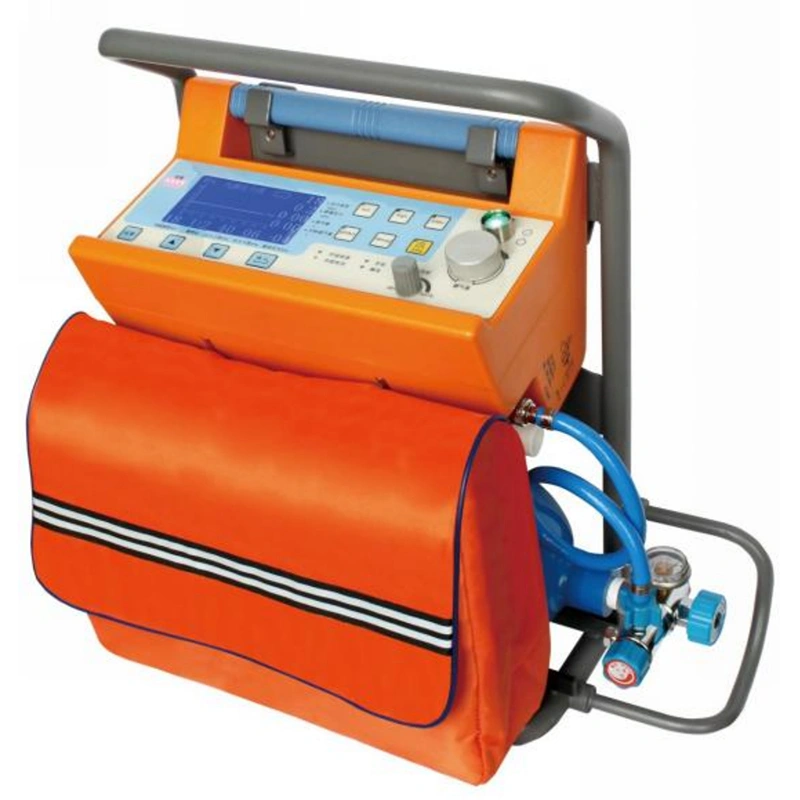

Technical SpecificationVentilator main unit
5”TFT High resolution LCD screen
Application:adult,Pediatric(Not for Neonate)
Driven mode: Pneumatic driven electric control
Tidal volume:20~1500ml
Frequency: 3~70bpm
I/E Ratio: 2:1,1:1,2:3,1:2,1:3,1:4(totally 6 shifts)
Trigger pressure: -2~0KPa
Alarm mute: ≤120s
Press high limitation: 2~6Kpa
Press low limitation: 0~2Kpa
PEEP: 0.5~2KPa(Optional)
Oxygen concentration: 48%~100%(Optional 21%~100%)
Ventilation mode: Manual、A/C、SIGH、SIMV、SPONT、CPAP(Optional)
Power supply: AC220V±10%,50Hz±1%
