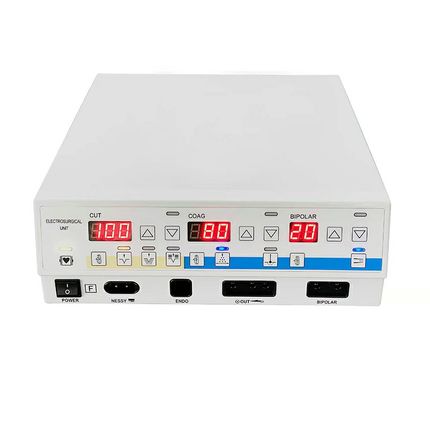

Electrosurgical Unit

FY350A

Aplication:

Applicable for general surgery, thoracic surgery,orthopedics,obstetrics and gynecology,urologic surgery,cerebral surgery, microsurgery, ENT surgery and etc.


Description

Technical Parameters:

a) Ambient temp.range: 5°℃40 ℃;                b) Relative Humidity Range: ≤80;

c) Atmospheric Pressure Range: 86.0106.0kpa       d)Power:110~220V±22V,50Hz/60Hz±1;

e) Operating Freq:330600kHz;                    f) Rated Power: 1100VA±10%;

g) Type: CF

Power Consumption:≤1100VA(Cut function 400W



Six output mode:

a) Cut:   400WLoad 500Ω           b) Blend 1:  250WLoad 500Ω

c) Blend 2: 200W Load 500Ω           d) Spray Coag 120W Load 500Ω

e)Contact Coag∶ 80W Load 500Ω            f) Standard bipolar Coag.70W(Load 100Ω)

Power:110~220V±22V,50Hz/60Hz±1;



Cut: Pure cut, can make easy operation for any organic,the effec is refine cut,no escharosis on the surface.

Blend 1: The effect is cut with coagulation.

Blend 2: The effect is offering a better coagulation during cut.

Spray Coag.: Called spray electrocoagulation,offrs effective non-contact coagulation, Can use this function together with Argon.

Contact Coag.: Called soft electrocoagulation, or called Point coagulation, small ffect area,for a deep coagulation layerfor organic. Can use this function together with Endoscope;

Standrad Bipolar Coag.: Called rapid Bipolar coagulation, to provide coagulation function rapidly at boot, which can reduce mis-operation rate during operation.



Transportation and Storage:

a) Ambient Temp. Range: -40 ℃ 55 ℃;

b) Relative Humidity: ≤95%;

c) Atmospheric Pressure: 500hpa 1060hpa;

Product Size: 365*330*125mm (LxWxH)

Weight: N.W.8 KG, G.W.10KG Packing

packing size: 46*42*30 cm



Standard Configuration

a) Main unit                 1 pc

b) Double footswith:                   1 pc

c) Hand switch:                       2 pc

d)Electrode plate(Disposable)            2pc

e) Electrode plate cable:                   1 pc

f)Bipolar frceps:                 1 pc

g) Bipolar forceps cable:                  1 pc

h) Power cable:                      1 pc

i) User's manual:                      1 pc

j) Packin List:                  1 pc
